Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop

Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop

    • Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop
    • Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop
    • Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop
    • Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop
    • Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop
  • Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop

    Product Details:

    Place of Origin: dongguan
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: DH-600K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD499-USD1299
    Packaging Details: 42 X 16 X 32cm
    Delivery Time: 2 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
    Supply Ability: 300 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Power Supply: Default As European Standard AC 100V - 240V OEM Service: Yes
    Density Resolution: 0.001 G/cm3 Weight Resolution: 0.005g
    Maximum Weight: 600g Interface: RS-232
    Usage: Gold Testing Machine Measuring Mode: Gold,silver,platinum
    Water Temperature Compensation: Yes After-sale Service Provided: Yes

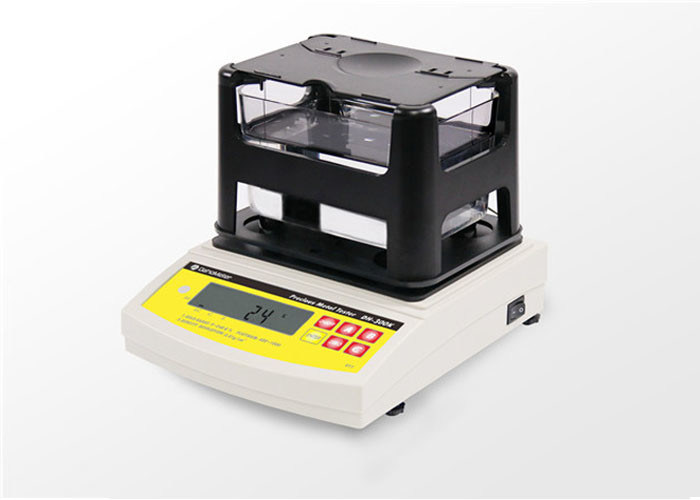

    600g DahoMeter Digital Electronic Portable Gold Tester,Jewellery Purity Tester,Precious Metal Purity Balance





    Application:



    pawn broking, bank, jewelry shop, precious-metals recovery, jewelry factory, Gemstone Testing Center,precious metals researching.etc.



    In accordance with archimedes principle water buoyancy method, GB/T1423 of precious metals testing standard,and so on.



    Combine archimedes principle with micro electronic technique;adopt sensor imported from Germany,the purity can be calculated through measuring density of precious metals.features of no damage on sample;simple operation,fast and accurate.



    K value of gold,PT value of platinum,density value,purity percentage can be measured.





    Specifications:



    Model:DH-600K

    Density resolution:0.001g/cm3

    Weight resolution:0.005g

    Maximum weight:600g

    Necessary weight for density:4g





    Features:



    • Quickly measure the purity of gold,platinum,and other precious metals.Distinguish if the object is fake or genuine.
    • No damage testing, cleaning and environmental protection.
    • Measuring just need 10 seconds,convenience,stabilization,and accuracy.
    • Multi-mode,gold mode,platinum mode,other precious metals mode can be shifted..
    • Multi-function;the purity of other precious metals can be measured.such as tin,copper,silver.etc.also it can be used as precision balance.
    • Function of top and bottom limitation,it can display OK,HI,LO in the state of
    • qualified,exceed,less.Prompt alarm.
    • Function of automatic zero tracking,buzzer warning,and overload warning.
    • Function of solution compensation.Either water or other liquids can be used as medium.
    • Adopt the completed high-capacity measuring accessories with the transparent injection mould tank,which can resist wear,fall off,and corrosion.
    • Adopt the completed special wind and dust cover,which makes the structure convenient and durable.
    • Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with machine



    Measurement Procedure:



    a)Place sample on testing board to measure weight in air,press ENTER key to memory.

    b)Place sample into water to measure the weight in water,press ENTER key.the K value of gold,purity percent,density value will be displayed.





    Standard accessories:



    Portable Jewellery Purity Tester / Precious Metal Testing Equipment For Jewelry Shop



    Model DH-300K DH-600K DH-900K DH-1200K DA-300K DA-600K DA-900K DA-1200K

    DE-

    120K

    DE-200K
    Maximum weight 300g 600g 900g 1200g 300g 600g 900g 1200g 120g 200g
    Weight resolution 0.005g 0.005g 0.01g 0.01g 0.005g 0.005g 0.01g 0.01g 0.001g 0.001g
    Density resolution 0.001g/cm3
    Measuring time 10S
    Testing board Completed high-capacity plastic testing board
    Measuring type Traditional gold and platinum jewelry,necklace,bracelet,ring,large bullion,craft,and gold,silver,copper,cadmium,nickel,tin.etc.









    Gold mode



    Display k value

    The K value of mixture of gold,silver,and copper;

    The K value of mixture of gold and copper;

    The K value of mixture of gold and silver;



    Display purity percent

    The purity percentage of mixture of gold,silver and copper; ;

    The purity percentage of mixture of gold and copper;

    The purity percentage of mixture of gold and silver;

    K value range 9K~24K
    Copper and silver proportion setting Cycle seting(default 7:3)

    Platinum

    Mode

    Display value PT percent,density value,volume
    PT value range Pt600 - Pt1000
    Other Precious Metals Function Only for DA series and DE series:measure the purity percentage of main materials in two kinds of mixture
    Display value Only for DA series and DE series:density value,volume,content precentage
    setting Only for DA series and DE series:density value of main materials and secondary materials setting
    Measuring container

    completed injection forming transparent professional measuring tank

    (size:length16.9mm×wide9.8mm×high8.3mm)

    Parameter setting water temperature setting,measuring medium density setting
    principle Archimedes principle
    Memory method Two procedures
    Correction method Auto calibration with one key,auto detection.
    Output method Output and print testing data conveniently with standard communication interface of RS-232C.
    Standard accessories Host,tank,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer
    wind and dust cover Adopt the unicase dedicated wind and dust cover
    Option accessories DE-40 printer
    power AC 100V – 240V(Europe standard)
    Main features Simple operation,digital display,accurate measuring,stable,durable.



    Our Advantages:


    DH-300K details NEW
