Industrialized Housing Surface Finish Tester Automatically Ultrasonic

Industrialized Housing Surface Finish Tester Automatically Ultrasonic

    • Industrialized Housing Surface Finish Tester Automatically Ultrasonic
    • Industrialized Housing Surface Finish Tester Automatically Ultrasonic
    • Industrialized Housing Surface Finish Tester Automatically Ultrasonic
    • Industrialized Housing Surface Finish Tester Automatically Ultrasonic
  • Industrialized Housing Surface Finish Tester Automatically Ultrasonic

    Product Details:

    Place of Origin: dongguan
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: KH-520

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD499-USD1299
    Packaging Details: 25x22x7cm;1.5kg for Portable Hardness Testing of Metal,Pen Type Hardness Tester
    Delivery Time: Shipped in 5 days after payment
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
    Supply Ability: 300 Acre/Acres per Month
    Contact Now
    Detailed Product Description
    Application: Digital Portable Leeb Hardness Tester Testing Before Delivery: Yes
    After-sale Customer Service: Yes Calibration Function: Yes
    USB Port: Yes Auto Power Off: Yes

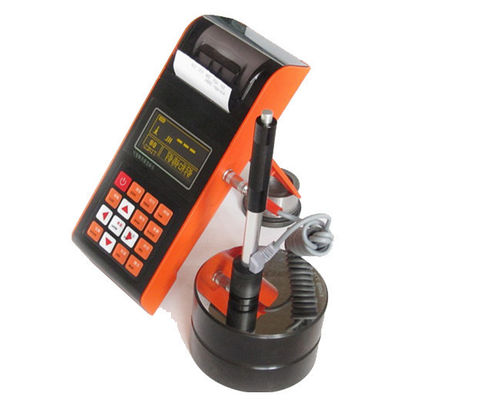

    Digital Portable Leeb Hardness Tester / Testing Machine / Instrument / Device / Apparatus





    Product Application:



    It is suitable for Steel and cast steel, alloy steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloy (brass), copper alloy (bronze), tin pure copper, forging steel etc.





    Main Features:



    *  Test at any angle, even upside down.

    * User calibration function.

    * Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.

    * Seven impact devices are available for special application. Automatically identify the type of impact devices.

    * Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

    * Battery information indicates the rest capacity of the battery and the charge status.

    * USB port with the PC humanity multi-functions data proceeding software.

    * Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

    * NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).

    * Auto power off to save energy.

    * Industrialized housing design, sturdy, compact, portable, high reliability, suitable for harsh operating environment, vibration, shock and electromagnetic interference.

    * Excellent after-sale service system for high quality products-two years warranty and all life maintenance. Easy to buy and comfortable to use.




    Technical Parameter:







    KH520
    Measuring range HLD (170-960), HRC (17.9-69.5),HB (19-683), HV (80-1042), HS (30.6-102.6), HRA(59.1-88), HRB (13.5-101.7)
    Measuring direction 360°
    Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
    Display Dot matrix LCD, 128×64 dots
    Data memory 100- max 600 groups. (relative to impact times 32~1)
    Printing paper width is (57.5±0.5)mm, diameter is 30mm
    Battery pack 6V NI-MH
    Battery charger 9V/500mA.
    Continuous working period about 200hours (With backlight off, no printing)
    Interface USB2.0





    DahoMeter guarantee:



    1."Quality is our culture".the core accessories is imported from Germany;Certification of CE,FCC;As long as two years' warranty from the date of receipt.
    2."With us your money is safe".full refund in case of bad quality or delay delivery time.Paypal is accepted.
    3."Time is gold" for you and for us,fastest and safest delivery with UPS,DHL,Fedex or TNT.
    4."Service is our soul" we had the honor to serve(TüV SüD,Foxconn,Midea,Gree,Belle,Bao Steel,Gotech);Professional after-sale customer service team to support every customer.
