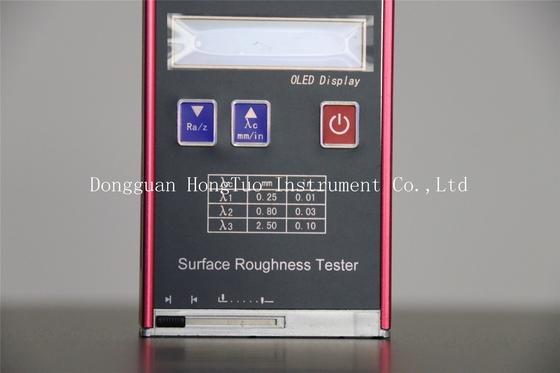

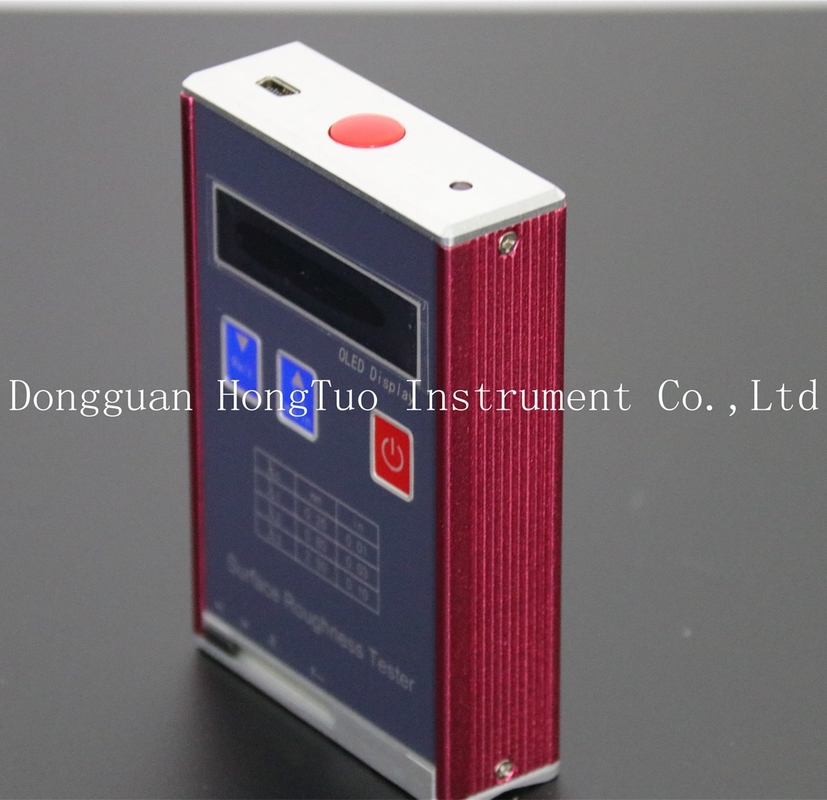

Handy High Accuracy Digital Surface Roughness Meter With CE

Handy High Accuracy Digital Surface Roughness Meter With CE

  • Handy High Accuracy Digital Surface Roughness Meter With CE
  • Handy High Accuracy Digital Surface Roughness Meter With CE
Handy High Accuracy Digital Surface Roughness Meter With CE
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: KR-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard exporting package
Delivery Time: 5 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Name: Handy High Accuracy Digital Surface Roughness Meter With CE Warranty: One Year
Stroke Length: 6mm Indication Accuracy: 0.01μm
Stocks: 22 Sets Surface Roughness Meter In Stocks Power: Rechargeable Li-battery
Working Temperature: -20°C~40°C Size: 106mmx70mmx24mm
Keyword: Surface Roughness Meter,surface Roughness Tester Handy
High Light:

0.01μm Surface Roughness Meter

,

6mm Surface Roughness Meter

Handy High Accuracy Digital Surface Roughness Meter With CE



TECHNICAL DATA



4 Testing Parameters Ra, Rz, Rq, Rt;
Measuring Range Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm
Sample Length 0.25, 0.80, 2.50mm
Evaluation Length 1.25, 4.0, 5.0mm
Stroke Length 6mm
Indication Accuracy 0.01μm
Indication Error ≤(±15)%
Variability <12%
Stylus Static Force: ≤ 0.016N
Force Measuring Rate of Change ≤ 800N/m
Power Rechargeable Li-battery
Relative Humidity <90%
Working Temperature -20°C~40°C
Size 106mmx70mmx24mm
Weight of Host 0.2kg

Handy High Accuracy Digital Surface Roughness Meter With CE 0Handy High Accuracy Digital Surface Roughness Meter With CE 1Handy High Accuracy Digital Surface Roughness Meter With CE 2

MAIN FEATURE

Handy High Accuracy Digital Surface Roughness Meter With CE 3

*Ra, Rz, Rq, Rt 4 testing parameters, suitable for more applications.

*It could test ex-circle, flat surface, conical surface and also test groove larger than 80*30mm;

*Large measuring range suitable for most materials, both metal and non-metallic surface;

*Using high-speed DSP processor for data processing and calculation, quick measurement and computation speed;

*Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly;

*Liquid crystal display wide temperature using OLED display, high brightness, suitable for various occasions;

*The lithium ion rechargeable battery, can work for a long time, no memory effect, long battery life;

* Using a dedicated charger or computer USB port for charging, can work during charging, quick and convenient;

*Real-time monitoring of lithium battery power and display, remind users to charge;

*Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use;

*Support OEM Service;

*Pocket-size & economically price;



STANDARD DELIVERY

Handy High Accuracy Digital Surface Roughness Meter With CE 4

ITEM QTY
KR110 Host 1 PC
Standard Calibration Block 1 PC
Bracket for Calibration Block 1 PC
Power Charger 1 PC
Charging Cable 1 PC
User Manual 1 PC
Instrument Case 1 PC
Warranty 2 Years



Shipping Attention:



1.Please contact us after you place order.



2.Normally orders will be shipped out around 5 working days once payment received. for custom made parts.needs to be negotiated.



3.We Will ship by DHL, FedEx, UPS, EMS( we will choose the best way to ship the items ASAP). You will be updated the tracking number via Aliexpress. Generally, it takes 3-7 delivery days to your shipping address.Please make sure the phone number is valid.



4.Kindly please note the tax fee and clearance fee are not included in the item price. You have to take the responsibility for the tax and clearance fee.
