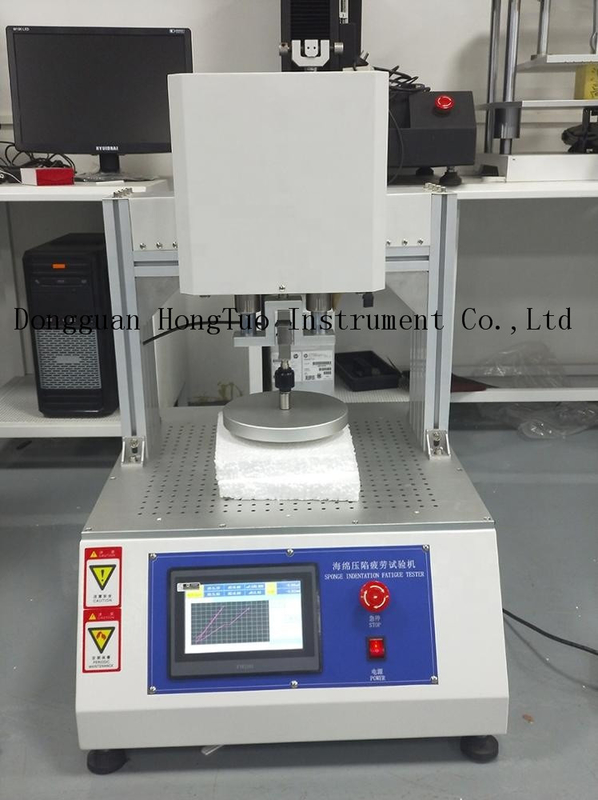

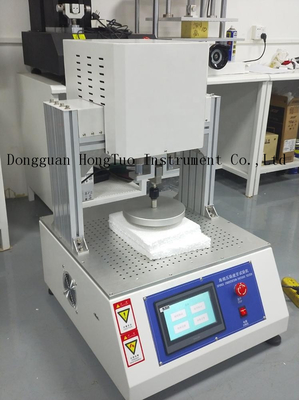

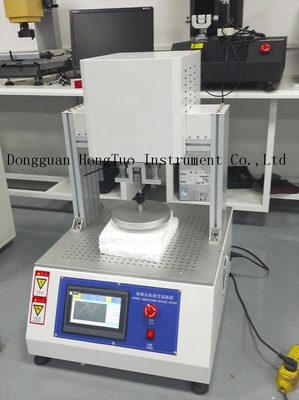

High Precision DH-IH Indentation Hardness Tester Lab Foam Indentation Hardness Tester

High Precision DH-IH Indentation Hardness Tester Lab Foam Indentation Hardness Tester

  • High Precision DH-IH Indentation Hardness Tester Lab Foam Indentation Hardness Tester
  • High Precision DH-IH Indentation Hardness Tester Lab Foam Indentation Hardness Tester
  • High Precision DH-IH Indentation Hardness Tester Lab Foam Indentation Hardness Tester
High Precision DH-IH Indentation Hardness Tester Lab Foam Indentation Hardness Tester
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO
Model Number: DH-IH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Set Per Months
Contact Now
Detailed Product Description
Name: Lab Foam Indentation Hardness Tester Test Sample Dimension(L*W*H)mm:: 100*100*50
MOQ: One Set Power: Electronic, AC220V±10%, 50/60Hz, Single Phase
Sensing Method:: Force Sensor Automatic Dispaly Warranty:: One Year
High Light:

Foam Indentation Hardness Tester

,

Lab Indentation Hardness Tester

High Precision DH-IH Indentation Hardness Tester Lab Foam Indentation Hardness Tester



Application:

This machine is used to measure the concave hardness of porous elastic materials. The polyurethane sponge foam sample can be tested according to the national standard, and the hardness of the sponge, foam and other materials can be accurately measured. It can also be used to measure the specified indentation hardness of the seat foam (such as the backrest, cushion foam, etc.) that has been produced, and accurately measure the indentation hardness of the foam accessories of the seat.



Principle:

Place the sample between the upper and lower platens, and the upper platen compresses the sample of a certain size downward at a predetermined speed to the concavity specified by the A method (B method, C method) required by the national standard. The load cell thereon feeds back the sensed pressure to the controller for processing and displaying, thereby measuring the indentation hardness of materials such as sponges, foams.,etc.



Function and Feature:

1. Automatic clearing: After the computer receives the test start command, the system will automatically do zero clearing.

2. Automatic return: After the sample is broken, it will automatically return to the initial position.

3. Automatic shifting: According to the size of the load, different gear positions can be switched to ensure measurement accuracy.

4. Change speed: This machine can change the test speed arbitrarily according to different samples.

5. Indication verification: The system can achieve accurate calibration of force values.

6. Control method: Test methods such as test force, test speed, displacement and strain can be selected according to the test requirements.

7.A multi-purpose machine: equipped with different specifications of the sensor, can achieve a multi-purpose machine.

8. Curve traversal: After the test is completed, the mouse can be used to find the point-by-point force value and deformation data of the test curve and analyze it.

9. Display: Dynamic display of data and curve test process.

10. Results: The test results are accessible and the data curve is analyzed.

11.Limit: with program control and mechanical limit.

12. Overload: Automatically stops when the load exceeds the rated value.



Technical Parameter:

Sensing method Force sensor automatic dispaly
Load Cell Capacity 300Kg
Motor Servo motor control system
Unit switch Kg,N,Lb
Accuracy 0.5 grade(±0.5%)
Testing stroke 200mm
Test speed 100±20mm/min
Size of upper compressing plate Diameter 200mm
Bottom Border-radius R1mm
Lower platform 420mmx420mm
Air hole diameter 6.0mm
Hole center gap 20mm
Specimen size (380+10)mmx(380+10)mmx(50±3)mm
Power AC220V



Our Services

As leading manufacturer,we guarantee below:


100% Competitive price we are the original manufacturer of densimeter for years, the large scale production make our products more competitive, that’s the reason we are very confident to offer the most possible competitive price for the same level testing instruments in the world.


High quality standards we have the powerful professional researching and technology team to support quality;Our quality has been proved by the good market reaction for years;Our product are built to meet the industrial standards and global standards;Every instrument get checked and approved by our QC before delivery.
Faultless service we have the professional customer service team to provide the one to one service for you;we can help you to enjoy the one-stop service without any worries;we have the completed after-sales service policy and quality insurance policy;we guarantee instruments for one year and life-long maintenance(Gold Purity Tester for two years)


Efficient logistics we have the stable partner to help us to deliver the goods to the any corner of the worldwide shortly.Air shipment;International express:DHL/UPS/FEDEX/TNT(5 days to 7 days)
OEM service We are the original manufacturer of densimeter,that is verified by the third party and Alibaba on site;We can provide you OEM service and print your logo on the instruments.



FAQ



1.Quality Insurance

We guarantee this instrument for one year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster

2.After-sales Service

a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distribute in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646

3.Shipping

Sea shippment
Air shippment
International Express:DHL/UPS/FEDEX/TNT
Train shipment
Road shipment
We ill choose the best way to ship the items ASAP


4.Are we manufacturer made copy product or original product?

We are the original manufacturer for density tester,DahoMeter and Quarrz is our own brand.the model starts with DH,or AU,or KS is belongs to us generally.

5.Why choose us

We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field for almost 13 years.
b.Professional researching and technology team.
c.Customer service team.
