Metal Powder Apparent Density Meter Professional Hall Flow Tester

Metal Powder Apparent Density Meter Professional Hall Flow Tester

  • Metal Powder Apparent Density Meter Professional Hall Flow Tester
  • Metal Powder Apparent Density Meter Professional Hall Flow Tester
  • Metal Powder Apparent Density Meter Professional Hall Flow Tester
Metal Powder Apparent Density Meter Professional Hall Flow Tester
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO
Model Number: DF-1-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7days
Payment Terms: T/T, Western Union
Supply Ability: 2000 Set Per Months
Contact Now
Detailed Product Description
Name: Professional Hall Flow Tester Power Supply:: 220V 50Hz
MOQ: 1 Set Warranty: 1 Year,Life-long Maintenance
Stocks: 95 Sets Hall Flowability Testing Equipment Standard: ASTM B213-13,JISZ 2502,ISO4490,ISO 3923,GB/T1482,GB/T1479
High Light:

ISO4490 Hall Flow Tester

,

ISO 3923 Hall Flow Tester

,

Metal Powder Apparent Density Meter

Metal Powder Apparent Density Meter Professional Hall Flow Tester



In accordance with ASTM B213-13,JISZ 2502,ISO4490,ISO 3923,GB/T1482,GB/T1479,

hall flowability tester has been widely applied to determine flowability and bulk density for metal powder or other powder.Any powder can pass through funnel with 2.5mm standard diameter aperture.it can be tested by using this machine.



Feature:



The product bracket adopts an innovative one-piece structure, and the height of the funnel and the measuring cup is fixed, eliminating the trouble of manual adjustment by the user.

The stand is equipped with a level to make the measurement more accurate.

The funnel is made of brass, which has no magnetic influence. The inner wall is finely polished and has sufficient wall thickness and is not easily deformed.

Metal Powder Apparent Density Meter Professional Hall Flow Tester 0Metal Powder Apparent Density Meter Professional Hall Flow Tester 1Metal Powder Apparent Density Meter Professional Hall Flow Tester 2

Principle:



  • The flowability:

The flowability of metal powder can be indicated as the time needs when 50g metal powder pass through standard funnel with specified aperture.



  • The bulk density:

The powder is freely flowed from a fixed height funnel into a measuring cup of known volume to obtain a powder in a loose state; the mass of the powder is weighed, divided by the volume of the measuring cup,the bulk density ρ = m / v, the unit is g / cm3.

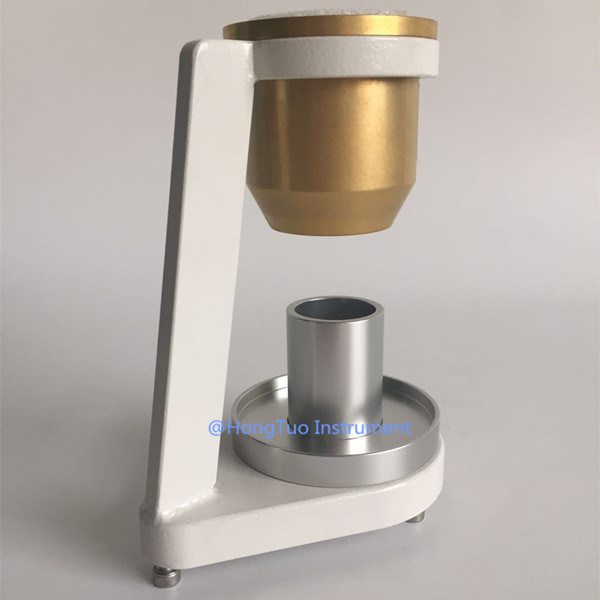

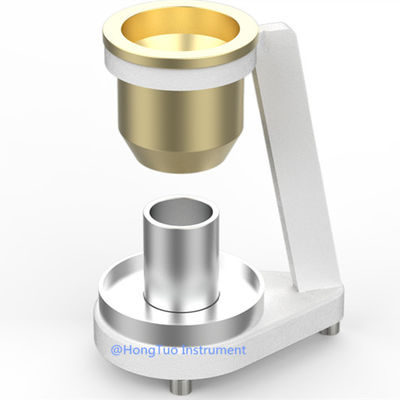

Structure:



(1)Funnel(diameter of aperture 2.5mm,5mm)

The funnel is made up of brass.the inner surface has been polished specially.which makes it very smoothly.Besides,sufficient thickness and hardness can avoid from transformation and excessive wear.

2.5mm aperture for measuring flowability,5.0mm aperture for measuring bulk density.

(2)Holder,base and receiver

Holder is used to fix funnel.Base is used to install holder and receiver.

(3)Digital scale:maximum weight is 1kg.weight resolution is 0.02g.

(4)Chronograph:0.1s

(5)Measuring cup

Φ31mm 25ml brass measuring cup.



FAQ:

1.Quality Insurance

We guarantee this instrument for one year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster

2.After-sales Service

a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distribute in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646

3.Shipping

Sea shippment
Air shippment
International Express:DHL/UPS/FEDEX/TNT
Train shipment
Road shipment
We ill choose the best way to ship the items ASAP


4.Are we manufacturer made copy product or original product?

We are the original manufacturer for density tester,DahoMeter and Quarrz is our own brand.the model starts with DH,or AU,or KS is belongs to us generally.

5.Why choose us

We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field for almost 13 years.
b.Professional researching and technology team.
c.Customer service team.
