Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester

Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester

  • Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester
  • Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester
  • Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester
Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO CE
Model Number: DH-FB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7days
Payment Terms: T/T, D/A, Western Union
Supply Ability: 1000 Set Per Months
Contact Now
Detailed Product Description
Product Name:: Efficient Fall Ball Impact Testing Machine/Equipment Drop Control Method:: DC Electromagnetic Control
Drop Height Range:: 50-1500/2000mm(Minimum Scale 1mm) Power Supply:: 220V/50Hz,
Weight: About 50/80kg Display Method:: Ruler
High Light:

220v ball drop test equipment

,

JIS-K6745 ball drop test equipment

,

A5430 Impact Testing Machine

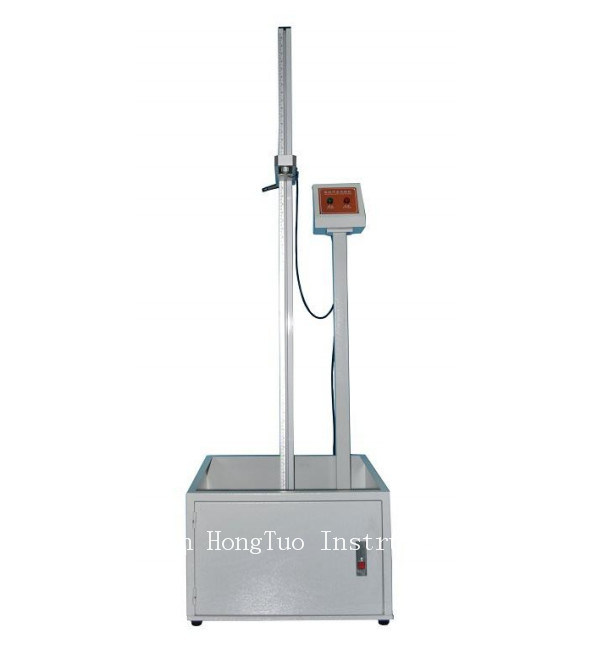

Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester





This machine is suitable for impact strength testing of plastic, ceramic, acrylic, glass, lens, hardware and other materials and test coatings.



This machine adopts DC electromagnetic control method. The steel ball of the required weight is placed under the electromagnetic suction cup, the steel ball is automatically sucked up, pressing the falling key,the steel ball is released by the suction cup. The steel ball will do free fall testing. and impact the surface of the piece. The drop height can be adjusted up and down, a height scale is attached to know the drop height of the product.

Efficient Fall Ball Impact Testing Machine/Equipment Plastic Film Fall Ball Impact Tester 0

Standards:

This device complies with JIS-K6745, A5430 test standard.



Technical Specification:

Item Specification
Drop control method DC electromagnetic control
Display method Ruler
Drop height range 50-1500/2000mm(Minimum scale 1mm)
Steel ball weight

67g,130g,198g,225g,357g,533g

Optional:112.198.225.357.533.1041.2280g

Power supply 220V/50Hz,2A
Overall size 500*500*1700/2100mm
Weight Around 50/80kg







Main configuration

Item Specification Place of Origin and Brand Name
Controller   HongTuo
Electromagnet   HongTuo
Relay   AIKS
Box Paint
Testing stand Aluminum profile jianMei
Material fixing fixture 1 pcs
Power supply 1 pcs
