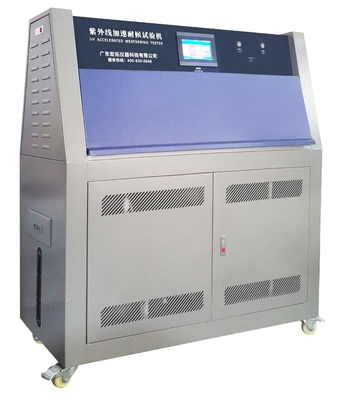

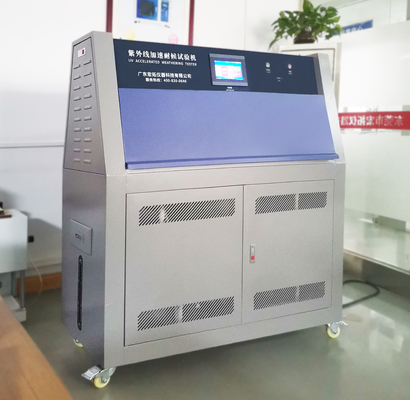

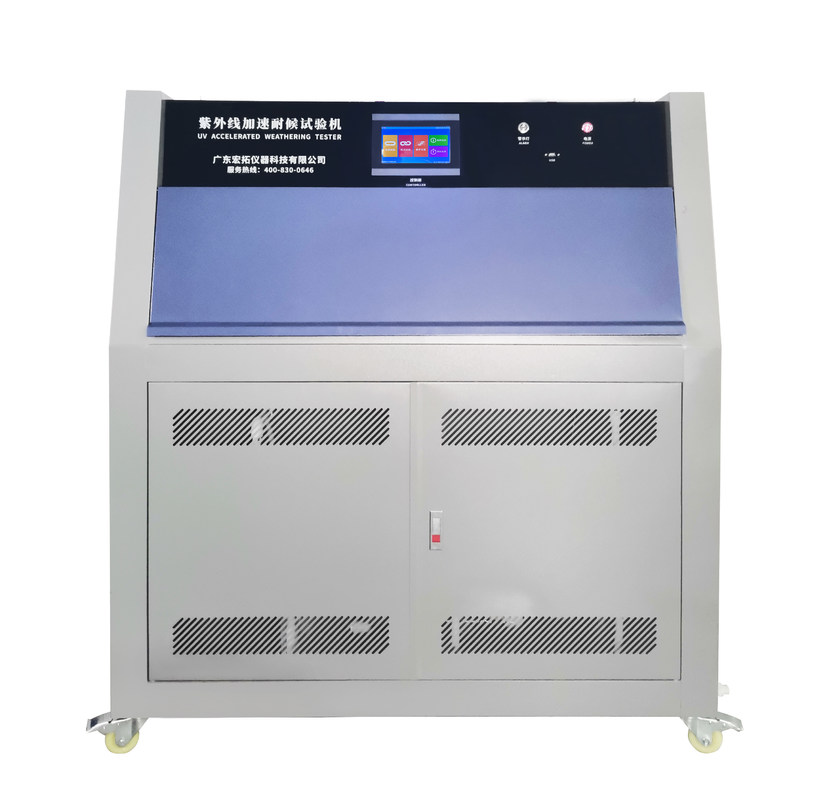

Tower Type UV Aging Test Chamber UV-A Wavelength 315 - 400nm UV Aging Environmental Test Chamber

Tower Type UV Aging Test Chamber UV-A Wavelength 315 - 400nm UV Aging Environmental Test Chamber

  • Tower Type UV Aging Test Chamber UV-A Wavelength 315 - 400nm UV Aging Environmental Test Chamber
Tower Type UV Aging Test Chamber UV-A Wavelength 315 - 400nm UV Aging Environmental Test Chamber
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO,SGS
Model Number: DH-RUV-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: about 7 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per months
Contact Now
Detailed Product Description
Name: UV-A Wavelength 315~400nmuv Aging Environmental Test Chamber Standards: ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799 Etc
Studio Size: 1140mm × 400mm × 380mm Wavelength Range: UV-A Wavelength Range Is 315~400nm
Standard Test Piece Size: 75×150mm 48pcs Temperature Control Method: PID Self-tuning Temperature Control Mode
High Light:

Tower Type UV Aging Test Chamber

,

PID Control UV Aging Test Chamber

,

Tower Type UV Aging Chamber

Tower Type Uv Aging Test Chamber UV-A Wavelength 315~400nmuv Aging Environmental Test Chamber



Ultraviolet radiation aging test chamber can simulate caused by sunshine, rain and dew, UV simulation using fluorescent UV UV lampThe effect of sunlight, rain and dew of condensed moisture simulation, were put to the test material under a certain temperatureAccording to and the moisture test in alternate cycle program. UV in days or weeks timeOutside a few months to several years.



Specification:



Model DH-RUV-1
Studio size: 1140mm × 400mm × 380mm
Dimensions: 1300mm × 500mm × 1460mm
Center distance of the lamp: 70mm
The distance between the specimen and the nearest parallel surface of the lamp surface: About 50mm
Wavelength range: UV-A wavelength range is 315~400nm/UV-B wavelength range is 290~313nm
Radiation intensity: 1.5W/m2/340nm
Temperature resolution: 0.1 ° C
Light temperature range: 50 ° C ~ 70 ° C / temperature tolerance is ± 3 ° C
Condensation temperature range: 40 ° C ~ 60 ° C / temperature tolerance is ± 3 ° C
Blackboard thermometer measurement range: 30~80°C/tolerance is ±1°C
Temperature control method: PID self-tuning temperature control mode
Humidity range: About 45% to 70% R.H (lighting state) / 98% or more (condensation state)
Sink requirements: Water depth is not more than 25mm, and there is automatic water supply controller
Standard test piece size: 75×150mm 48pcs
Recommended instrument environment: 5~35°C, 40%~85%R·H, 300mm from the wall



Tower Type UV Aging Test Chamber UV-A Wavelength 315 - 400nm UV Aging Environmental Test Chamber 0
