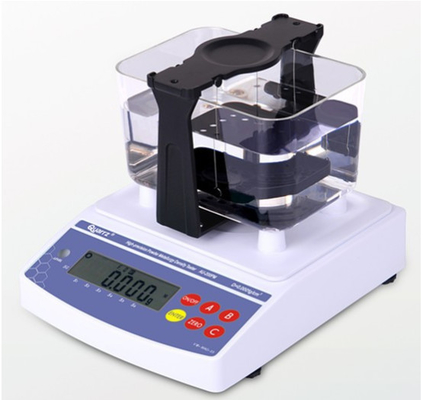

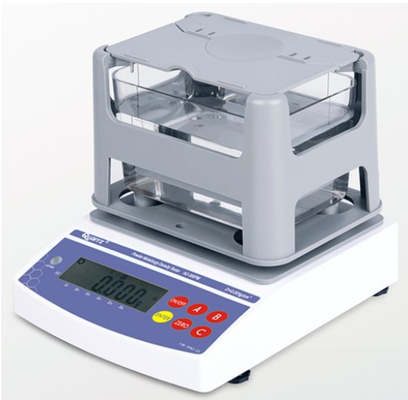

Analytical Balance Solid Density Meter Copper Base For Porosity Metal Materials

Analytical Balance Solid Density Meter Copper Base For Porosity Metal Materials

  • Analytical Balance Solid Density Meter Copper Base For Porosity Metal Materials
  • Analytical Balance Solid Density Meter Copper Base For Porosity Metal Materials
Analytical Balance Solid Density Meter Copper Base For Porosity Metal Materials
Product Details:
Place of Origin: dongguan
Brand Name: QUARRZ
Certification: CE, FCC
Model Number: AU-200PM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD399-USD1599
Packaging Details: 42 X 16 X 32cm
Delivery Time: 2 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Other
Supply Ability: 300 Set/Sets Month
Contact Now
Detailed Product Description
Customized: Yes Power Supply: AC 100V - 240V , Based On Customers' Requirement
Interface: RS - 232 Usage: Density Measuring Instrument , Portable Density Meter
Testing Before Delivery: Yes Warranty: 2 Years;life-long Maintenance
After-sale Service Provided: Yes Maximum Weight: 200g
Minimim Weight: 0.001g Density Resolution: 0.0001 G/cm3
High Light:

electronic density meter

,

automatic density meter

Automatic Density Measuring Instrument , Portable Densimeter , Densitometer , Density Meter for Porosity Metal Materials





Porosity is more than 2%,compression moulding by metal powder,and feature of water absorption,that is called porosity metal materials.of which normal density range is from 2.0 to 8.5g/cm3.This series instrument according to ASTM B311,B328,GB/T5163,JIS Z2505,JIS Z2506,MPIF Standard42,MPIF Standard45.,etc standards;Adopt high precision weight sensor,water measurement equipment with no binding sample;Density value can be tested instantly;Function of saturation measuring method,surface covering waterproof method,high viscosity medium liquid method and so on;





Measurement Type:



  • Semi-finished products made up by compression moulding method through make-up machine.
  • MIM injection moulding products.
  • Products with high temperature sintering
  • Porosity,oil content.
  • Real density for metal powder.
  • performance density and apparent density for metal powder
  • Density for other solids.



Measuring Typical Products:



Powder metallurgy

Oil bearing with copper-base,iron-base,iron copper-base;structural parts with
copper-base,iron-base,iron copper-base;piston of shock absorber,water rotor pump for auto,chain wheel,transmission gear,roller gear,electrical gear,eccentric gear,reducer casing gear,engine chain wheel,bevel gear,sector gear,duplicate gear,filter,spring bolt,planetary gear carrier,spiral bevel gear,internal gear,bevel wheel,transmission gear,belt pulley,synchronizing wheel,tooth shape axle sleeve.,etc.

Magnetic materials
fine ceramics





Measuring Resolution:


AU-120PM,AU-200PM density resolution:0.0001g/cm3
AU-300PM,AU-600PM,AU-900PM,AU-1200PM density resolution:0.001g/cm3





Function and Features:



  • Convenient,rapid measuring,accuracy.
  • Unobstructed without lifting lid design,more simpler operation.
  • High precison weight resolution,makes measuring result more accuracy and reliability.
  • Any shape can be measured instantly,suitable for quick measurement situation.such as site and laboratory.
  • No need to bundle samples.weight for suspension wire can be deducted to zero.
  • Either water or other liquid can be used as medium.
  • Function of actual water temperature setting,medium density setting.
  • Function of air buoyancy compensation setting,top and bottom limitation for density setting.
  • Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.
  • Adopt precision aluminum alloy completed testing board.
  • Equiped special windproof dustproof cover,which makes the structure more convenient and durable.
  • Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.
  • Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm
  • Power supply:AC 100V-240V 50HZ/60HZ Europe standard





Standard Accessories:


(1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer





Porosity Materials Measuring Procedure:

  1. Place samples on testing board to measure weight in air.press ENTER key to memory.
  2. After did water repellent treatment on samples,place it on testing board to measure weight in air.press ENTER key to memory.
  3. Place samples into water to measure weight in water.press ENTER key to memory.density value will be displayed.



Anti-counterfeiting Announcement:


The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.

  • Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
  • Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
  • Method three:Check security code that generate automatically by machine number.



Technical Specification:



Brand QUARRZ
Model AU-300PM AU-600PM AU-900PM AU-1200PM AU-120PM AU-200PM
Weight Range 0.005~300g 0.005~600g 0.01~900g 0.01~1200g 0.001~120g 0.001~200g
Standard deviation 0.005g 0.005g 0.01g 0.01g 0.001g 0.001g
Density readability 0.001 g/cm3 0.0001 g/cm3
Testing board ABS injection moulding

Aluminum alloy

die-casting moulding

Density range 0.001~99.999g/cm3 0.0001~99.9999g/cm3
Result display Apparent density,volume density,wet density,overall porosity,effective porosity,open pore volume,bulk volume,oil content,water absorption
Measuring time About 5 seconds

Opening lid

method for

testing board

Unobstructed without lifting lid design
Water tank Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm)
Parameter setting Water temperature setting,measuring medium density setting,primary materials and secondary materials setting,air density setting,suspension wire buoyancy deviation setting
Calibration method Single key calibration,automatically testing
Standard components

(1) host(2)water tank(3)testing board(4)tweezers(5)thermometers

(6)weight(7)windproof dustproof cover(8)power transformer

interface Standard RS-232 interface
Optional accessories AU-40 printer,data connecting wire
Power supply AC100V~240V 50HZ/60HZ (Europe standard)
Gross weight/size 4.5kg/Length42.5 cm×Width17.5 cm×Height32.5cm
