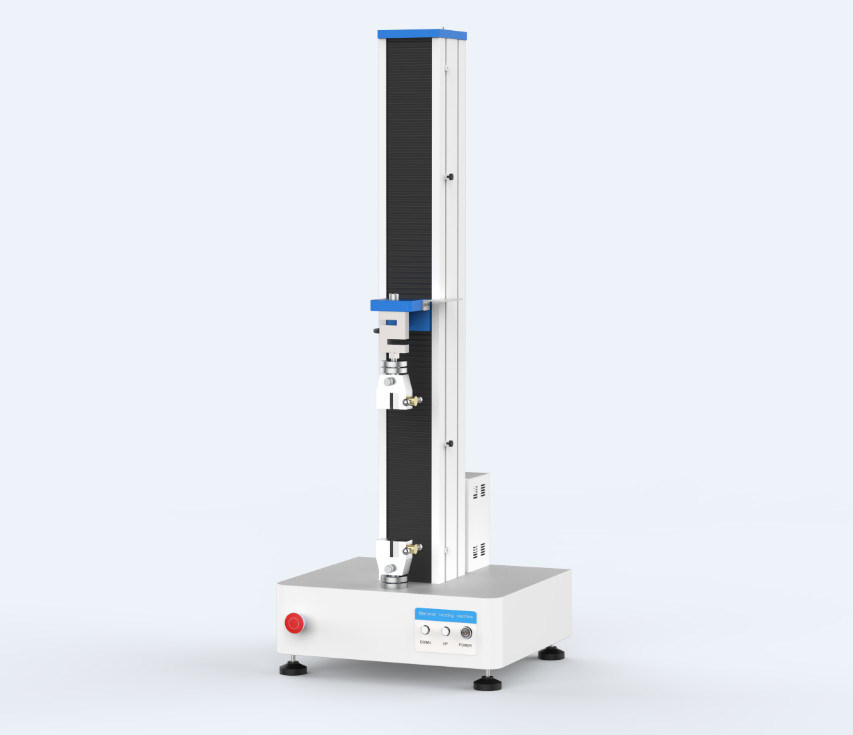

Fiber Tensile Universal Testing Machine / Manual Tensile Tester With Double Space

Fiber Tensile Universal Testing Machine / Manual Tensile Tester With Double Space

  • Fiber Tensile Universal Testing Machine / Manual Tensile Tester With Double Space
  • Fiber Tensile Universal Testing Machine / Manual Tensile Tester With Double Space
Fiber Tensile Universal Testing Machine / Manual Tensile Tester With Double Space
Product Details:
Place of Origin: dongguan
Brand Name: DahoMeter
Certification: CE, FCC
Model Number: Manual Tensile Tester,Digital Tension Tester
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wood standard exported package
Delivery Time: Shipped in 5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
Supply Ability: 300 Set/Sets per Monter
Contact Now
Detailed Product Description
Customized: Yes OEM Service: Yes
Stock: Yes Structure: Single Column
Usage: Manual Tensile Tester,Digital Tension Tester Capacity: 2KN
High Light:

universal tensile testing machine

,

universal tensile tester



Fiber Tensile Strength Testing Machine , Manual Tensile Tester , Digital Tension Tester





1.Application:



It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



2.Standard:



ASTM, ISO, DIN, GB and other international standards.



3. Main Technical Parameters:



Max. load:2KN
Structure:Single column double spaces
Control method:computer control
Load accuracy:1 class
Load range:2%~100%FS/0.4%-100% FS
Displacement Resolution: 0.01mm
Test speed:0.05-500mm/min(can be customized)
Tensile space:600mm(can be customized)
Compression space:600mm(can be customized)
Power supply:AC220V±10%,50Hz(can be customized)
Grips:Wedge type, plate type and other grips as consumer's demand
Dimension:520*390*1690mm
Weight:124kg



4. Main Unit Feature:


4.1 Adopt single column structure, lower for tensile, upper for compression, double space. The beam is stepless lifting, light but rigid.
4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
4.3 The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
4.4 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
4.5 The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
4.6 The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.
4.7 Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
4.8 Adopt bolt type grip installation, make the grip replace easier.



5. Software function:



5.1 Defined function: according to different types of users, different material properties, different test standards, different languages, flexible setting the test program to meet the test requirements.

5.2 Input Function: Entry specimen parameters before the test, you can single input sample parameter, you can also batch input sample parameters, you can modify the sample parameters before the test, the specimen parameters can be modified after the test, fully satisfy your operating habits.

5.3 Data processing query functions: fully equipped data query function, print function, the export function to ensure the accuracy of the test data, reliability, real embody and reflect the nature and characteristics of the material test data.

5.4 Curve analysis function: All the material properties can be reflected by the data curve, so the powerful data curve analysis function can help you better mastery and understanding of the material test properties, which is your best helper to analyze the material.



6. Software Features:



6.1Auto zero clearing : After starting test, the system auto zero clearing.

6.2Auto calibration:system can automatically realize the value accuracy of the calibration.

6.3 Auto return:finish test, the cross beam will auto return to the starting position.

6.4 Auto gear shifting (when choose classify gear test): According to the load size automatically switch to the appropriate range, to ensure the accuracy of the test data.

6.5Auto speed changing:The cross beam moving speed can auto changing during the test process according to the preset program, also can manual change.

6.6Auto saving: adopting the the database management way, the test data and curve automatically saved after the test.

6.7Auto calculating:when finish test, automatic calculate elastic modulus, yield strength and the non-proportional elongation stress, etc ( Different test method, different analysis date.) , can auto analyze, also be artificial correction analysis results, improve the accuracy of the analysis.

6.8 Display way: Dynamic display of data and curves with the testing process.

6.9 Result comparison: Multiple test curve can use different color superposition, reappear, enlarge , presenting comparison of a set of sample.

6.10 Curve choice:can choose Stress - strain, force - displacement, force - time, force- deformation, displacement - time, and other curves to display and print; Can switch at any time to observe, zoom in and zoom out, horizontal or vertical movement, real-time high speed sampling.

6.11 Test standard: Integrated with about 40 kinds of national standard or test method, can meet the various test need of customers.

6.12 Test report: According to user required format, using EXCEL to compile reports and print bulk data.

6.13 Limit protection: with mechanical and programmable two level limit protection function.

6.14 Overload protection: with two grade overload protection.

Cross beam moving overload: when the load exceeds 0.2-0.5% of the maximum value of the scale, automatic stop.

Test overload: when the load exceeds 2-5% maximum value of the each file, automatic stop

6.15 Other protection:with overload, over current, over voltage, the displacement upper and lower limit and emergency stop protection function.



7. Configurations:



7.1 High strength main unit--------------------------------------------------------------------------1 set

7.2 High precision arc synchronous deceleration system------------------------------------1 suit

7.3 High precision ball screw------------------------------------------------------------------------2 pcs

7.4 Measurement control system------------------------------------------------------------------1 suit

7.5 High accuracy photoelectric encoder--------------------------------------------------------1 pc

7. 6Digital speed regulating control system-----------------------------------------------------1 suit

7.7Motor and Control system(Panasonic optional )-------------------------------------------1 suit

7.8 High precision load sensor(CELTRON optional)------------------------------------------1 pc

7.9 HS-max test software----------------------------------------------------------------------------1 suit

7.10 Tensile fixture ------------------------------------------------------------------------------------1 suit

7.11 Lenovo computer--------------------------------------------------------------------------------1 set

7.12 Printer-----------------------------------------------------------------------------------------------1 set



Our Services:



As leading manufacturer,we guarantee below:

  • 100% Competitive price we are the original manufacturer for years, the large scale production make our products more competitive, that’s the reason we are very confident to offer the most possible competitive price for the same level testing instruments in the world.
  • High quality standards we have the powerful professional researching and technology team to support quality;Our quality has been proved by the good market reaction for years;Our product are built to meet the industrial standards and global standards;Every instrument get checked and approved by our QC before delivery.
  • Faultless service we have the professional customer service team to provide the one to one service for you;we can help you to enjoy the one-stop service without any worries;we have the completed after-sales service policy and quality insurance policy;we guarantee instruments for one year and life-long maintenance(Gold Purity Tester for two years)
  • Efficient logistics we have the stable partner to help us to deliver the goods to the any corner of the worldwide shortly.Air shipment;International express:DHL/UPS/FEDEX/TNT(5 days to 7 days)
  • OEM service We are the original manufacturer of densimeter,that is verified by the third party and Alibaba on site;We can provide you OEM service and print your logo on the instruments
