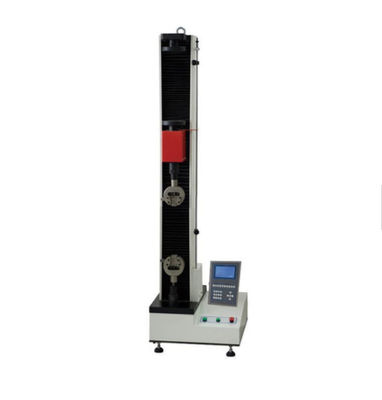

High Precision Universal Material Testing Machine With High Resolution

High Precision Universal Material Testing Machine With High Resolution

  • High Precision Universal Material Testing Machine With High Resolution
High Precision Universal Material Testing Machine With High Resolution
Product Details:
Place of Origin: dongguan
Brand Name: DahoMeter
Certification: CE, FCC
Model Number: Universal Tensile Strength Testing Equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD499-USD1999
Packaging Details: wood standard exported package for Universal Strength Testing Machine , Tensile Strength Testing Equipment , Universal Test Equipment
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
Supply Ability: 300 Set/Sets per Monter
Contact Now
Detailed Product Description
Customized: Yes OEM Service: Yes
Stock: Yes After-sale Service Provided: Yes
Usage: Universal Tensile Strength Testing Equipment Maximum Force Load: 5kn
High Light:

universal tensile tester

,

universal material testing machine



Universal Strength Testing Machine , Universal Tensile Strength Testing Equipment , Universal Test Equipment




Capacity: 1KN-5KN




Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.




Standard:

ASTM, ISO, DIN, GB and other international standards.




Main Unit Feature:



  • Adopt single column structure, lower for tensile, upper for compression, double space. The beam is step less lifting, light but rigid.
  • Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
  • The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
  • The shield plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
  • The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
  • The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.
  • Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
  • Adopt bolt type grip installation, make the grip replace easier.


Main Technical Parameters:



  • Model:WDW-05S
  • Max. load:500N
  • Structure:Single column double spaces
  • Control method:Single chip control
  • Load accuracy:1 class
  • Load range:2%~100%F•S/0.4%-100% FS
  • Displacement Resolution:0.01mm
  • Test speed:0.05-500mm/min(can be customized)
  • Tensile space:600mm (can be customized)
  • Compression space:600mm (can be customized)
  • Power supply:AC220V±10%,50Hz(can be customized)
  • Grips:Wedge type, plate type and other grips as consumer’s demand
  • Dimension:520*390*1690mm
  • Weight:124 kg


Main Accessories:



  • High strength main unit-----------------------------------------------------------------1 set
  • High precision arc synchronous deceleration system----------------------------1 suit
  • High precision ball screw---------------------------------------------------------------2 pcs
  • Motor and Control system (Panasonic optional)----------------------------------1 set
  • High precision load sensor(CELTRON optional)------------------------------------1 pc
  • High accuracy photoelectric encoder-------------------------------------------------1 pc
  • Tensile fixture ------------------------------------------------------------------------------1 suit
  • Compression fixture ----------------------------------------------------------------------1 suit
  • LCD controller-------------------------------------------------------------------------------1 set
  • Printer(optional)----------------------------------------------------------------------------1 set

Our Advantages:


As leading manufacturer,we guarantee below:

  • 100% Competitive price we are the original manufacturer of densimeter for years, the large scale production make our products more competitive, that’s the reason we are very confident to offer the most possible competitive price for the same level testing instruments in the world.
  • High quality standards we have the powerful professional researching and technology team to support quality;Our quality has been proved by the good market reaction for years;Our product are built to meet the industrial standards and global standards;Every instrument get checked and approved by our QC before delivery.
  • Faultless service we have the professional customer service team to provide the one to one service for you;we can help you to enjoy the one-stop service without any worries;we have the completed after-sales service policy and quality insurance policy;we guarantee instruments for one year and life-long maintenance.
  • Efficient logistics we have the stable partner to help us to deliver the goods to the any corner of the worldwide shortly.Air shipment;International express:DHL/UPS/FEDEX/TNT(5 days to 7 days)
  • OEM service We are the original manufacturer of densimeter,that is verified by the third party and Alibaba on site;We can provide you OEM service and print your logo on the instrument.
