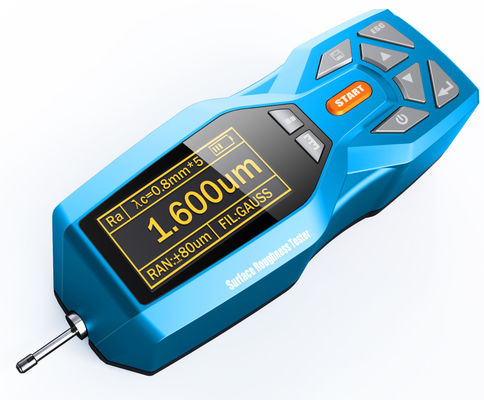

Portable Stainless Steel Non Destructive Testing Machine / Surface Roughness Testing Instrument

Portable Stainless Steel Non Destructive Testing Machine / Surface Roughness Testing Instrument

  • Portable Stainless Steel Non Destructive Testing Machine / Surface Roughness Testing Instrument
  • Portable Stainless Steel Non Destructive Testing Machine / Surface Roughness Testing Instrument
  • Portable Stainless Steel Non Destructive Testing Machine / Surface Roughness Testing Instrument
Portable Stainless Steel Non Destructive Testing Machine / Surface Roughness Testing Instrument
Product Details:
Place of Origin: DongGuan,China
Brand Name: DahoMeter
Model Number: KR-220
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: USD399 to USD999
Packaging Details: standard exporting package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Testing Parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx Application: Portable Surface Roughness Tester
Testing Before Delivery: Yes After-sale Customer Service: Yes
Technical Support: Yes Warramtu: Yes
Highlight:

non destructive testing instruments

,

non destructive testing inspector

Professional Supplier Portable Stainless Steel Surface Roughness Tester , Surface Roughness Testing Instrument



Product Application



It is applicated to measure surface roughness of various machinery-processed parts, especially for roughness measurement of complex parts,such as:Flat, Curved surface, Grooves and Holes.Capable of evaluating surface textures with a variety of parameters according to various national standards and international standard.
The measurement results are displayed digital/graphically on the LCD, and output to the printer.



Main Features



* Electromechanical integration design, small volume, light weight, easy to use;

* Using DSP chip to control and data processing, high speed, low power consumption;

* 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

* Intuitive and rich display information, can display all the parameters and graphics;

* Compatible with ISO, DIN, ANSI, JIS national standards;

* Residual quantity icon, prompting the user to charge;

* Continuous working time: more than 20 hours.

* Real-time clock settings and display, convenient data recording and storage.

* With automatic dormancy, automatic shutdown and power saving function

* Reliable control motor to go dead circuit and software design

* Measurement information display, menu prompt information, false information and switch machine and other tips that information;

* Can be connected to a computer and printer;

* Optional different sensor, measuring platform, mini printer, extension rod and other accessories.

* Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.

* Optional bluetooth function.

* High price performance.




Technical Parameter







KR220
Testing parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;
Measuring range (um)

Ra: 0.005-16.000

Rz: 0.02-160.00

Sample length (mm) 0.25, 0.80, 2.50
Evaluation length(mm) (1-5)L
Maximum drive stroke 17.5mm/0.7inch
Indication accuracy 0.001
Indication error ±(7-10)%
Variability <6%
Data Storage 100 groups
Power Rechargeable li-battery
Working temperature -20℃~40℃
Relative humidity <90%
Size 158mmx63.5mmx46mm
Weight of Host 0.3kg
Portable Stainless Steel Non Destructive Testing Machine / Surface Roughness Testing Instrument 0
