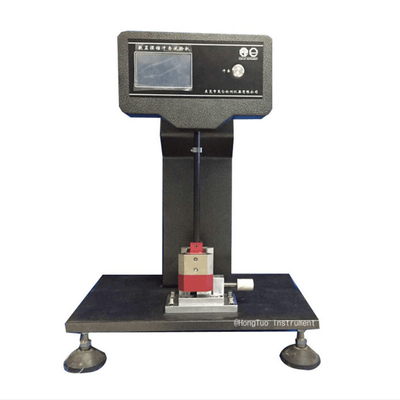

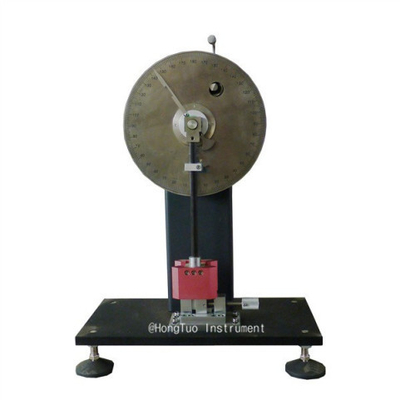

Digital Cantilever and Simple Plastic Testing Machine / Beam Izod Impact Strength Tester

Digital Cantilever and Simple Plastic Testing Machine / Beam Izod Impact Strength Tester
Digital Cantilever and Simple Plastic Testing Machine / Beam Izod Impact Strength Tester Digital Cantilever and Simple Plastic Testing Machine / Beam Izod Impact Strength Tester

Large Image :  Digital Cantilever and Simple Plastic Testing Machine / Beam Izod Impact Strength Tester

Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Model Number: DH-XBL-5.5
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: USD999 to USD1999
Packaging Details: standard exporting wooden package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Pendulum tilt angle: 150° Impact speed: 3.5m/s
Pendulum center distance: 335mm Testing Before Delivery: Yes
After-sale Customer Service: Yes Product Name: Izod Impact Testing Machine
High Light:

plastic testing equipment

,

plastic testing instruments

Digital Cantilever and Simple Beam Izod Impact Strength Tester / Testing Machine , Izod and Charp Impactor





Introduction:



This instrument is an impact testing machine with simple structure and convenient operation.

It is used to test the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials.





Performance standards



ISO179-2000, GB/T1043-2008, JB/T8762-1998, ISO-180-2000, ASTM D256-2010





Technical Specifications



Name Izod tester Charpy tester
Article No. XBL-5.5 XBL-22 JZL-5 JZL-25 JZL-50
Pendulum energy 2.75J,5.5J 11J, 22J 1J,2J,4J, 5J 7.5J,15J, 25J 25J,50J
Pendulum tilt angle 150°
Impact speed 3.5m/s 2.9m/s 3.8m/s
Pendulum center distance 335mm 221mm 380mm
Impact blade angle   30°
Supporting distance from impact blade to jaw 22mm 60mm, 70mm, 95mm
Impact blade radius R=0.8±0.2mm R=2mm±0.5mm
