Product Details:
Payment & Shipping Terms:
|
Power Supply: | Europe Standard AC 100V - 240V | Capacity: | 1200g |
---|---|---|---|
Weight Resolution: | 0.01g | Power: | Electronic |
Usage: | Gold Precious Metal Tester | Warranty: | Two Years;life-long Maintenance |
High Light: | precious metal analyzer machine,precious metal testing equipment |

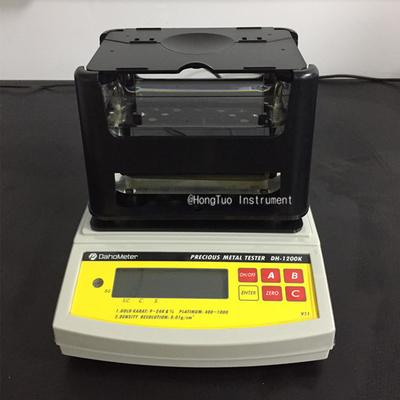

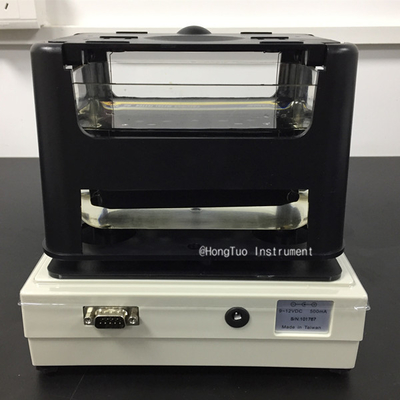

High accuracy gold K value density tester , Precious Metal Purity Gold Karat Tester
Principle:
According Archimedean principle of buoyancy method
Application:
Jewelry industry, gold and precious metals research lab, jewelry shop, bank, pawn shops .
Features:
1. No damage testing, cleaning and environmental protection.
2. Unable to measure sample which is hollow or with inserted gems.
3. Multi-mode, gold mode, platinum mode, other precious metals mode can be switched.
4. Could be used as precision balance.
5. Top and bottom limitation of K value, purity and density of gold. And prompt alarm.
6. Automatic zero tracking, buzzer warning, and overload warning.
7. Water and other liquids could be used as measurement medium.
8. RS-232C is included.
Model |
DH-300K |
DH-600K |
|
Maximum weight |
300g |
600g |
|
Weigh resolution |
0.005g |
||
Density resolution |
0.001g/cm3 |
||
Measuring time |
15S |
||
Testing board |
Unicase high-capacity plastic testing board |
||
Measuring type |
Traditional gold and platinum jewelry,necklace,bracelet,ring,large bullion,craft,and gold,silver,copper,cadmium,nickel,tin.etc. |
||
Gold mode |
Display k value |
The K value of mixture of gold,silver,and copper;mixture of gold and copper;mixture of gold and silver; |
|
Display purity percent |
The purity content of mixture of gold,silver and copper; ;mixture of gold and copper;mixture of gold and silver; |
||
K value range |
9K~24K |
||
Copper and silver proportion setting |
Cycle seting as user’ prefer(default 7:3) |
||
platinum |
Display value |
PT percent,density value,volume |
|
PT value range |
Pt600 - Pt1000 |
||
Measuring container |
unicase injection forming transparent professional measurement tank (size:length16.9mm×wide9.8mm×high8.3mm) |
||
Parameter setting |
water temperature setting,measuring medium density setting |
||
principle |
Archimedes principle |
||
Memory method |
Two procedures |
||
Correction method |
auto correction with one button,auto detection. |
||
Output method |
output and print testing data conveniently with standard communication interface of RS-232C. |
||
Standard accessories |
Host,tank,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer |
||
wind and dust cover |
Adopt the unicase dedicated wind and dust cover |
||
Option accessories |
DE-40 printer |
||
power |
AC100V– 240V |
||
Main features |
Simple operation,digital display,accurate measurement,stable,durable. |
Contact Person: Mrs. Julie Zhong
Tel: 86-13267004347
Fax: 86-769-2318-1253
