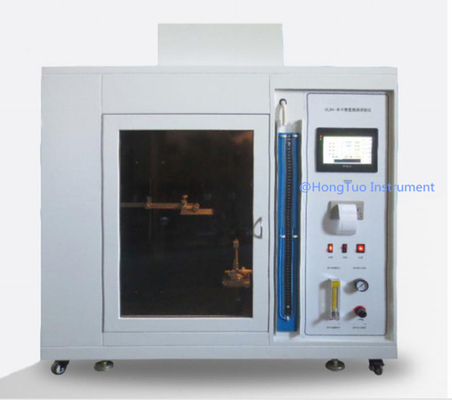

Foam Horizontal Vertical Burning Tester , Plastic Textile Foam Performance Testing Machine

Foam Horizontal Vertical Burning Tester Plastic Textile Foam Performance Testing Machine . Flame Testing Equipment

Standards:

ISO1210, GB4609, IEC 707, IEC695-2-2

UL94 "Fire Test"

GBT2408-2008 "Determination of burning properties of plastics - Horizontal method and vertical method"

IEC60695-11-10 "Fire Test"

GB/T8333-2008 "Test method for burning rigid foams - Vertical combustion method"

Function:

• Programmable controller touch screen, data display;
• Pulse high voltage electronic automatic ignition;
• Timing button cooperates with PLC to automatically record and store burning time;
• Time timer detects that the flame reaches the 25, 100mm line time;
• Accuracy 0.1S, automatic timing;
• No need to hold the stopwatch or manuscript timing; the test time system automatically records and generates an experimental report;
• Test time and fire time can be set on the touch screen. Meet a variety of test standards;
• Linear burning rate (V) PLC automatic calculation, touch screen display and save;
• The test level value (HB0 HB40 HB75/V-0 V-1 V-2) and the national standard value can be viewed on the screen;
• Horizontal and vertical burning test procedures can be switched on the touch screen.

Specification:

1) Volume of the inner chamber: ≥0.5 cubic meters, with glass observation door

2) Timer: It adopts the imported timer, adjustable from 0 to 99 minutes and 99 seconds, the accuracy is ±0.1 seconds, the burning time can be set, and the burning duration can be recorded.

3) Control system: electronic control

4) Print function: automatically print data

5) Flame time: 0 ~ 99 minutes 99 seconds can be set

6) Afterflame time: 0 ~ 99 minutes 99 seconds can be set

7) Afterburning time: 0 ~ 99 minutes 99 seconds can be set

8) Test gas: 98% or more of methane/37MJ/m3 natural gas (liquefied gas is also available)

9) Burning angle: 20 °, 45 °, 90 ° (ie 0 °) adjustable

10) Burner size parameters: the lamp is imported, the inner diameter of the nozzle is Ø9.5±0.3mm, the effective length of the nozzle is 100±10mm, and there is air conditioning hole.

11) Sample mode: front and rear alignment of the motor drive

12) Flame height: adjustable from 20mm to 175mm according to standard requirements

13) Flowmeter: using 105ml/min standard

14) Power supply: AC 220V/50Hz
