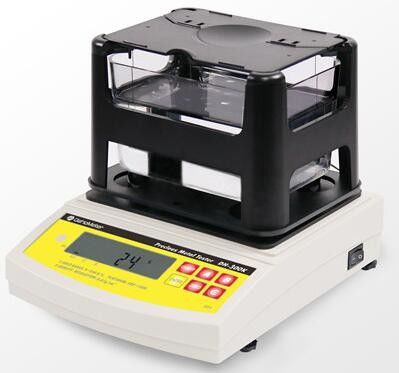

DH-300K Gold Measuring Machine , Jewelry Weighing Scale Gold Tester Purity Detector

DH-300K Gold Measuring Machine , Jewelry Weighing Scale Gold Tester Purity Detector
DH-300K Gold Measuring Machine , Jewelry Weighing Scale Gold Tester Purity Detector

Large Image :  DH-300K Gold Measuring Machine , Jewelry Weighing Scale Gold Tester Purity Detector

Product Details:
Place of Origin: dongguan
Brand Name: DahoMeter
Certification: CE, FCC
Model Number: DH-300K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD400-USD1200
Packaging Details: 42 X 16 X 32cm for gold purity test instrument,Gold and Platinum Density Tester Machine
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Other
Supply Ability: 300 Set/Sets Month
Detailed Product Description
Power Supply: European Standard AC 100V - 240V Customized: Yes
Density Resolution: 0.001 G/cm3 Maximum Weight: 300g
Minimum Weight: 0.005g Interface: RS - 232C
High Light:

precious metal testing equipment

,

electronic precious metal tester


DH-300K Gold Measuring Machine, Jewelry Weighing Scale, Gold Tester Purity Detector


Description:


1. Directly read the purity of gold and measure the density (specific gravity) of other metals. After testing, your gold will not leave any stains and scratches;
2. It takes only 10 seconds to accurately measure the K number and density of gold, the Pt value and density of platinum;

3.Easy to operate, determine the precious metal density (specific gravity) and gold k number / platinum PT value, only need to weigh 2 times, just put the sample into the water, the instrument's internal software will automatically calculate;
4. According to market demand, through special software design, the user can set the upper and lower limits of K number and Pt value. When the test gold K number is greater than 24K, the instrument will display HI; when it is less than 12K, LO will be displayed. Identify the authenticity of gold in a more intuitive and faster way;
5. According to the ratio of copper and silver in gold, set the ratio of copper and silver to compensate the parameter value;
6. It adopts one-piece transparent large water tank (size: 15cm×10cm×9cm). The water tank is formed by special material, which is not only anti-wear and corrosion-resistant, but also not easy to break. It is also very beautiful and can be very convenient for users. use;
7. Lightweight, thin strip and stainless steel hanging bar line design can greatly reduce the error caused by the buoyancy of the hanging bar line;
8. Can test other precious metals, such as silver, copper, tin, etc.; can also be used as a precision electronic balance.
9. Only for solid metal parts, and solid metal parts are not equipped with gemstones;
10.Including RS-232C communication interface, easy to connect PC and printer, optional MZ-P1 printer to print measurement data.

Specifications:

 ModelDH-300K DH-600KDH-900KDH-1200KDA-300KDA-600KDA-900KDA-1200K

DE-
120K

DE-200K
Maximum weight300g 600g900g1200g300g600g900g1200g120g200g
Weight resolution0.005g0.005g0.01g0.01g0.005g0.005g0.01g0.01g0.001g0.001g
Density resolution0.001g/cm3
Measuring time10S
Testing boardCompleted high-capacity plastic testing board
Measuring typeTraditional gold and platinum jewelry,necklace,bracelet,ring,large bullion,craft,and gold,silver,copper,cadmium,nickel,tin.etc.





Gold mode


Display k value

The K value of mixture of gold,silver,and copper;
The K value of mixture of gold and copper;
The K value of mixture of gold and silver;


Display purity percent

The purity percentage of mixture of gold,silver and copper; ;
The purity percentage of mixture of gold and copper;
The purity percentage of mixture of gold and silver;

K value range9K~24K
Copper and silver proportion settingCycle seting(default 7:3)

Platinum
Mode

Display valuePT percent,density value,volume
PT value rangePt600 - Pt1000
Other Precious MetalsFunctionOnly for DA series and DE series:measure the purity percentage of main materials in two kinds of mixture
Display valueOnly for DA series and DE series:density value,volume,content precentage
settingOnly for DA series and DE series:density value of main materials and secondary materials setting
Measuring container

completed injection forming transparent professional measuring tank
(size:length16.9mm×wide9.8mm×high8.3mm)

Parameter settingwater temperature setting,measuring medium density setting
principleArchimedes principle
Memory methodTwo procedures
Correction methodAuto calibration with one key,auto detection.
Output methodOutput and print testing data conveniently with standard communication interface of RS-232C.
Standard accessoriesHost,tank,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer
wind and dust coverAdopt the unicase dedicated wind and dust cover
Option accessoriesDE-40 printer
powerAC 100V – 240V(Europe standard)
Main featuresSimple operation,digital display,accurate measuring,stable,durable.
