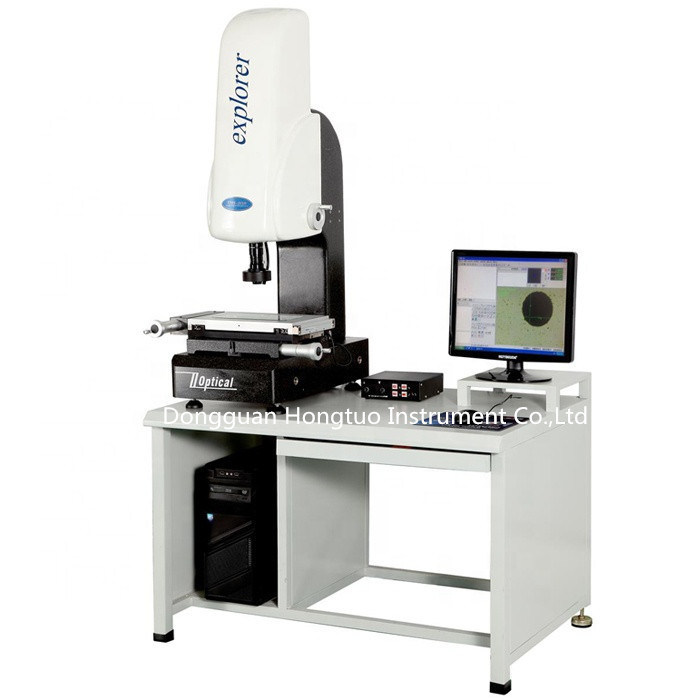

Intelligent Video Measuring System with 1/3"CCD Camera

Intelligent Video Measuring System with 1/3"CCD Camera

  • Intelligent Video Measuring System with 1/3"CCD Camera
Intelligent Video Measuring System with 1/3"CCD Camera
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-2010F
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 to 8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Usage: Video Measuring System Testing Before Delivery: Yes
After-sale Customer Service: Yes Metal Table’s Size: 350*220mm
Glass Table’s Size: 230*130mm X/Y Axis Travel Size: 200*100mm
High Light:

optical measurement equipment

,

optical measuring instruments

Intelligent Video Measuring System with 1/3"CCD Camera





Application:



CCD: 1/3" High Resolution CCD Camera 3D Video Measuring System with computer with stand is designed to do three-dimensional work piece on the slope, round, ditch,columns ,ball, dimension, bland holes as well as the geometrical terms such as the distance between the elements and angles. And it is widely used in machinery,electronics, mobile fittings, home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacent fields of computer and so on and other industries.



Specification:



Model DH-2010F DH-3020F DH-4030F DH-5040F
Worktable Metal table’s size(mm) 350*220 450*350 550*450 700*600
Glass table's size(mm) 230*130 330*230 430*330 530*430
X/Y travel size (mm) 200*100 300*200 400*300 500*400
Z axis travel Effective space is 245mm,focusing stroke is 200mm,and working distance is 95mm
Drive type X/Y axis rod drive,Z axis optical axis drive
Weight(kg) 170 260 300 500
Dimension(L)*(W)*(H) 500*700*1100 600*750*1100 700*900*1150 850*1050*1200
Measuring servo drive system Optical scale resolution:X/Y/Z axis 0.0005mm(0.5um)
Measuring accuracy:≤3um + L/200 repeatability accuracy:≤3um+L/200(L be regarded as measured length, units: mm)
Versatile data processor can measures points,lines,loops,circles,angles.etc.
Image System
(Standard Accessories)
Camera :SONY1 / 3" Color CCD Camera
Lens magnification :0.7~4.5X WD:95mm
Can match 0.5x objective lens,total magnification:15-115x
Can match 2x objective lens,total magnification:60-460x
LIght system Surface light and projection light,cold light,long life,brightness adjustable,Surface light and transmission light are used LED,Power:220/110V(AC),50HZ 30W



Intelligent Video Measuring System with 1/3"CCD Camera 0
