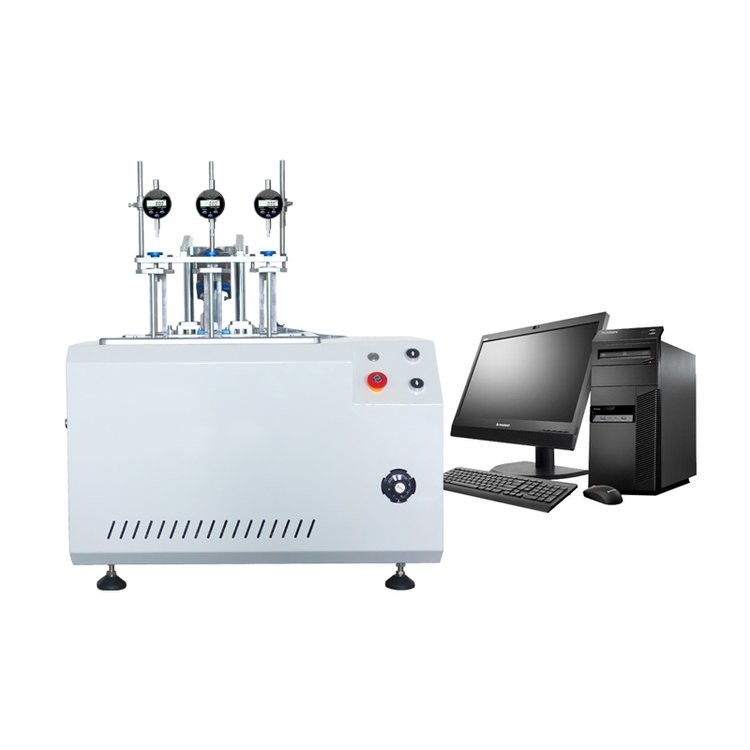

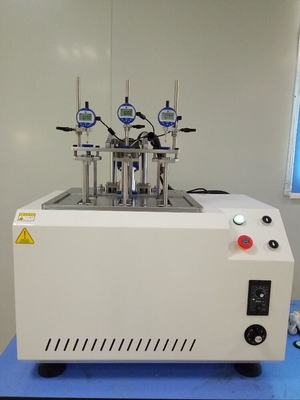

Dahometer HDT Plastic Vicat Softening Testing Machine CE Approved

Application:

Mainly used in plastic, rubber, nylon, electricity hard insulating materials, long fiber reinforced materials, high strength thermosetting laminated materials of nonmetal material such as heat distortion temperature and vicat softening point temperature is determined. Easy operation, precise control, intelligent is extremely high.

Characteristic:

It adopts PC computer control, far easton dial indicators measurement digital deformation, real-time curve drawing, directly in the PC of the test data in secondary treatment, test data can be imported into the OFFICE software, edit typesetting.

Standards:

GB/T 1633,GB/T 1634,GB/T 8802,ISO 2507,ISO 75,ISO 306,ASTMD 1525,ASTMD 648

Equipment description:

Vicat Softening Point Heat Distortion Testing Machine, Vicat Apparatus is to adapt to the rapid development of plastics industry and improve the level of research and testing of

materials, using the latest international and national standards;

The system controlled by microcomputer, four figures, three-way figures show the displacement and

deformation temperature. Tank temperature show host way. Equipped with a printer, can print test results,

simple operation, high automation, non-metallic materials used for the deformation and softening temperature

detection.

Specification:

1) Temperature control range: room temperature to 300 ° C

2) Maximum temperature error: ±0.5°C

3) Heating rate: 50 ° C / h, 120 ° C / h

4) Temperature measurement point: 1

5) Deformation measurement range: -0.1mm~1.1mm

6) Maximum deformation error: ±0.01mm

7) Using medium: methyl silicone oil (customer-supplied);

8) Sample support span: 64mm, 100mm

9) Cooling method: natural cooling above 150 °C, water cooling below 150 °C or natural cooling;

10) Has an upper limit temperature protection function;

11) Number of test stands: 3

12) The control mode adopts the single-chip computer and PC distributed control system;

13) Instrument size: 880mm × 580mm × 1400mm

14) Space required: 1m before and after, 0.6m left and right

15) Power supply: 4500VA 220VAC 50HZ
