Product Details:
Payment & Shipping Terms:
|
| Cutter Edge Radius: | R=0.8±0.2mm | Horizontal Distance From Striking Edge To Jaws: | 22mm |
|---|---|---|---|
| Distance From The Center Of Pendulum To Striking Edge: | 335mm | Izod Pendulum Energy: | 1J, 2.75J, 5.5J |
| Charpy Pendulum Energy: | 1J, 2J, 4J, 5J | Weight: | 85kg |
| Highlight: | Plastic Izod Charpy Impact Tester,ASTM D256 Izod Charpy Impact Tester,ISO izod charpy impact testing machine |
||

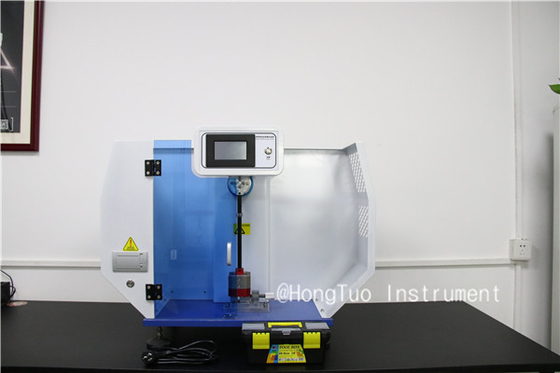

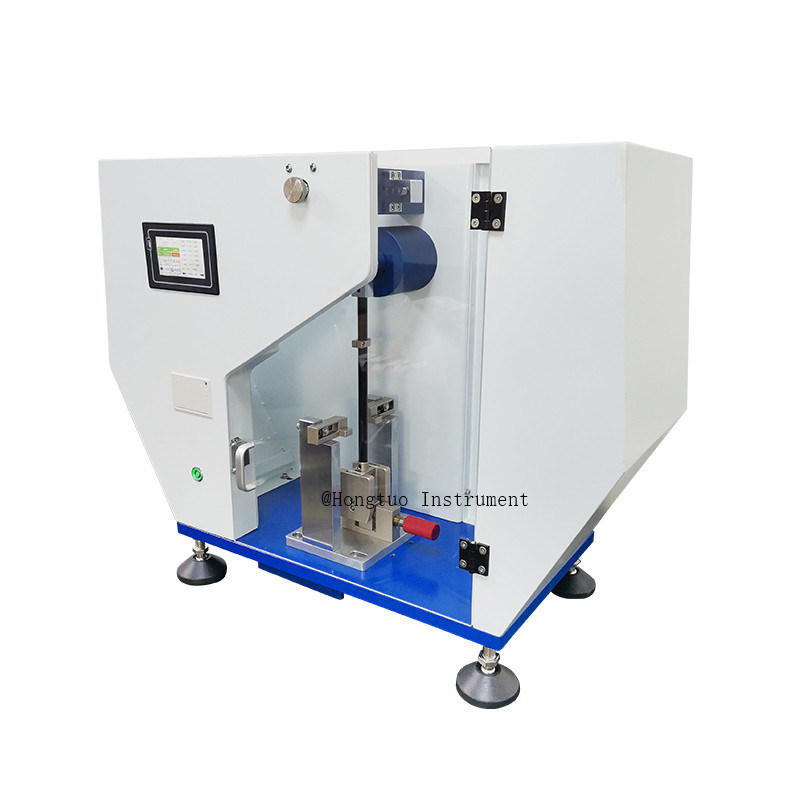

HT-1843-5.5D ISO179 ISO 180 ASTM D256 Plastic IZOD Charpy Impact Tester
Technical Specifications
| Model | HT-5D-CM | HT-50D-CM | HT-5-50D-CM |
| Izod pendulum energy | 1J, 2.75J, 5.5J | 11J, 22J | 1J, 2.75J, 5.5J, 11J, 22J |
| Charpy pendulum energy | 1J, 2J, 4J, 5J | 7.5J, 15J, 25J, 50J | 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
| Charpy impact speed | 2.9m/s | 3.8m/s | 2.9m/s(≤5J), 3.8m/s(≥7.5J) |
| Charpy pendulum center distance | 230mm | 395mm | 230mm(≤5J), 395mm(≥7.5J) |
| Izod impact speed | 3.5m/s | ||
| Izod pendulum center distance | 335mm | ||
| Pendulum angle | 150° | ||
| Measurement accuracy | ±0.1% | ||
| Resolution | 0.03% | ||
| The distance from the izod impact blade to the upper plane of the jaw | 22mm±0.2mm | ||
| Izod edge fillet radius | R=0.8mm | ||
| Charpy impact edge fillet radius | R=2mm±0.5mm | ||
| Charpy impact blade angle | 30°±1° | ||
| Charpy impact edge fillet radius | R=1mm±0.1mm | ||
| Charpy impact support front angle | 5° | ||
| Charpy impact support rear angle | 10° | ||
| Output mode | Printout or U-disk output | ||
| Supply voltage | 110~230VAC 50/60Hz | ||
| Appearance size (L*W*H) | 85cm*37cm*65cm | 106cm*37cm*78cm | 106cm*37cm*78cm |
| Weight | About 80kg | About 100kg | About 120kg |
Usage: Test the impact toughness of the non-metallic materials.Suitable material: plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials.
Application: scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.
Performance standards
ISO180—2000 Determination of Plastics - Hard Materials Izod Impact Strength
GB/T1843—2008 Rigid Plastic Izod Impact Test Method
JB/T8761—1998 Plastics Izod Impact Testing Machine
ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum
Product Features
A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;
B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.
C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;
D. Aerodynamic impact hammer and FAG Bearings greatly reduce mechanical friction losses
E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;
F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.
G. Built-in mini printer to print the test data
