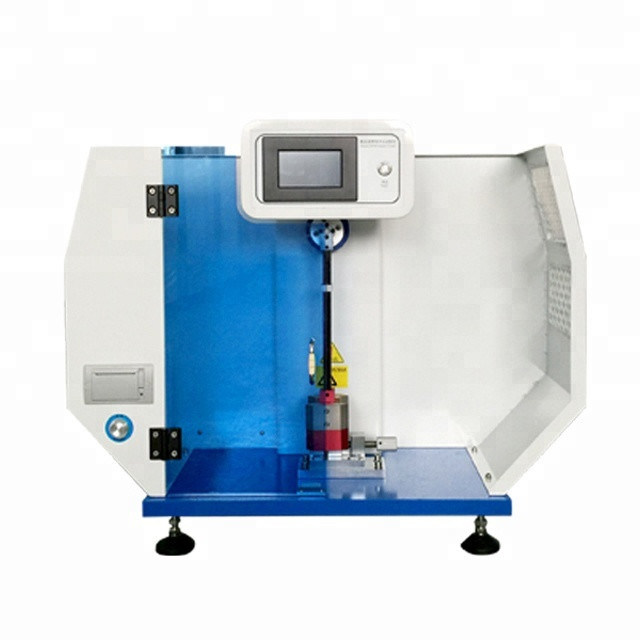

AC220V Touch Screen Izod Impact Testing Machine

AC220V Touch Screen Izod Impact Testing Machine

  • AC220V Touch Screen Izod Impact Testing Machine
  • AC220V Touch Screen Izod Impact Testing Machine
  • AC220V Touch Screen Izod Impact Testing Machine
AC220V Touch Screen Izod Impact Testing Machine
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: HT-1843-22D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard exporting package
Delivery Time: 5 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 sets per month
Contact Now
Detailed Product Description
Cutter Edge Radius: R=0.8±0.2mm Horizontal Distance From Striking Edge To Jaws: 22mm
Distance From The Center Of Pendulum To Striking Edge: 335mm Pendulum Energy: 11J、22J
Power Voltage: AC220V±10% 50HZ Keyword: Impact Tester Izod,izod Impact Testing Machine
High Light:

Touch Screen Izod Impact Testing Machine


AC220V Izod Impact Testing Machine


Pendulum Angle 150° Izod Impact Tester

Dahometer Touch Screen Control Electric Touch Screen Control



Technical Specifications

Displaying method LCD in English
Angle sensor Omron encoder,accuracy 0.01°
Impact speed 3.5m/s
Pendulum energy



Pendulum angle 150°
Distance from the center of pendulum to striking edge 335mm
Horizontal distance from striking edge to jaws 22mm
Cutter edge radius R=0.8±0.2mm
Weight 85kg
Power voltage AC220V±10% 50HZ




Usage: Test the impact toughness of the non-metallic materials.Suitable material: plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials.


Application: scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.



AC220V Touch Screen Izod Impact Testing Machine 0AC220V Touch Screen Izod Impact Testing Machine 1AC220V Touch Screen Izod Impact Testing Machine 2



Performance standards

ISO180—2000 Determination of Plastics - Hard Materials Izod Impact Strength

GB/T1843—2008 Rigid Plastic Izod Impact Test Method

JB/T8761—1998 Plastics Izod Impact Testing Machine

ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum


Product Features

A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;

B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.

C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;

D. Aerodynamic impact hammer and FAG Bearings greatly reduce mechanical friction losses

E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;

F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.

G. Built-in mini printer to print the test data


AC220V Touch Screen Izod Impact Testing Machine 3



Shipping Attention:


1.Please contact us after you place order.


2.Normally orders will be shipped out around 5 working days once payment received. for custom made parts.needs to be negotiated.


3.We Will ship by DHL, FedEx, UPS, EMS( we will choose the best way to ship the items ASAP). You will be updated the tracking number via Aliexpress. Generally, it takes 3-7 delivery days to your shipping address.Please make sure the phone number is valid.


4.Kindly please note the tax fee and clearance fee are not included in the item price. You have to take the responsibility for the tax and clearance fee.


Our  Service:

As leading manufacturer,we guarantee below:

100% Competitive price we are the original manufacturer of densimeter for years, the large scale production make our products more competitive, that’s the reason we are very confident to offer the most possible competitive price for the same level testing instruments in the world.

High quality standards we have the powerful professional researching and technology team to support quality;Our quality has been proved by the good market reaction for years;Our product are built to meet the industrial standards and global standards;Every instrument get checked and approved by our QC before delivery.

Faultless service we have the professional customer service team to provide the one to one service for you;we can help you to enjoy the one-stop service without any worries;we have the completed after-sales service policy and quality insurance policy;we guarantee instruments for one year and life-long maintenance(Gold Purity Tester for two years)

Efficient logistics we have the stable partner to help us to deliver the goods to the any corner of the worldwide shortly.Air shipment;International express:DHL/UPS/FEDEX/TNT(5 days to 7 days)

OEM service We are the original manufacturer of densimeter,that is verified by the third party and Alibaba on site;We can provide you OEM service and print your logo on the instruments.
