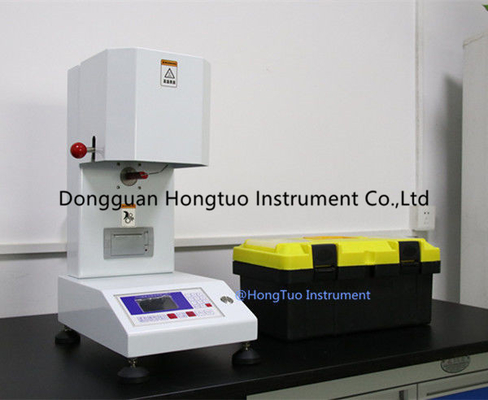

Plastic MFI Testing Machine For Quality Inspection

Plastic MFI Testing Machine For Quality Inspection

  • Plastic MFI Testing Machine For Quality Inspection
  • Plastic MFI Testing Machine For Quality Inspection
  • Plastic MFI Testing Machine For Quality Inspection
Plastic MFI Testing Machine For Quality Inspection
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-MI-BP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard exporting package
Delivery Time: 5-8 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per month
Contact Now
Detailed Product Description
DESCRIPTION: Basic Model;MFR;Manual Testing Result: Mass And Volume,MFR And MVR
MFR And MVR: Manual Outlet Diameter: Φ2.095±0.005mm,Outlet Length:8.000±0.025mm
Loading Cylinder Diameter: Φ9.550±0.007mm,Loading Cylinder Length:152± 0.100mm Piston Head Diameter: Φ9.475±0.007mm,Piston Head Length:6.350±0.100mm
Highlight:

Plastic MFI Testing Machine

,

Manual MFI Testing Machine

,

0.5% Accuracy Melt Flow Index Tester

DH-MI-VP Plastic Melt Flow Index Tester Manufacturer MFI Testing Machine



Product Description



The melt flow rate meter is a special instrument for determining the melt flow rate of a thermoplastic under certain conditions. It refers to a molten material extruded from a die of a specified length and diameter under a certain temperature and load. Mass flow rate MFR or melt volume flow rate MVR, which can distinguish the viscous flow characteristics of thermoplastics in molten state; it is of great significance for the quality assurance of thermoplastics and chemical fiber raw materials, products, etc., especially in quality. Inspection and warehousing testing.



Product Information



Brand DahoMeter
Model DH-MI-BP DH-MI-VP DH-EI-BP DH-EI-VP DH-AI-VP
Weight loading method Manual Manual electric Electric Automatic
Testing result Mass Mass and volume Mass Mass and volume Mass and volume
MFR MFR and MVR MFR MFR and MVR MFR and MVR
Outlet diameter Φ2.095±0.005mm,Outlet length:8.000±0.025mm
Loading cylinder diameter Φ9.550±0.007mm,Loading cylinder length:152± 0.100mm
Piston head diameter Φ9.475±0.007mm,Piston head length:6.350±0.100mm
Standard test load A total of 8 full set of weights
Temperature control range Room temperature~400℃(Optional~500℃) Room temperature ~500℃
Temperature control resolution 0.1℃ 0.1℃ 0.1℃
Constant temperature accuracy 0.5℃ 0.5℃ 0.2℃
Displacement resolution None 0.001mm 0.001mm
Temperature control 4h drift No less than ±0.5℃
Cartridge temperature recovery time after feeding ≤4min
Clock range 0~6000s
Clock resolution 0.1-1s
Countdown time setting Freely set
Automatic cutting device Set the interval time (any adjustable from 2 to 2000s) ,automatically complete the cutting
Jog cutting device Manual button electric cutting
Manual cutting device Manually rotating the handle to cut
Weight load accuracy ≤±0.5%
Weight load range 325-21600g discontinuous, combined load can meet standard requirements
Measuring range 0.1~100g/10min
Power supply AC220V / 50HZ or AC110V /60HZ; Choose different power supply voltages
Net weight 48KG
Gross weight 63KG



Main Technical Parameter



  • Extrusion part

Output port diameter: Φ2.095±0.005 mm, discharge port length: 8.000±0.025 mm

(Optional: Φ1.050±0.005 mm, discharge port length: 4.000±0.025 mm)



Loading cylinder diameter: Φ9.550±0.007 mm, loading cylinder length: 152±0.100 mm



Piston head diameter: 9.475 ± 0.007 mm, piston head length: 6.350 ± 0.100 mm



  • Standard test load: a total of 8 full weights
  • Temperature range: regular room temperature - 400 ° C (500 ° C optional)
  • Constant temperature accuracy: ±0.5°C
  • Display resolution: 0.1 °C
  • Cutting method: optional manual or automatic cutting
  • Temperature recovery time: less than 4 minutes
  • Print: Micro printer automatic printout
  • Power supply voltage: AC220V / 50HZ or AC110 /600HZ; select different power supply voltages depending on the country of use
  • Testing fluorine material is optional



  • 1 set of weights, total 8 pieces 0.325kg (1# in the 1st class load), 1.2kg, 2.16kg, 3.8kg, 5.KG, 10.0kg, 12.5kg, 21.6kg
  • 1 weight pallet (in the 1st load)
  • 1 hopper
  • 1 die cleaning stick
  • 1 loading rod
  • 1 barrel cleaning rod (assembly)
  • 1 piston rod (in the 1st class load)
  • 1 die
  • 2 Gauze
  • 2 Printing paper
  • 1 power cord
  • 1 copy of the instructions
  • 1 certificate
