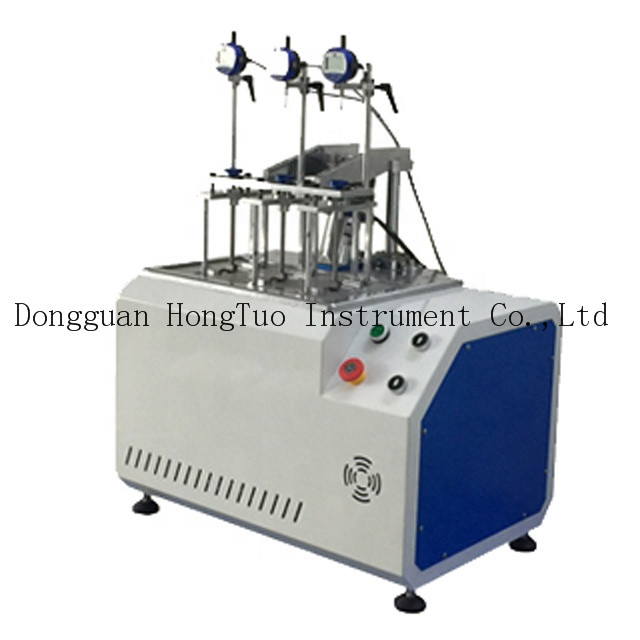

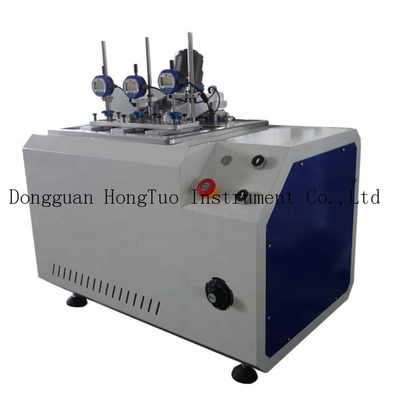

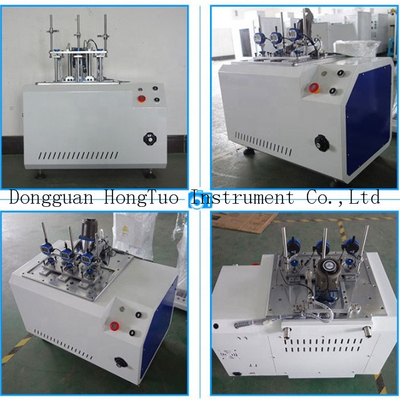

Automatic Computer Control Vicat Apparatus For Plastic Material

Automatic Computer Control Vicat Apparatus For Plastic Material

Application:

This machine is a non-metallic material testing instrument designed and manufactured according to the latest international standards and national standards. It is mainly used for non-metal such as plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting laminates. Determination of the heat distortion temperature of the material and the Vicat softening point temperature. It is easy to operate and precise in control. It is a highly intelligent test instrument widely used in colleges and universities, research institutes and product quality supervision and inspection units. It adopts single-chip control, PID phase-modulated output, with upper limit temperature setting, and automatically stops heating when the test temperature reaches the upper limit temperature.

Standards:

Standards:GB/T 1633, GB/T 8802, GB/T 1634, ISO 2507, ISO 75, ISO 306, ASTM D 1525, ASTM D 648.

FAQ:

Specification:

1) Temperature control range: room temperature to 300 ° C;

2) Heating rate: 120 ° C / h, 50 ° C / h;

3) Maximum temperature error: ±0.5 °C;

4) Temperature measurement point: 1;

5) number of sample racks: 3;

6) Deformation measuring gauge: digital display dial gauge;

7) Deformation measurement range: 0 ~ 1.1mm;

8) Sample support span: 64mm, 100mm;

9) Maximum deformation measurement error: 0.01mm;

10) Heating medium: methyl silicone oil; (prepared by customers)

11) Cooling method: natural cooling above 150 °C, water cooling below 150 °C or natural cooling;

12) Instrument size: 810mm × 470mm × 780mm

13) Space required: 0.5m front and back, 1.5m left and right

14) Power: 2500VA 220VAC 50HZ
