Plastic Moulds Vicat Test Automatic Vicat Apparatus Equipment

Plastic Moulds Vicat Test Automatic Vicat Apparatus Equipment

  • Plastic Moulds Vicat Test Automatic Vicat Apparatus Equipment
  • Plastic Moulds Vicat Test Automatic Vicat Apparatus Equipment
Plastic Moulds Vicat Test Automatic Vicat Apparatus Equipment
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO CE
Model Number: DH-300C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Standard export wooden case
Delivery Time: 7days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Set Per Months
Contact Now
Detailed Product Description
Name: Vicat Softening Point Tester Warranty: One Year
Standard:: GB/T 1633, GB/T 8802, GB/T 1634, ISO 2507, ISO 75... Maximum Deformation Measurement Error:: 0.01mm
Function: Plastic Test Machine Power Supply:: 220VAC 50HZ
High Light:

Plastic Moulds Vicat Apparatus


GB/T 1633 Vicat Apparatus


GB/T 8802 Vicat Machine

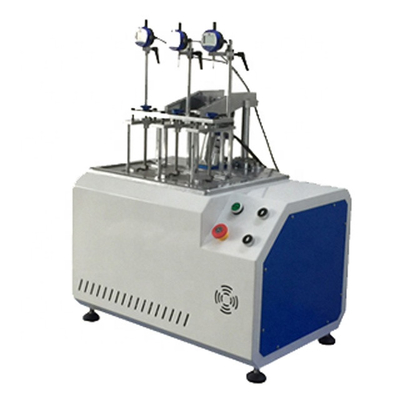

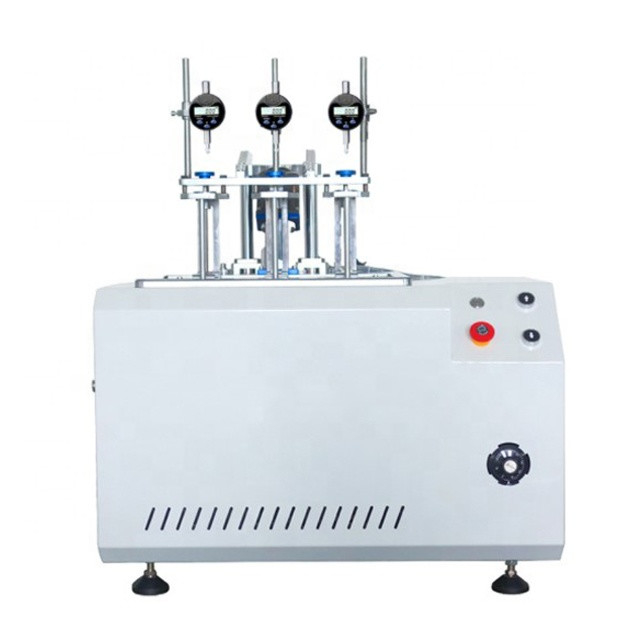

Plastic Moulds Vicat Test Automatic Vicat Apparatus Equipment





This machine is a non-metallic material testing instrument designed and manufactured according to the latest international standards and national standards. It is mainly used for non-metal such as plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting laminates. Determination of the heat distortion temperature of the material and the Vicat softening point temperature. It is easy to operate and precise in control. It is a highly intelligent test instrument widely used in colleges and universities, research institutes and product quality supervision and inspection units. It adopts single-chip control, PID phase-modulated output, with upper limit temperature setting, and automatically stops heating when the test temperature reaches the upper limit temperature.





1) 1 x Host

2) 3 x Sample holder

3) 3 x Hot deformation heads

4) 3 x Vicat pinion

5) 1 x Electric control box

6) 3 x Digital display dial gauge

8) 1 x Signal line

9) 1 x Screw screwdriver

10) 1 x Weight set




Weight(g) 1000 900 500 200 100 50 20 10 5 2 60(Load bar)
Pcs 12 3 3 6 3 3 6 3 3 6 3

Remarks: Users need to have cooling water source and ventilation smoke exhaust equipment




Standards:GB/T 1633, GB/T 8802, GB/T 1634, ISO 2507, ISO 75, ISO 306, ASTM D 1525, ASTM D 648.






1) Temperature control range: room temperature to 300 ° C;

2) Heating rate: 120 ° C / h, 50 ° C / h;

3) Maximum temperature error: ±0.5 °C;

4) Temperature measurement point: 1;

5) number of sample racks: 3;

6) Deformation measuring gauge: digital display dial gauge;

7) Deformation measurement range: 0 ~ 1.1mm;

8) Sample support span: 64mm, 100mm;

9) Maximum deformation measurement error: 0.01mm;

10) Heating medium: methyl silicone oil; (prepared by customers)

11) Cooling method: natural cooling above 150 °C, water cooling below 150 °C or natural cooling;

12) Instrument size: 810mm × 470mm × 780mm

13) Space required: 0.5m front and back, 1.5m left and right

14) Power: 2500VA 220VAC 50HZ

1.Quality Insurance

We guarantee this instrument for one year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster

2.After-sales Service

a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distribute in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646


Sea shippment
Air shippment
International Express:DHL/UPS/FEDEX/TNT
Train shipment
Road shipment
We ill choose the best way to ship the items ASAP

4.Are we manufacturer made copy product or original product?

We are the original manufacturer for density tester,DahoMeter and Quarrz is our own brand.the model starts with DH,or AU,or KS is belongs to us generally.

5.Why choose us

We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field for almost 13 years.
b.Professional researching and technology team.
c.Customer service team.
