Place of Origin: | China |
Brand Name: | Dahometer |
Certification: | ISO CE |
Model Number: | DH-1843-5.5D |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | negotiable |
Packaging Details: | Standard Export Wooden Case |
Delivery Time: | 7days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1000 Set Per Months |
Name: | Digital Plastic Izod Pendulum Impact Tester | Pendulum Energy: | 1J,2.75J,5.5J |
---|---|---|---|
Displaying Method: | LCD In English | Angle Sensor: | Omron Encoder,accuracy 0.01° |
Impact Speed: | 3.5m/s | Pendulum Angle: | 150° |
High Light: | Plastic Izod Impact Tester,Rubber Izod Impact Tester,2.75J izod impact test unit |

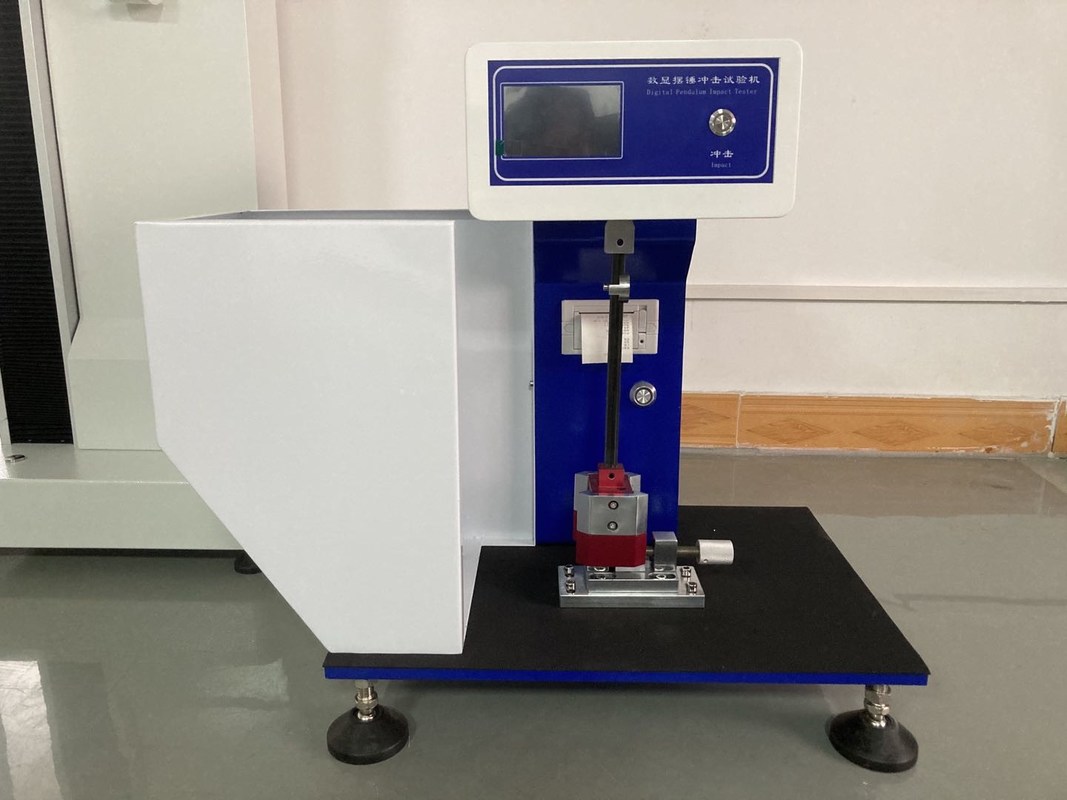

Professional Digital Rubber And Plastic Izod Impact Tester For Lab
Introduction:
Usage: Test the impact toughness of the non-metallic materials.
Suitable material: plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast
stone, plastic appliance and insulation materials.
Applicable zone: scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.
Performance standards
ISO180—2000 Determination of Plastics - Hard Materials Izod Impact Strength
GB/T1843—2008 Rigid Plastic Izod Impact Test Method
JB/T8761—1998 Plastics Izod Impact Testing Machine
ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum
Product Features
A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;
B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.
C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;
D. Aerodynamic impact hammer and FAG Bearings greatly reduce mechanical friction losses
E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;
F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.
G. Built-in mini printer to print the test data
Technical Specifications
Displaying method | LCD in English |
Angle sensor | Omron encoder,accuracy 0.01° |
Impact speed | 3.5m/s |
Pendulum energy | (IZOD-5.5D)1J,2.75J,5.5J |
(IZOD-22D)11J,22J | |
Pendulum angle | 150° |
Distance from the center of pendulum to striking edge | 335mm |
Horizontal distance from striking edge to jaws | 22mm |
Cutter edge radius | R=0.8±0.2mm |
Weight | 85kg |
Power voltage | AC220V±10% 50HZ |
1. Professional Dahometer team and engineer can offer our clients OEM&customizing service.
2. Delivery time is fast and quick respond
3. Many years of experience in foreign export
Packaging and Delivery
1. Wooden box and carton box, careful and tight package, make sure the package is intact.
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 10days
