220V Mask Particulate Filtration Efficiency Tester

220V Mask Particulate Filtration Efficiency Tester

  • 220V Mask Particulate Filtration Efficiency Tester
  • 220V Mask Particulate Filtration Efficiency Tester
  • 220V Mask Particulate Filtration Efficiency Tester
220V Mask Particulate Filtration Efficiency Tester
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO CE
Model Number: DH-PFE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Set Per Months
Contact Now
Detailed Product Description
Product Name:: Professional Particulate Filtration Efficiency Tester Detection Particle Size Grade:: 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 (six Grades)
Detection Resistance Range:: 0 ~ 1000 Pa Power Supply:: 220V
Dimensions(MM):: 850*770*1624 Application: Mask, Melt Blown Fabric
High Light:

220V Particulate Filtration Efficiency Tester

,

GB/T 2626 Particulate Filtration Efficiency Tester

,

Mask PFE Tester

DH-PFE Mask Particulate Filtration Efficiency PFE Tester Professional Particulate Filtration Efficiency Tester



Specification:

1.Applicable filter media:(1)glass fiber filter media(2)PP filter media(3) membrane-coated filter media; etc.

2. Detection particle size grade: 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 µm (six grades)

3. Flow range: 0 ~ 150 l / min

4. Detection resistance range: 0 ~ 1000 Pa

5. Dust source:

(1) Aerosol (DEHS)

Quantity in diameter: 0.18um;

Mass diameter: 0.3um;

Geometric deviation: less than 1.8;

(2)Sodium salt (2% NaCl solution)

Quantity in diameter: 0.075um;

Mass diameter: 0.26um;

Geometric deviation: less than 1.6;

6. Standard test area: 100 cm2

7. Power supply: 220V / 50 Hz

8. System power consumption: < 1500W

9. Dimensions: 850mm*770mm*1624mm





Introduction:



The automatic filter material tester can simulate the actual use environment of the mask or filter material, and test the filtration efficiency and filtration resistance based on the oil mist and salt mist methods required by the standard.

The test parameters meet the requirements of the test methods in NIOSH 42 CFR Part 84 and GB / T 2626 standards.

In addition, the automatic filter tester can also test the permeability of the filter material, the test pore size: 1/1, 1/2, 1/4, 1/8;

Test material: layered mask or filter material;

Test methods: oil mist test and salt mist test;

Test parameters: filtration efficiency, filtration resistance, etc .;

The automatic filter tester can accurately evaluate the filtering performance of masks or filter materials, and provide data basis for the research and development of new filter materials, product quality control, and material performance verification.



Standards:



NIOSH 42 CFR Part 84 Respiratory protective device technical requirements;

GB/T 2626 Respiratory protective equipment-self-priming filter type anti-particulate respirator.





Related terms:



Filtration efficiency: the percentage of particulate matter removed by the filter element under the specified detection conditions;



Oil mist method detection: use DEHS / PAO / DSP and other oily or equivalent materials as aerosols to detect the filtering performance of masks or filter materials;

Salt spray test: a method for detecting the filtering performance of masks or filter materials with NaCl or equivalent halide as an aerosol;





Testing Principle:



Oil mist method:



The dry oil-free compressed air enters the aerosol generator at a certain flow rate to produce aerosols with a certain particle size distribution. After being sieved by a cascade impactor, the particles with a particle size distribution that meets the standard requirements are discharged from the aerosol outlet and enter the test pipeline.It reaches the filter material. Different pressure sensors are installed on both sides of the filter material. During the test, the number of particles upstream and downstream of the filter material is monitored; the entire test process is carried out with a certain flow rate or air volume.



Salt spray method:



The dry oil-free compressed air enters the aerosol generator at a certain flow rate to produce aerosols with a certain particle size distribution. After being sieved by a cascade impactor, the particles with a particle size distribution that meets the standard requirements are discharged from the aerosol outlet and enter the test pipeline.Because the salt mist aerosol is charged with static electricity, the salt mist aerosol needs to be neutralized. And for the salt mist aerosol, it needs to be heated to produce salt particles. The method is: mixing the aerosol that meets the particle size requirements with the heating gas, and then the water in the aerosol is evaporated to produce salt particles.It reaches the filter material. Different pressure sensors are installed on both sides of the filter material. During the test, the number of particles upstream and downstream of the filter material is monitored; the entire test process is carried out with a certain flow rate or air volume.



Structure:

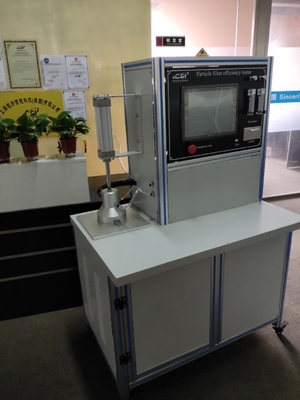

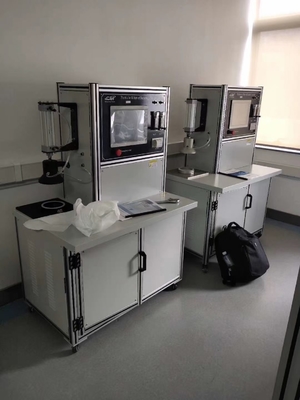

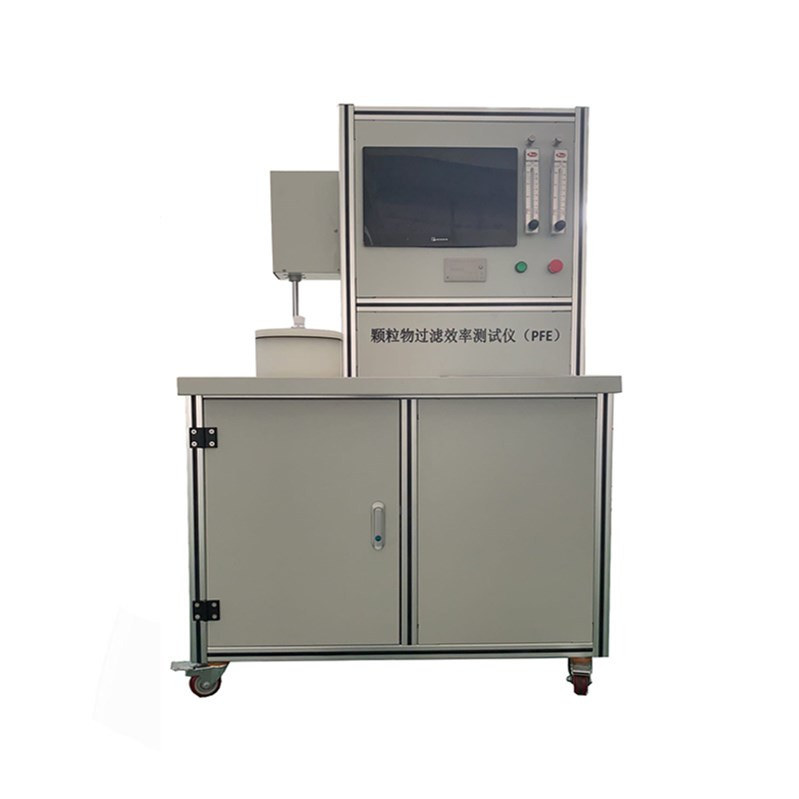

The structure of the instrument is shown below:

Including:Spray pumps, electrostatic neutralizers, cylinders, flow meters, PLC industrial control systems, fans, exhaust gas filtration, flow transmitters, differential pressure sensors, touch screen computers, oil mist aerosol generators, salt mist aerosol generators, etc;

The instrument consists of the following parts:

Salt mist aerosol generating system: can produce salt aerosol that meets the standard particle size distribution requirements;

Oil mist aerosol generation system: can produce oil and gas aerosols that meet the standard particle size distribution instructions;

Salt mist aerosol heating system: produces salt particles;

Static route system: used to neutralize static electricity in salt spray aerosols;

Mixed cavity: mixing heated gas and salt mist aerosol to produce salt particles that meet the requirements;

Aerosol switching system: easy to switch aerosol;

Filtration fixture: used to hold filter material or mask;

Differential pressure sensor: used to measure the differential pressure between upstream and downstream of the filter material;

Particle counter: used to measure the number of particles upstream and downstream of the filter material;

Flow controller: control and adjust the measured air volume;

Others;
