Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-IM |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 1000 sets per months |
| Name: | Mini Desktop Injection Molding Machine Manual Vertical | Advantages: | Stable,Stamping Pressure |
|---|---|---|---|
| Maxi. Temperature: | 490℃ | Temperature Probe: | Fever Laps |
| Maximum Compressing Stoke: | 135mm | Heating Cavity Size(mm): | 30*70 |
| Highlight: | 230V Plastic Injection Molding Machine,220V Plastic Injection Molding Machine,400w Mini Injection Molding Machine |
||

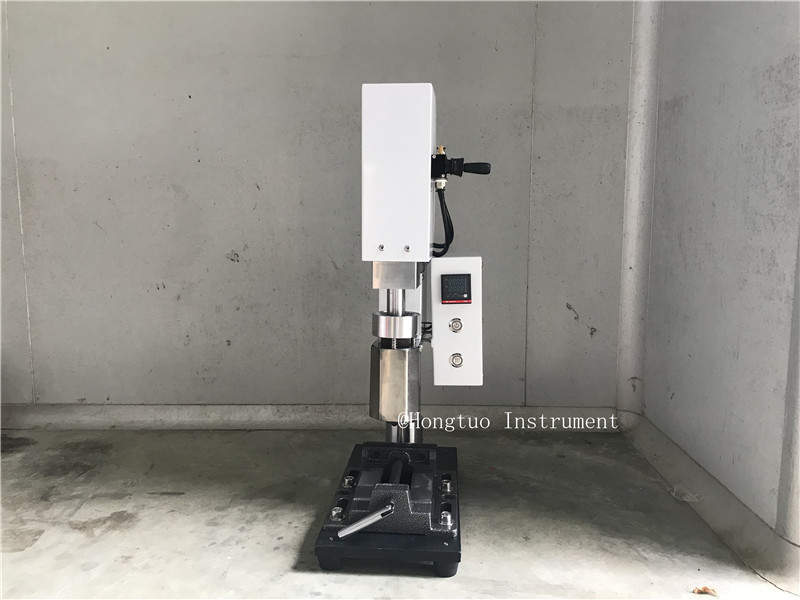

Mini Desktop Injection Molding Machine Manual Vertical
Introduction:
This Lab mini injection molding machine is extremely easy to operate and can be used for short production runs as well as prototype models with cheap cast resin moulds
Advantages:
1. Pressure strong, stable.
2. Stamping pressure, Temperature, transfer time ,adjustable
3. Adjustable mechanical paper feeding and receiving
Main parameters:
Maxi. temperature:490℃
Plunger diameter:30mm
Maximum compressing stoke:135mm
Heating cavity size:30*70mm
Maximum shot volume:30cm3(30g)
Mold max. size:120*120*80mm
Base size:400*200mm
Vise stoke size:135mm*115mm
Machine weight:55kg
Power supply:400w
Voltage:220V/230V, 50/60HZ
Configuration:
| Machine host | Thermostat |
| Power button | Power line including fuse |
| Switching Power Supply | Heating relay |
| Temperature probe | Fever laps |
