| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | KSU-250-ST |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 5 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | New Automatic Mini Plastic Injection Molding Machine For Plastic Material | Injection Rate: | 125mm |
|---|---|---|---|
| Clamping Force: | 35 Tons | Machine Weight: | About 1300kg |
| Machine Dimensions(L*W*H): | 1.6*1*2.5M | ||
| Highlight: | PPS Mini Injection Molding Machine,LCP Mini Injection Molding Machine,PBT Plastic Injection Molding Machine |
||

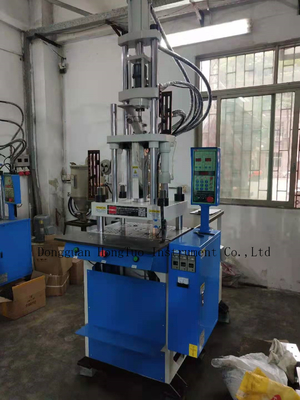

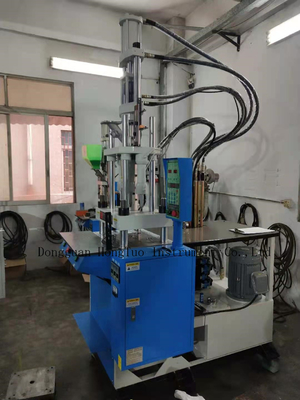

New Automatic Mini Plastic Injection Molding Machine For Plastic Material
Main Features:
1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.
Application:
Applicable industries: plugs, sockets, connectors, switches, backpack buckles, chargers, electrical appliances, color palettes, hoses, hard tubes, soft boards, hard boards, mechanical parts, automobiles, meters, electronic parts, stationery, lampshades, Instrument shells, cabinets, computers, toothbrush handles, accessories, golf balls, corsages, antennas, badges, buttons, furniture, sports goods, decorations, glue flowers, small building materials, connectors, telecommunications, keychains, Toys, pens, cosmetic bottle joints, lenses, medical supplies, cams, zippers, daily products and other parts are injection molded.
Suitable for various thermoplastics: PC/ABS, PC, PS, PVC, PP, PU, PA, POM, PMMA, PET, PPO, PPS, ABS, PE, LCP, PBT, acrylic, melamine, 372, nylon , Polypropylene, polystyrene, etc.
Main Parameters:
Program |
Description |
UNIT | KSU-250-ST | ||
Injection unit |
Screw Diameter | mm | 22 | 26 | 30 |
| Injection Pressure | kg/cm2 | 2300 | 1800 | 1600 | |
| Max.Shot Weight(PS) | g | 45 | 60 | 71 | |
| Injection Rate | mm | 125 | |||
| Screw Speed Max. | Turn | 0-260 | |||
| Nozzle Retraction | mm | 170 | |||
| Number of temperature Control | Snt | 3/4 | |||
Clamping unit |
Clamping Force | Tons | 35 | ||
| Platen Size | mm | 550*380 | |||
| Distance Between Tie Bere | mm | 370*205 | |||
| Min.Mold Height | mm | 60/120 | |||
| Opening Stroke | mm | 200 | |||
| Max. Open daylight | mm | 260/320 | |||
| Ejection Force | Tons | 2 | |||
PowerHeading unit |
Max. Hydraulic Pressure | kg/cm2 | 140 | ||
| Pump discharge volume | 1/min | 36 | |||
| Pump Motor power | kw/HP | 4/5 | |||
| Electric heating capacity | kw | 2.3 | |||
| Total electricity consumption | kw | 6.3 | |||
| Other | Machine Weight | kg | 1300 | ||
| Machine Dimensions(L*W*H) | m | 1.6*1*2.5 | |||
Packing&Shipping:
1. We will arrabge to manufacture the machine the second day after your confirmation.
2. Before shipment,we will check and test the machine carefully.
3. We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
