ASTM D3078 Vacuum Air Leak Detector For Pharmaceutical Vacuum Pressure Sealing Tester

Product Details:

Place of Origin:	China
Brand Name:	Dahometer
Certification:	ISO,SGS
Model Number:	DH-LT-02P

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export wooden case
Delivery Time:	about 7 days
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per months

Contact Now

Detailed Product Description

Features:	Fully Automatic Test Process With One Click To Complete The Test	Name:	ASTM D3078 Vacuum Air Leak Detector For Pharmaceutical Vacuum Pressure Sealing Tester
Vacuum:	0~-90 Kpa	Response Speed:	＜5 Ms
Resolution:	0.01 Kpa	Built-in Mode:	Single Point Mode, Increment Mode

ASTM D3078 Vacuum Air Leak Detector For Pharmaceutical Vacuum Pressure Sealing Tester

Instruction:

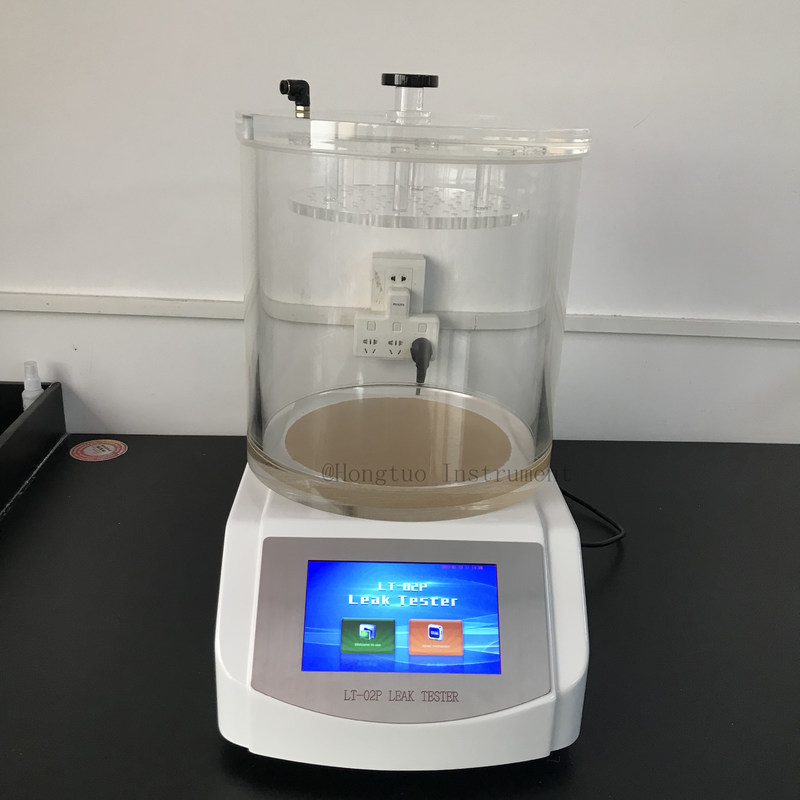

LT-02P sealing tester is suitable for seal test of flexible packaging in food, pharmaceutical, daily chemical, electronics and other industries. The test can effectively compare and evaluate the sealing process and sealing performance of flexible packaging, and provide scientific basis for determining relevant technical indexes. It can also be used to test the sealing performance of the samples after the drop and pressure test. Compared with the traditional design, the intelligent test is realized: the preset of multiple test parameters can greatly improve the detection efficiency; the test mode of increasing pressure can be used to quickly obtain the sample leakage parameters and observe the creep, fracture and leakage of the sample under the stepped pressure environment and different holding time. Vacuum attenuation mode is suitable for automatic sealing detection of high value content packaging in vacuum environment. Printable parameters and test results (optional for printer).

Features:

Fully automatic test process with one click to complete the test
Built-in high precision sensor, faster response
Various modes available to meet the testing needs of different samples
Multiple parameters presets for each mode, quick selection for testing
Double air path design, more accurate test
The number of test groups can be accumulated automatically, and the number of tests can be counted
Optional needle printer can save and print test results
Up to 500 test results can be saved with printing function (optional)
Vacuum degree automatic maintenance and back-blowing unloading
Super thick plexiglass vacuum chamber
Configuration pressure regulating system, easy operation, easy maintenance
Three level management authority (to be purchased separately)
Gradient booster mode, more humanized
Real-time stop, pressure holding time, higher accuracy

Parameters

Index	Parameter
Vacuum	0~-90 Kpa
Response speed	<5 ms
Resolution	0.01 Kpa
Sensor precision	≤0.5
Built-in mode	Single point mode, increment mode
Screen	7-inch touch screen
Pressure regulation range	0.2-0.7 Mpa
Interface size	Φ6
Pressure holding time	0-999999 s
Vacuum chamber (other size customized)	Φ270 mmx210 mm (H) Standard size) Φ360 mmx585mm (H)(optional) Φ460 mmx330mm (H)(optional)
Equipment size	420(L)X 300(B)X 165(H)mm
Air source	Compressed air (supplied by user)
Printer(optional)	Needle type
