Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | HT-6175-A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | Benchtop Lab Two Roll Mill Machine Rubber Plastic Milling Machine | Feature: | LED Digital Display, |
|---|---|---|---|
| Heating Method: | Imported Electric Heating Tube | Heating Time: | About 25min From Room Temperature To 200℃ |
| Temperature Accuracy: | ±2℃ | Volume: | 990×430×1150 (W×D×H)mm |

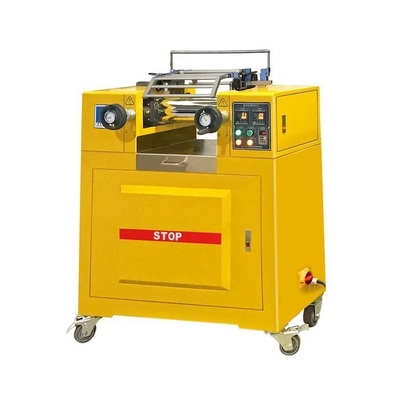

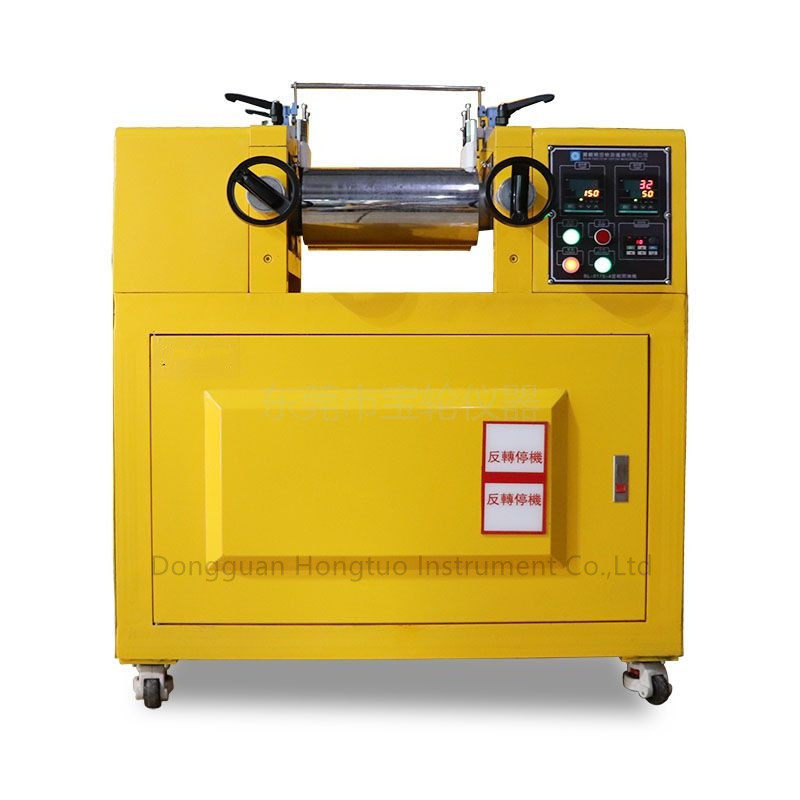

Benchtop Lab Two Roll Mill Machine Rubber Plastic Milling Machine
It is supplied as standard with variable speed roll drive as well as electric roll heating system. The mill features available upon quote request.
Specification:
| Temperature range | normal temperature~300℃ |
|
Thermostat: |
LED digital display, key setting input, digital display output |
|
Heating method |
imported electric heating tube (three-stage heating) |
|
Heating time |
about 25min from room temperature to 200℃ |
|
Temperature accuracy |
±2℃ |
|
Roller size: |
Ø120× L320mm |
|
Roller spacing |
0~6mm adjustable |
|
Roller speed |
0~28r/min single frequency converter speed regulation (Taiwan Zhongchen) |
|
Roller surface |
HRC58~62 mirror chrome plating |
|
Rotation ratio |
1:1.27 |
|
Power |
9KW (motor 1.5KW) |
|
Safety protection: |
pull rod emergency stop, knee top reversal and other security devices |
|
Volume |
990×430×1150 (W×D×H)mm |
| Power supply | AC380V, 22A three-phase five-wire (customer-provided power connection port) |
| Weight | about 375kg |
Accessories:
1 scraper and 1 tray each;
1 copy of the product manual and 1 quality card;
1 oil gun.
