Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-OI-02 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | Digital Limited Oxygen Index Tester Laboratory LOI Test For PVC | Standards:: | JIS7201, BS2782, ANSI/ASTM, D2863, ISO4589 |
|---|---|---|---|
| Oxygen Concentration (oxygen Index): | Direct Reading With Digital Display | Oxygen Concentration (oxygen Index) Sensor: | Imported From The United States. |
| Measuring Range: | 0-80%, Resolution: 0.1L/min | Measurement Accuracy: | 2.5 Level |

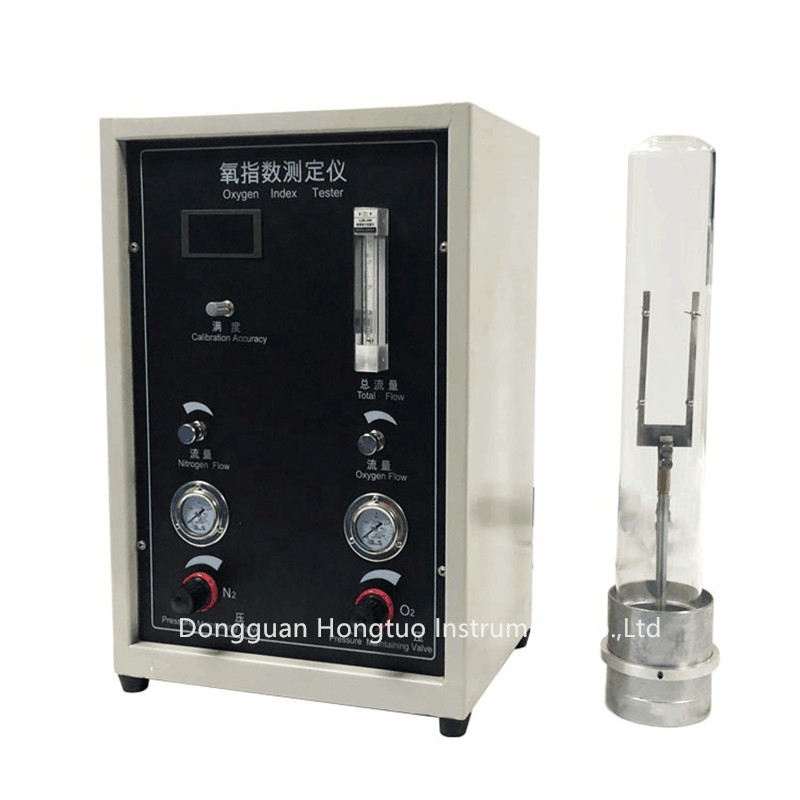

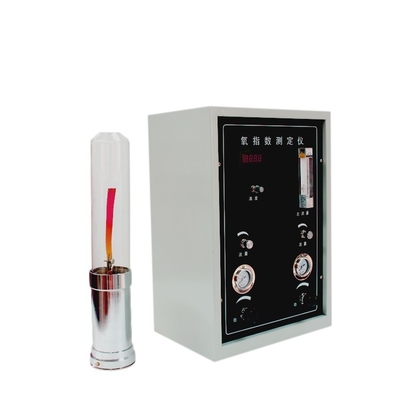

Digital Limited Oxygen Index Tester Laboratory LOI Test For PVC
Application:
It is used to judge the difficulty of burning when the material is in contact with flame in the air. It is suitable for homogeneous solid materials, laminated materials, soft sheets and film materials.
Parameter:
| Oxygen concentration (oxygen index) | direct reading with digital display |
| Oxygen concentration (oxygen index) sensor | imported from the United States. |
| The two pressure gauges provide oxygen output pressure and nitrogen output pressure respectively, and the air pressure can be adjusted through a regulating valve | |
| Measuring range | 0-80%, resolution: 0.1L/min |
| Measurement accuracy | 2.5 level |
| Combustion cylinder | Quartz glass cylinder, inner diameter: 75mm height: 480mm |
| Gas flow rate at the top of the combustion tube | 90mm±10mm/s |
| Gas flow rate in the combustion cylinder | 40mm±2mm/s |
| Input pressure | adjustable from 0.25 to 0.5 Mpa |
| Oxygen and nitrogen mixed gas inlet | including pressure regulator valve, flow regulating valve and mixing chamber. |
| Specimen holder can be used for soft and hard plastics. | |
| Igniter | dedicated butane handheld electronic electric firearm |
| Gas | industrial grade oxygen, nitrogen. |
| Timer accuracy | ±0.5s |
| Power requirements | AC220 (±10%) V/50HZ. |
