| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-OI-02 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | ASTM D2863 Limiting Oxygen Index Of PVC Oxygen Index Test Apparatus | Standards:: | ANSI/ASTM, D2863, ISO4589 |
|---|---|---|---|
| Oxygen Concentration (oxygen Index): | Direct Reading With Digital Display | Oxygen Concentration (oxygen Index) Sensor: | Imported From The United States. |
| Measuring Range: | 0-80%, Resolution: 0.1L/min | Application: | Plastic Polymer |

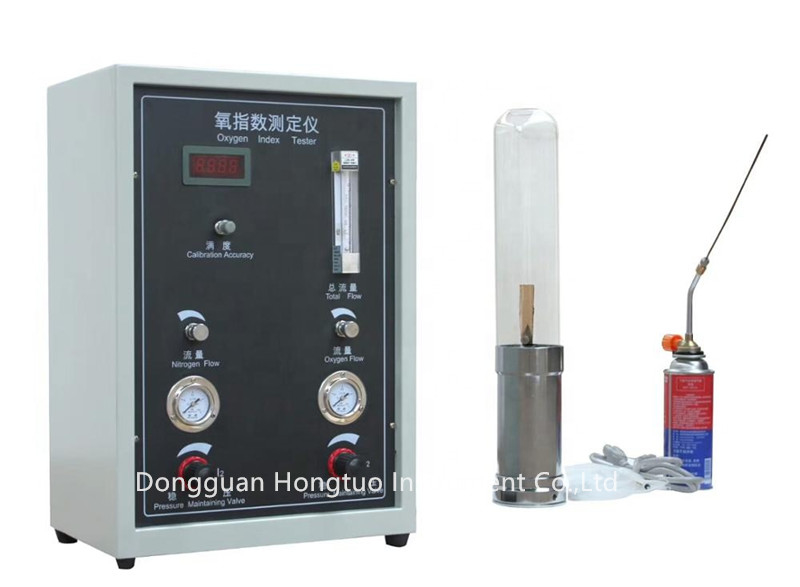

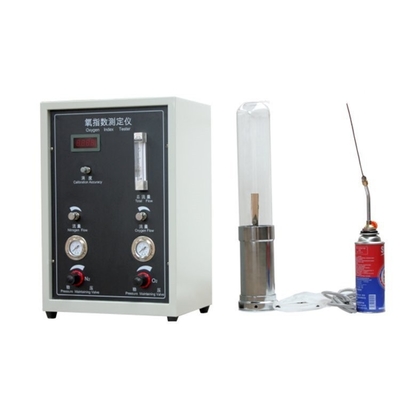

ASTM D2863 Limiting Oxygen Index Of PVC Oxygen Index Test Apparatus
Standards:
Comply with GB/T2406 "Plastic Flammability Test Method-Oxygen Index Method" and JIS7201, BS2782, ANSI/ASTM, D2863, ISO4589, test standards.
Parameter:
| Oxygen concentration (oxygen index) | direct reading with digital display |
| Oxygen concentration (oxygen index) sensor | imported from the United States. |
| The two pressure gauges provide oxygen output pressure and nitrogen output pressure respectively, and the air pressure can be adjusted through a regulating valve | |
| Measuring range | 0-80%, resolution: 0.1L/min |
| Measurement accuracy | 2.5 level |
| Combustion cylinder | Quartz glass cylinder, inner diameter: 75mm height: 480mm |
| Gas flow rate at the top of the combustion tube | 90mm±10mm/s |
| Gas flow rate in the combustion cylinder | 40mm±2mm/s |
| Input pressure | adjustable from 0.25 to 0.5 Mpa |
| Oxygen and nitrogen mixed gas inlet | including pressure regulator valve, flow regulating valve and mixing chamber. |
| Specimen holder can be used for soft and hard plastics. | |
| Igniter | dedicated butane handheld electronic electric firearm |
| Gas | industrial grade oxygen, nitrogen. |
| Timer accuracy | ±0.5s |
| Power requirements | AC220 (±10%) V/50HZ. |
Chassis and part of the structure:
1. Control box: The square shape is processed by the processing machine tool, and the arc shape is beautiful and generous. The surface is treated with beautiful paint, anti-corrosion and anti-rust.
2. Combustion tube: high-temperature high-quality glass tube (inner diameter ￠750mm, length 480mm)
3. Outlet inner diameter: φ40mm
4. Suspended: Witness can be clamped freely.
