Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO CE |
| Model Number: | HT-1600-EL |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 1000 Set Per Months |
| Name: | Automatic V Shaped Notch Maker For Izod, Charpy & Impact Tests Labs | Warranty: | One Year |
|---|---|---|---|
| Feed Speed:: | 30mm/min | Feed Amount:: | According To The Standard |
| Power Supply Voltage:: | 220V | Power: | Electronic |

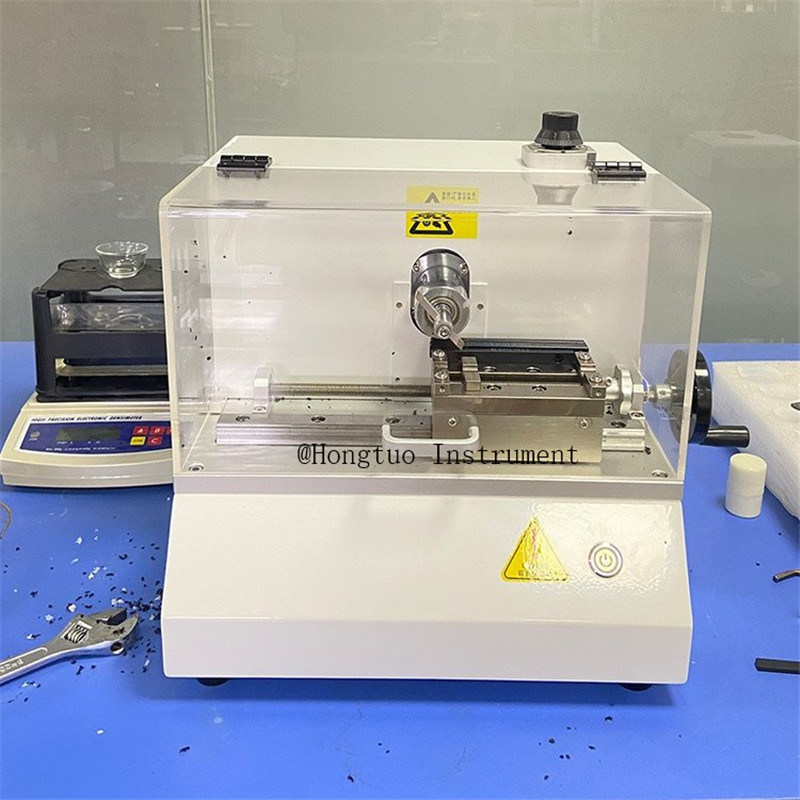

Automatic V Shaped Notch Maker For Izod, Charpy & Impact Tests Labs
This equipment is the sample preparation equipment for notched samples used in the impact toughness test of non-metallic materials by cantilever beam and simply supported beam impact testing machine;This equipment can be used in the laboratory of scientific research institutions, colleges and universities, non-metallic material manufacturers and other units to make notched samples
Basic Standard:
(1)ISO179—2010 Plastic Determination of impact properties of simply supported beams
The 1st part:Non-instrumental impact test;
(2)German version EN ISO 179-1:2010;
(3)ISO180—2001ISO 180-2000 Plastic--Determination of Izod impact strength;
(4)GB/T1043-2008 Plastic Determination of impact properties of simply supported beams
The 1st part :Non-instrument impact test;
(5)GB/T1843—2008 Plastic Determination of impact strength of cantilever beam
Specifications:
| Workbench stroke | >160mm |
| Feed speed | 30mm/min |
| Sample type | Ⅰmodel |
| Notch type: according to tool specifications | |
| A Model 45°±1° R=0.25±0.025mm | |
|
B Model 45°±1° R=1.0±0.025mm |
|
|
C1 Model Notch thickness :0.8±0.1mm |
|
|
C2 Model Notch thickness:2.0±0.2mm |
|
| Feed amount: according to the standard | |
| Outer Dimension | 600mm×270mm×300mm |
| Power supply voltage: | 220V, single-phase three-wire system |
