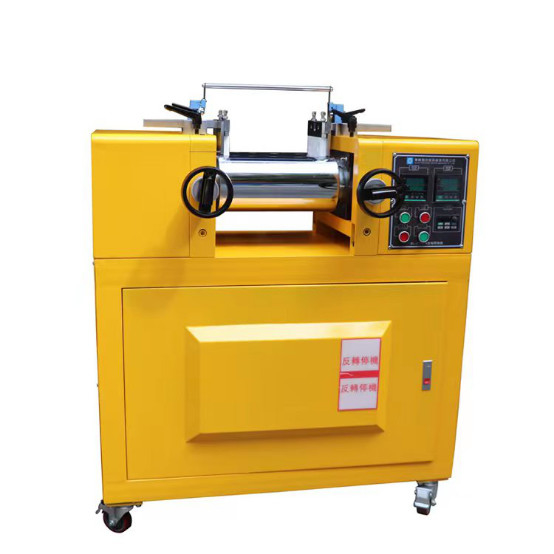

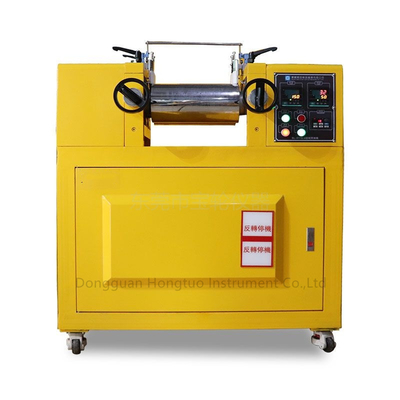

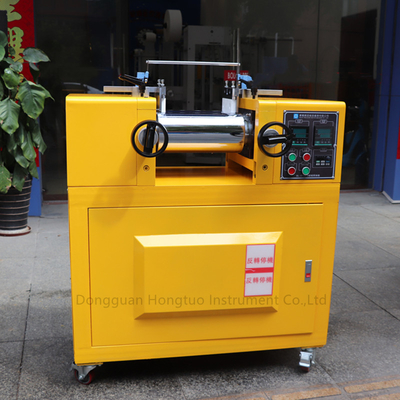

Electric Heating/Single Speed Governing/Meter Type/Double Roll Mill

Electric Heating/Single Speed Governing/Meter Type/Double Roll Mill

introduction:

It is suitable for plasticizing and dispersing for color master batch, PVC, plastic and pigment. The machine adopts special mold for electric heating.

Tool, double-roller mirror chrome plating, uniform temperature. The frequency converter installed in this machine can adjust the roller's speed at will.

Speed to meet the dispersion of raw materials of different formulations.

Specification:

1. Temperature range: normal temperature～300℃

2. Thermostat: LED digital display, key setting input, digital display output

3. Heating method: imported electric heating tube (three-stage heating)

4. Heating time: about 25min from room temperature to 200℃

5. Temperature accuracy: ±2℃

6. Roller size: Ø120× L320mm

7. Roller spacing: 0～6mm adjustable

8. Roller speed: 0~28r/min single frequency converter speed regulation (Taiwan Zhongchen)

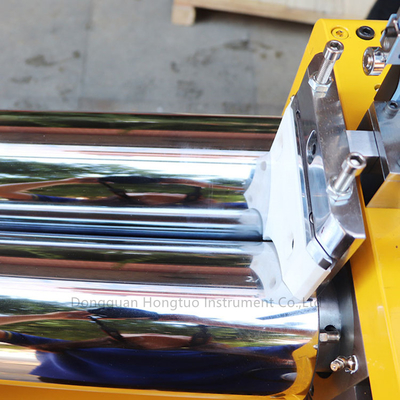

9. Roller surface: HRC58~62 mirror chrome plating

10. Rotation ratio: 1:1.27

11. Power: 9KW (motor 1.5KW)

12. Safety protection: pull rod emergency stop, knee top reversal and other security devices

13. Volume: 990×430×1150 (W×D×H)mm

14. Power supply: 3∮, AC380V, 22A three-phase five-wire (customer-provided power connection port)

15. Weight: about 375kg

Accessories:

1 scraper and 1 tray each;

1 copy of the product manual and 1 quality card;

1 oil gun.
