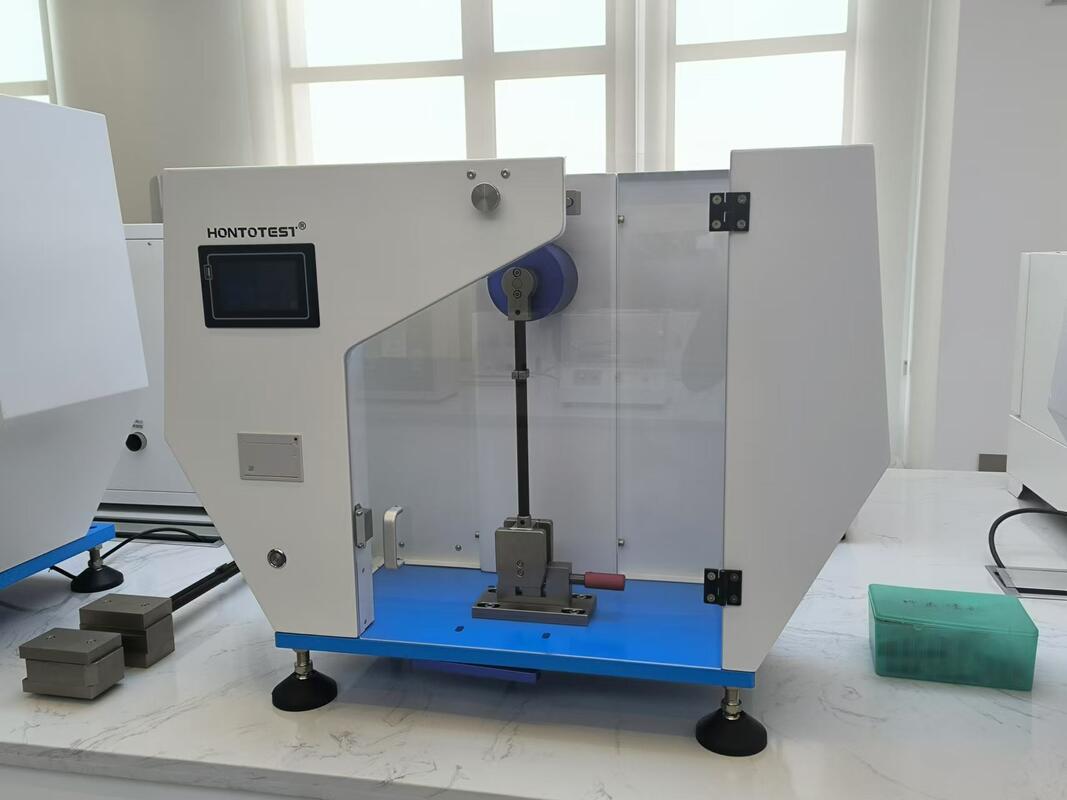

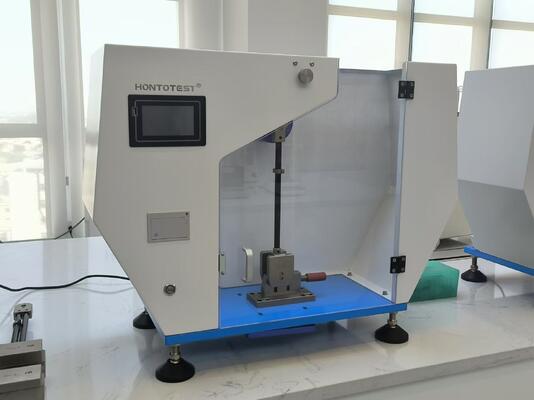

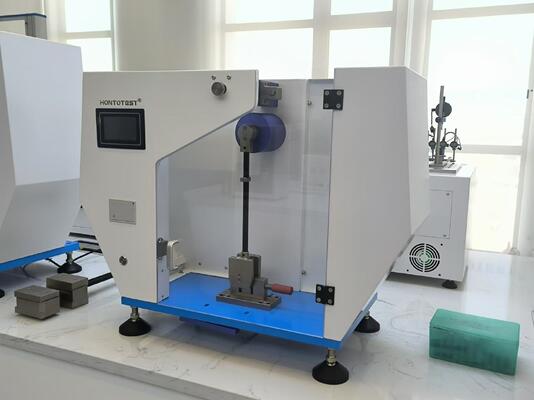

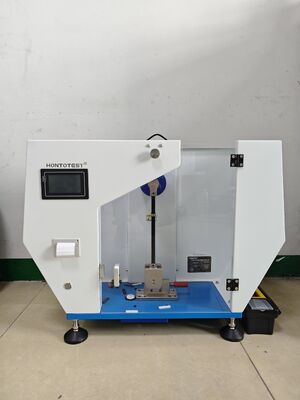

Izod Impact Tester

Usage:

Test the impact toughness of the non-metallic materials.Suitable material: plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials.

Application:

scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.

Performance standards

ISO180—2000 Determination of Plastics - Hard Materials Izod Impact Strength

ISO13802-1999 Verification of pendulum impact-testing machines used for charpy, lzod

andtensile impact-testing of plastics

GB/T1843—2008 Rigid Plastic Izod Impact Test Method

JB/T8761—1998 Plastics Izod Impact Testing Machine

ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum

Product Features

A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;

B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.

C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;

D. Aerodynamic impact hammer and FAG Bearings greatly reduce mechanical friction losses

E.Automatic calculation of the final result, 20 sets of the test data can be stored and averaged;

F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.

G. Built-in mini printer to print the test data.

Technical Specifications

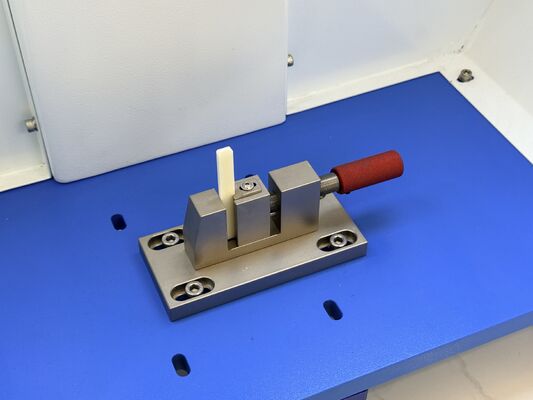

The sample type meets the requirements of GB1843, ISO180 and JB/T8761 standards.

Remarks: Pendulum energy can be selected according to requirements.

Standard Configuration:
