Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | DahoMeter |
| Certification: | CE |
| Model Number: | HT-1043-5D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD699-USD1599 |
| Packaging Details: | standard exporting wooden package |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 200 |
| Model: | HT-1043-5D | Pendulum Energy: | 1J、2J、4J、5J |
|---|---|---|---|
| Test Angle: | 150° | Impact Speed: | 2.9m/s |
Model:HT-1043-5D HT-1043-15D HT-1043-50D
Application:

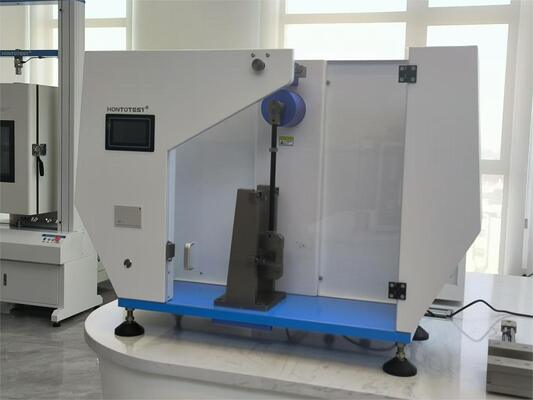

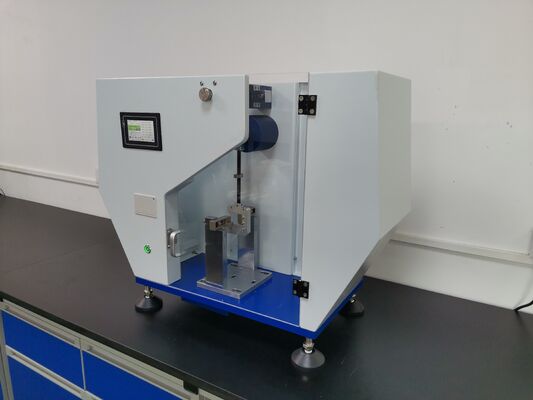

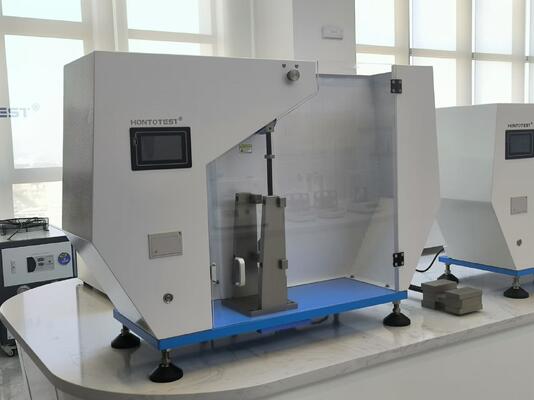

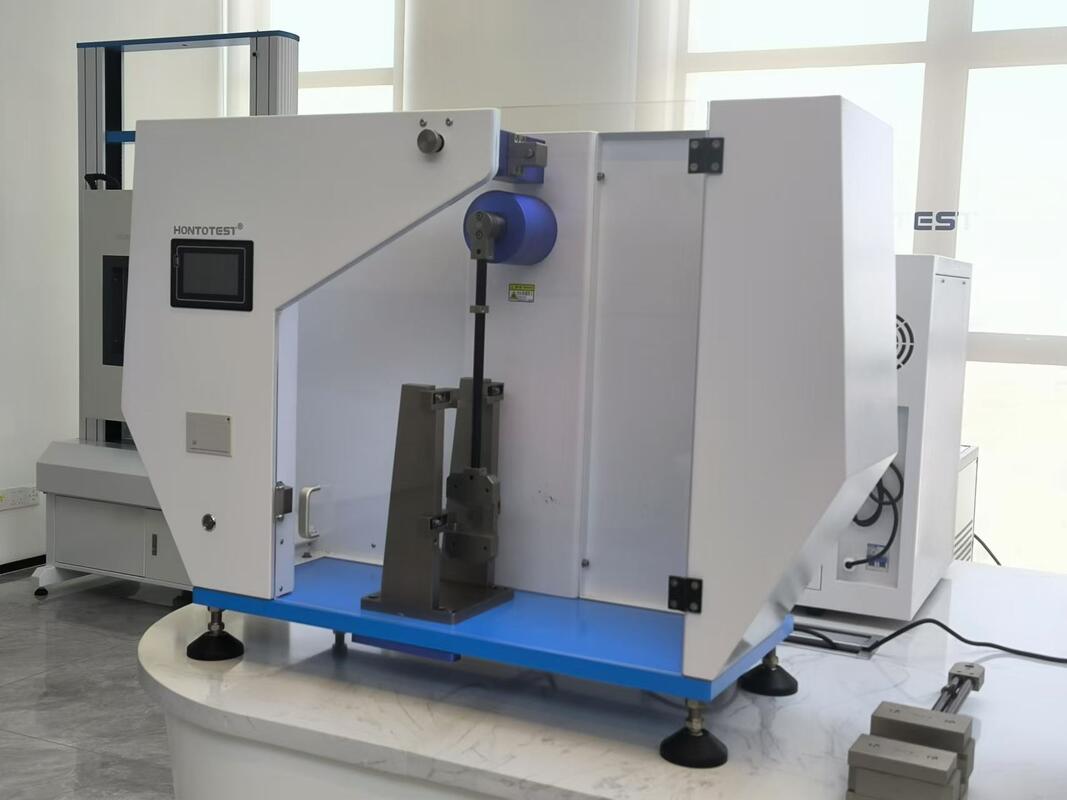

This series of digital impact testing machine is mainly used for the
determination of impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulating materials, etc. It is the ideal testing equipment for the chemical industry, research institutes, universities, quality inspection, etc.
Features:
1. This series of impact testing machine is an intelligent digital display impact testing machine developed by micro-computer technology. It can automatically correct the energy loss caused by friction and wind resistance, and get rid of the numerical chart of energy correction due to the influence of resistance. (The detection of the residual energy of the pendulum and the correction of the energy loss after the sample breaks are completed once in the impact process).

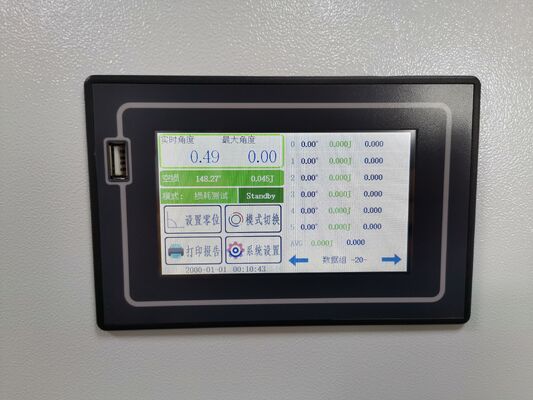

2. This series of impact testing machines adopts electronic display test results to make the readings more intuitive and improve the accuracy and accuracy of the impact machine.
3.Using rotary encoder garden grating angle measurement technology, with advantage of high precision, good stability and large measurement range, digital displaying the thrust energy, impact strength, pre-elevation angle, elevation angle, average value, and energy loss automatic correction.
Standards:
The main technical parameters are in full compliance with the requirements of IS0 179-2000, ISO13802,GB/T 1043-2008, JB/T 8762-1998, GB/T 1451-2005, GB/T18743-2002
Specification:
| Model | HT-1043-5D | HT-1043-15D | HT-1043-50D |
| Pendulum energy | 1J,2J,4J,5J | 7.5J,15J | 25J,50J |
| Test angle | 150° | ||
| Impact speed | 2.9m/s | 3.8 m/s | 3.8 m/s |

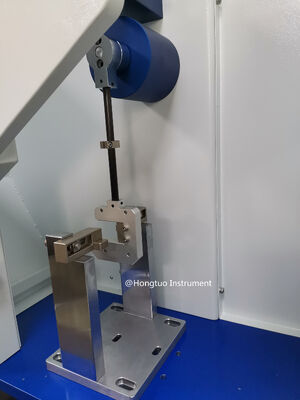

| Pendulum center distance | 230mm | 395mm | 395mm |
| Impact blade fillet radius | R=2mm ±0.5mm | ||
| Impact blade angle | 30°±1° | ||
| Support blade corner radius | R=1mm±0.1mm | ||
| Energy display accuracy | 0.001J | ||
| Angular resolution | 0.04° | ||
| Jaw support spacing | 40mm,60mm,62mm,70mm,95mm | ||
| Output method | Print output or USB disk output | ||
| Power supply | 110～230V 50/60Hz | ||
| Appearance dimension (L*W*H) | 85cm*37cm*65cm | 106cm*37cm*78cm | |
Standard Configuration of HT-1043-5D:
| Item | Description | Qty | Unit | Remark |
| Main Host | Impact Test Machine | 1 | Set | |
|
Accessories Box
|
1J Impact Pendulum | 1 | Set | |
| 2J Impact Weights | 1 | Set | ||
| 4J Impact Weights | 1 | Set | ||
| 5J Impact Weights | 1 | Set | ||
| Specimen Grip | 1 | Set | ||
| Wrench | 1 | Set |
Standard Configuration of HT-1043-15D:
| Item | Description | Qty | Unit | Remark |
| Main Host | Impact Test Machine | 1 | Set | |
|
Accessories Box
|
7.5J Impact Pendulum | 1 | Set | |
| 15J Impact Weights | 1 | Set | ||
| Specimen Grip | 1 | Set | ||
| Wrench | 1 | Set |
Standard Configuration of HT-1043-50D:
| Item | Description | Qty | Unit | Remark |
| Main Host | Impact Test Machine | 1 | Set | |
|
Accessories Box
|
25J Impact Pendulum | 1 | Set | |
| 50J Impact Weights | 1 | Set | ||
| Specimen Grip | 1 | Set | ||
| Wrench | 1 | Set |
Contact Person: Mrs. Julie Zhong
Tel: 86-13267004347
Fax: 86-769-2318-1253
