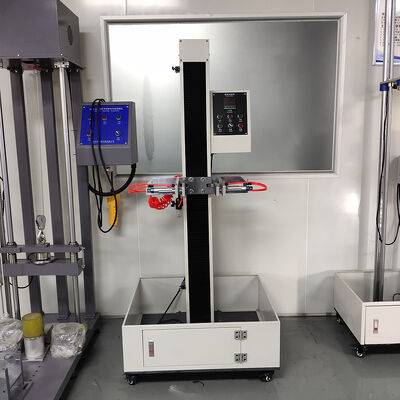

Oriented Drop Testing Machine HT-SXD150

Free Fall Test Machine HT-QD315

Introduction:

This device is suitable for free-fall testing of small consumer electronic products and components such as mobile phones, walkie-talkies, electronic dictionaries, apartment intercoms, chargers, power supplies, and CD/MD/MP3 players.

Features:

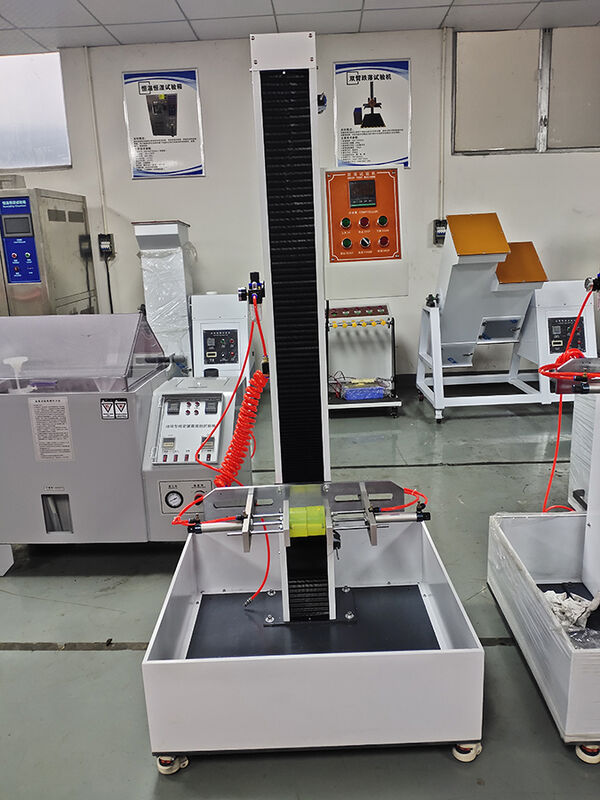

This machine employs a pneumatic structure. The test specimen is placed in a special fixture (adjustable stroke) and clamped securely. Pressing the drop button releases the cylinder, and the specimen undergoes a free-fall test. The drop height is adjustable and includes a height gauge to indicate the drop height. Various drop test platforms are available to meet different testing standards.

Testing Standard:

JIS C 0044 IEC 60068-2-32

Technical Parameters:

1. Maximum specimen weight: 2Kg

2. Effective drop height: 300~1500mm

3. Drop height indication: 1cm

4. Drop height display: LED instrument digital display

5. Maximum specimen size: 300*400mm

6. Drop floor medium: Steel plate

7. Drop method: All-around drop (edges, corners, surfaces)

8. Transmission method: Electric lifting, pneumatic drop

9. Base plate size: 800*750*10mm

10. Operating air pressure: <1Mpa

11. Machine dimensions (approx.): 800*750*1900mm

12. Machine weight: 80kg

13. Power supply: 1∮, 220V, 5A

Features:

1. The enclosure is treated with electrostatic baking paint. The overall design is reasonable, ensuring safe, stable, and precise operation, and the machine is aesthetically pleasing.

2. Pneumatic clamping of products, with silicone rubber at the front of the clamps to prevent product deformation.

3. Electric lifting of the test height, with a high-precision instrument indicating the test height.

4. Equipped with a protective case to prevent products from being thrown out if dropped.
