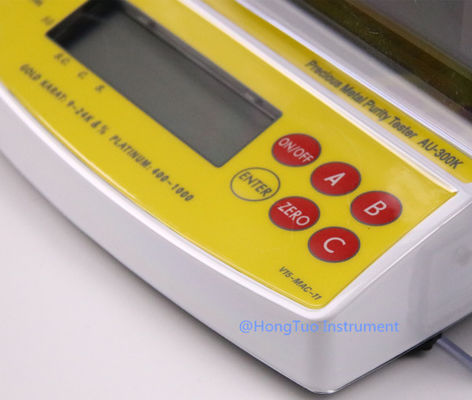

Digital Electronic 3000g Gold Purity Tester ( CE , FCC Certification )

Application:

pawnbroking,jewelry industry,banking industry,jewelry testing center,mining industry,precious metal recycling,precious metal materials researching laboratory.,etc.

These series instrument gold tester is the dramatic updating and upgrading products.Compared with other competing products,it has been focused on enhancing weighting resolution,simplified operation procedure and operation method,upgraded software application function,improved reliability of measuring result. offer respectively three content measuring model for gold,platinum,silver and one alloy measuring model;

No need to bundle samples.Following value can be displayed precisely and quickly with only two procedure:

(1)karat value,percentage content,density for gold

(2)PT value,percentage content,density for platinum

(3)S value,percentage content,density for silver

(4)percentage content,density for other alloy.

Measuring Type:

Precious metal.such as gold,Karat gold,platinum,silver.

Mixed metal or other alloy metal.

Jewelry materials.such as ring,necklace,bracelet,watchband,belt fastener,gold ingot,gold bar,statue,coin.,etc.

Notes:

Please check the samples to be tested firstly when do testing:

(1).products of which inside is hollow

if the hollow is closed.water or other liquids can't get access into,the samples can't be tested

if the hollow is opened,water or other liquids can get access into,the samples can be tested

(2).products set with precious stones------can't be tested

(3).products of which the density is very close to precious metal------can't be tested

Features:

• Distinguish whether the gold,karat gold,platinum,silver,other precious metal is the genuine or not.
• Test the purity of gold,karat gold,platinum,silver to confirm if the marked content is correct or not.
• No need to cut samples;also it can be measured immediately.
• Can shift to measure Karat and purity percentage of gold-silver -copper,gold-copper,gold-silver respectively.
• Function of density measuring and normal gram scale.
• Either water or alcohol would be as medium.
• Function of setting actual water temperature.
• Adopt completed injection molding PC sink(length:15.3cm X width10.7cm X 9.3cm)
• Including RS-232 interface;It's convenient to connect PC and printer.AU-40 could be optionally availabe to print result.
• Adopt injection moulding windproof dustproof shield;Convenient configuration;Better durability.
• Power supply:AC 100V-240V;50HZ/60HZ(Europe standard)
• Weight/packing size:4.5kg/length 42.5cm X width 17.5cm X height 32.5cm

Measurement Resolution and Range:

• AU-300K weighting resolution:0.005g,minimum weight:4g,density resolution:0.001g/cm3
• AU-600K weighting resolution:0.005g,minimum weight:4g,density resolution:0.001g/cm3
• AU-120K,200K weighting resolution:0.001g,minimum weight:2g,density resolution:0.001g/cm3
• 900K,1200K,2000K,3000K weighting resolution:0.01g;minimum weight:5g;density resolution:0.001g/cm3
• K value range:9k,10k,11k,12k,13k,14k,15k,16k,17k,18k,19k,20k,21k,22k,23k,24k and % percentage content.
• Platinum content range:PT600,PT650,PT700,PT750,PT800,PT850,PT900,PT950,PT1000 and % percentage content.
• Silver content range:S600,S650,S700,S750,S800,S850,S900,S950,S1000 and % percentage content.
• The proportion of copper-silver for gold-silver-copper can be shifted cyclically with 9/1,8/2,7/3,6/4,5/5,4/6,3/7,2/8,1/9.the default setting is 7/3.

Measuring Procedure:

(1)Measure the weight in air firstly,press ENTER button.

(2)Place the sample into water to measure weight in water.Press ENTER button.display result.

Standard Accessories:

(1)Host,(2)Sink,(3)Measuring plate,(4)Tweezers,(5)Thermometer,(6)weight,(7)windproof dustproof cover(8)One set of measuring gold dust accessories(9)Power supply

Specification Table:

The difference between DH(E) series and AU series:

The difference is that AU series is our new brand product.DH(E) is our old and classic brand product.Compared with DH(E) series,AU series has been upgraded circuit board,application function of software;made progress on the structure of machine.,etc.
