DongGuan HongTuo Instrument Co.,Ltd
 |
| Place of Origin: | dongguan |
| Brand Name: | DahoMeter |
| Certification: | CE, FCC |
| Model Number: | DH-120T |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD499-USD1899 |
| Packaging Details: | 42 X 16 X 32cm |
| Delivery Time: | 2 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,other |
| Supply Ability: | 300 Set/Sets per Month |
| Customized: | Yes | Power Supply: | AC 100V - 240V |
|---|---|---|---|
| Density Resolution: | 0.0001g/cm3 | Maximum Weight: | 120g |
| Minimum Weight: | 0.0001g | RS - 232 Interface: | Yes |
| Calibration Before Delivery: | Yes | Warranty: | 2 Years;life-long Maintenance |
| After-sale Service Provided: | Yes | Function: | Solid And Liquid Density Meter |
| High Light: | density testing equipment,electronic density meter |
||

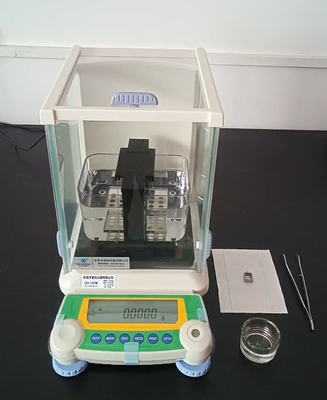

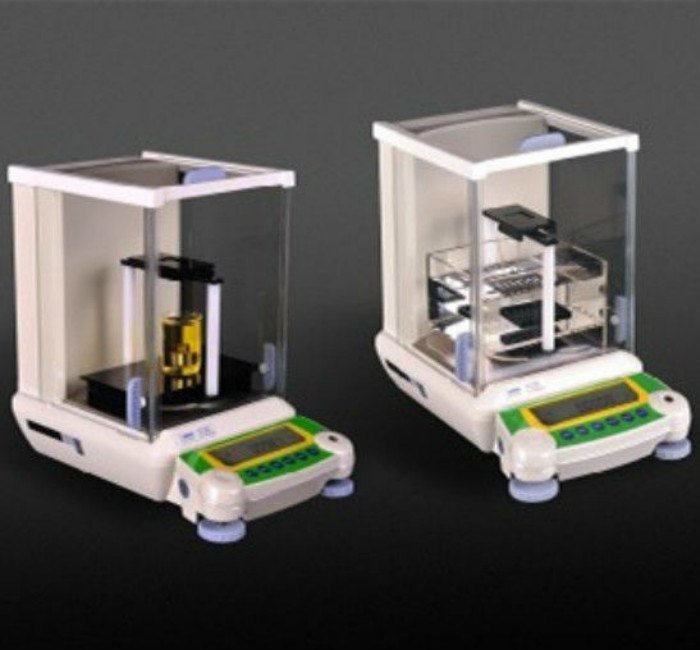

0.0001g High Precision Solids Density Meter , Liquids Density Meter
Application:
Quality management density measurement,base materials density researching,
mirco-products density measurement,high density products density testing,key laboratory science researching,materials researching,chemical researching,medical researcing.
Standards:
GB/T1033,GB/T2951,GB/T3850,GB/T533,GB/T208,GB/T5163,GB/T 1933,GB/T4196,GB/T4123,GB/T 611,GB/T11540,GB/T12206,GB/T5518
Adopt with Japan original imported host;high precision,high stability,completed aluminium alloy measuring board;transparent water tank;anti-corrosion;resistance to fall break;equip with liquids stainless measuring shelf,makes the whole operation more easier,speed,and convenient;only one step can read density value directly.RS-232C interface is included.
Specification:
Model:DH-120T
Density resolution: 0.0001 g/cm3
Maximum weight:120g
Minimum weight:0.0001g
Measuring range: 0.0001—99.9999g/cm3
Model:DH-200T
Density resolution: 0.0001 g/cm3
Maximum weight:200g
Minimum weight:0.0001g
Measuring range: 0.0001—99.9999g/cm3
Model:DH-1204T
Density resolution: 0.0001 g/cm3
Maximum weight:120g/42g
Minimum weight:0.0001g/0.00001g
Measuring range: 0.0001—99.9999g/cm3
Model:DH-2004T
Density resolution: 0.0001 g/cm3
Maximum weight:200g/82g
Minimum weight:0.0001g/0.00001g
Measuring range: 0.0001—99.9999g/cm3
Solids Function Features:
(1)Quick test the density of any solids products
(2)Micro-products and high density products also can be measured
(3)Density value can be displayed just through one operation procedure
(4)Both density more than 1g/cm3 and less than 1g/cm3 can be tested
(5)Function of automatic zero tracking
(6)Function of environment adjusting
(7)Function of actual water temperature compensation
(8)Not only water can be as medium but also other liquids.
(9)Installed the aluminum alloy components,the sink was anti-corrosive,and resistance to fall break
(10)Including RS-232C interface,PC and printer are available to connect.DE-40 printer can be choose to print testing data.
Liquids Function Features:
(1)Quick test the density of any liquids products
(2)High precision,easy operation,stable and durable
(3)Convenient to take samples.just need 50CC or more less
(4)No tedious rebugging and operation compared with Webster's balance method and pycnometer method
(5)Can coordinate operation with constant temperature water tank to measure specific gravity
(6)Easy to clean measuring cup.No limitation by the caliber of pycnometer.can be used repeatly.disposable measuring cup can be used as well
(7)Volatile liquid,corrosivity liquid,vicidity liquid,strong acid and alkaline can be measured quickly(can choose relevant accessories)

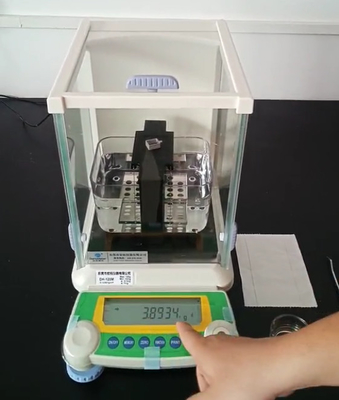

Solids Measuring Procedure:
(1)Place sample on testing board.measure weight in air.press MEMORY key.
(2)Place sample into water.measure weight in water.press MEMORY key.
Liquids Measuring Procedure:
(1)Place measuring cup filled with sample on testing board.press ENTER.deduct off weight of hook.Place standard weights on testing board.Press MEMORY key.
(2)Have standard weights hanged on the hook and submerge it into water totally.density value will be displayed.
Standard Accessories:
Host,Tweezer,Thermometer,Weights,Water Tank,Solids Measuring Board,Measuring Granule Accessories,Measuring Floating Accessories,Liquids Measuring Plate,Liquids Measuring Shelf,DE-20A Standard Liquids Measuring Accessories,Power Supply.
Specification Table:
| Brand | DahoMeter | |||||
| Model | DH-120T | DH-200T | DH-1204T | DH-2004T | ||
| Weight Range | 0.0001~120g | 0.0001~200g | 0.00001-42g/0.0001~120g | 0.00001-82g/0.0001~200g | ||
| Density Resolution | 0.0001 g/cm3 | |||||
| Density Range | 0.0001—99.9999g/cm3 | |||||
| Solids Model | Solids Measuring Type | density of any form solid:metal,rubber,plastic and particle,film,floating body,powder,foaming,heavy body,structure,tubing,panel,wood,sponge,glass. |
||||
| Measuring Mode | Archimedes principle | |||||
| Measuring Time | around 5 seconds | |||||
| Memory method | two operation procedures | |||||
| Measuring Shelf | high precision aluminum alloy special measuring shelf (Size:length 13.5cm×width5 cm×height11.6cm) | |||||
| Measuring Water | Completed transparent water tank(Size:length16.9cm×width9.8 cm×height8.3cm) | |||||
| Result Displaying | density,volumn,percentage | |||||
| Function Setting | water temperature setting,measuring medium density setting,density of main materials and minor materials setting | |||||
| Materials Mixture Percentage | function | Can read the purity percentage for the two blended type of materials | ||||
| setting | Can set density freely of the main materials and minor materials | |||||
| displaying | density value,percentage of main materials | |||||
| Liquids Model | Measuring Liquids Type | a:mobility liquid,vicidity liquid,volatile liquid,corrosivity liquid,high temperature liquid,suspension liquid,emulsion and so on. | ||||
| b:alcohol,scaling powder,essence,blood,sodium chloride,glycerol,electrolyte,diesel,refrigerating,hydrofluoric acid,dichloromethane,vitriol |
||||||
| Measuring Principle | Archimedes principle | |||||
| Measuring Mode | one group | |||||
| Measuring Time | real time testing | |||||
| Memory method | dynamic memory | |||||
| Result Displaying | density | |||||
| Measuring Shelf | stainless steel measuring shelf | |||||
| Function Setting | temperature setting,liquids density setting,setting of standard measuring weights weight in air and weight in water | |||||
| Result Verifying Method | distilled water verifying | |||||
| Calibration Method | single key calibration | |||||
| Output Method | standard interface RS-232C | |||||
| Standard Accessories | Host,Tweezer,Thermometer,Weights,Water Tank,Solids Measuring Board,Measuring Granule Accessories,Measuring Floating Accessories,Liquids Measuring Plate,Liquids Measuring Shelf,DE-20A Standard Liquids Measuring Accessories,Power Supply. | |||||
| Optional Accessories | (1)DE-40 printer,(2)DM-20B anti-corrosive liquids measuring accessory(3)DM-20A standard liquids measuring accessory | |||||
| Power Supply | AC100V-240V can choose the other international standards | |||||
