Four - Column Universal Testing Machine / Compression Deflection Tester For Sponge

Four - Column Universal Testing Machine / Compression Deflection Tester For Sponge

  • Four - Column Universal Testing Machine / Compression Deflection Tester For Sponge
Four - Column Universal Testing Machine / Compression Deflection Tester For Sponge
Product Details:
Place of Origin: dongguan
Brand Name: DahoMeter
Certification: CE, FCC
Model Number: WDW-5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wood standard exported package
Delivery Time: Shipped in 5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
Supply Ability: 300 Set/Sets per Monter
Contact Now
Detailed Product Description
Customized: Yes OEM Service: Yes
Stock: Yes Structure: Double Column
Usage: Compression Tester , Compression Deflection Test Maximum Force Load: 5kn
High Light:

universal tensile testing machine

,

universal tensile tester



Compression Tester , Compression Deflection Test , Compression Testing Equipment for Sponge





1. Application:



It is applicable for wide range of material for tension, compression, bending, shearing and low cycle

test. Suitable for metal, rubber, plastic, spring, textile, and components testing.

It is widely used in the corresponding industries, research and development, test institutes and

training centers etc.



2. Standard:



ASTM, ISO, DIN, GB and other international standards.



3. Main Technical Parameters:



Model WDW-5 WDW-5E
Max. Load 5 KN
Structure

Four-column Floor Model (Upper Is Compression And Lower

Is Tensile OR Upper Is Tensile And Lower Is Compression)

Control Method Computer Automatic Control
Load Accuracy 1 Class 0.5 Class
Load Range

2%~100% FS

(0.10KN~5KN)

0.2%~100% FS

(0.01KN~5KN)

Motor

TaiWan TECO

AC Servo Motor

Panasonic Motor,

Made In Japan

Sensor

High Precision Load Sensor,

Made In China

Import Sensor,

Made In USA

Resolution 1/300000
Measuring Range Of Deformation 2%~100%

Accuracy Indication Of

Deformation

≤±1%
Disp. Indicating Relative Error ≤±1%
Displacement Resolution 0.04um

Adjusting Range Of Control

Rate Of Load

0.005~5%FS/S

Control Precision Of Control

Rate Of Load

When rate < 0.05% FS/s, the precision is within ± 2% of setting value;

When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.

Adjustment Scope Of

Deformation Rate

0.005~5%FN/S
Accuracy Of Deformation Rate

Test Speed<0.05%FN/s, within the ±2% of the preset value,

Test Speed≥0.05%FN/s, within the ±0.5% of the preset value.

Adjusting Range Of

Displacement Rate

0.05~1000mm/min (Can be customized)

Control Precision Of

Displacement Rate

When rate < 0.5mm/min, within ± 1% of setting value;

When rate ≥ 0.5mm/min, within ± 0.5% of setting value.

Scope Of The Consistent Load

Deformation And Displacement

Control

0.5%~100%FS

Accuracy Of The Consistent Load
Deformation And Displacement

Control

Preset value≥10%FN, within the ±0.1% of preset value;

Preset value<10%FN, within the ±1% of preset value.

Tensile Space 800mm (Can be customized)
Compression Space 800mm (Can be customized)
Effective Spacing 400mm (Can be customized)
Load Cell Configuration

One PC (Max Load).

More load cells can be added according to customer requirement.

Extend Configuration

Large deformation extensometer,

High or low temperature test chamber, High temperature oven.

Power Supply AC 220V±10%, 50Hz (Can be customized)
Grips Wedge Type, Plate Type And Other Grips As Customers’ Demand
Dimension 740*420*1720mm
Weight 160 KG

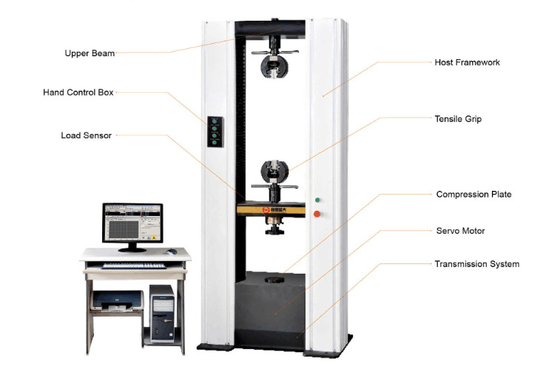

4. Main Unit Feature:



4.1 Adopt floor structure, High Stiffness, lower for tensile, upper for compression, upper for tensile,

lower for compression, double space. The beam is step less lifting.

4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of

the test force and deformation speed.

4.3 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid

sensor damaged due to the moving distance is too large.

4.4 The table, moving beams is made of high quality precision machining steel plate , not only

reduce the vibration generated by specimen fracture, but also improve the stiffness.

4.5 Three columns of mandatory orientation, make the main unit rigidity much improved, to further

ensure the repeatability of measurement.

4.6 Adopt bolt type grip installation, make the grip replace easier.

4.7 Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have

over-current, over-voltage, over speed, overload protection device.



5. Software Function:



5.1 Defined function: according to different types of users, different material properties, different

test standards,different languages,flexible setting the test program to meet the test requirements.

5.2 Input Function: Entry specimen parameters before the test, you can single input sample

parameter, you can also batch input sample parameters, you can modify the sample parameters

before the test, the specimen parameters can be modified after the test, fully satisfy your

operating habits.

5.3 Data processing query functions: fully equipped data query function, print function, the export

function to ensure the accuracy of the test data, reliability, real embody and reflect the nature

and characteristics of the material test data.

5.4 Curve analysis function: All the material properties can be reflected by the data curve, so the

powerful data curve analysis function can help you better mastery and understanding of the

material test properties, which is your best helper to analyze the material.



6. Software Feature:



6.1 Auto zero clearing: When test begin to start, the system auto zero clearing.

6.2 Auto calibration: System can automatically realize the value accuracy of the calibration.

6.3 Auto return: Finish test, the cross beam will auto return to the starting position.

6.4 Auto gear shifting (when choose classify gear test): According to the load size automatically

switch to the appropriate range, to ensure the accuracy of the test data.

6.5 Auto speed changing: The cross beam moving speed can auto chang during the test process

according to the preset program, also can manual change.

6.6 Auto saving: Adopting the the database management way, the test data and curve automatically

saved after the test.

6.7 Auto calculating: When finish test, automatic calculate elastic modulus, yield strength and the

percentage elongation stress, etc (Different test method,different analysis date),can auto analyze,

also be artificial correction analysis results, improve the accuracy of the analysis.

6.8 Display way: Dynamic display of data and curves with the testing process.

6.9 Result comparison: Multiple test curve can use different color superposition, reproduced,

enlarge, presenting comparison of a set of sample.

6.10 Curve choice: An choose Stress-strain, force-displacement, force-time, displacement-time,

and other curves to display and print; Can switch at any time to observe,zoom in and zoom out,

horizontal or vertical movement, real-time high speed sampling.

6.11 Test standard: Integrated with about 40 kinds of national standard or test method, can meet the

various test need of customers.

6.12 Test report: According to user required format to compile reports and can print bulk data.

6.13 Limit protection: With mechanical and Programmable two level limit protection function.

6.14 Overload protection: When the load exceeds the maximum file of 3-5%, automatic stop.

6.15 Other protection: With overload, over current, over voltage, displacement of the upper and

lower limit and emergency stop protection function .

Four - Column Universal Testing Machine / Compression Deflection Tester For Sponge 0
