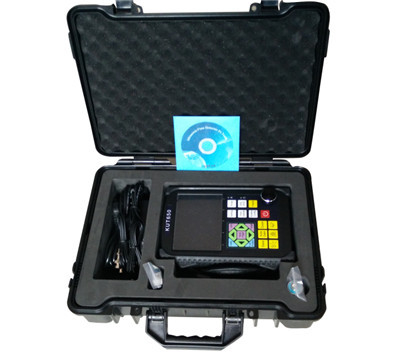

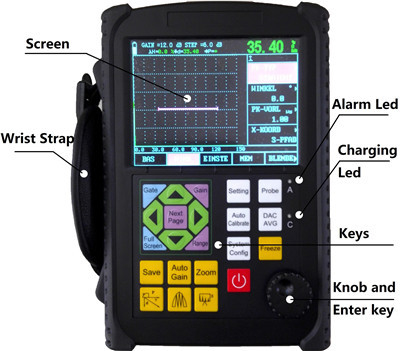

Handheld Automatic Non Destructive Testing Machine / Digital Ultrasonic Flaw Detector

Handheld Automatic Non Destructive Testing Machine / Digital Ultrasonic Flaw Detector
Handheld Automatic Non Destructive Testing Machine / Digital Ultrasonic Flaw Detector Handheld Automatic Non Destructive Testing Machine / Digital Ultrasonic Flaw Detector

Large Image :  Handheld Automatic Non Destructive Testing Machine / Digital Ultrasonic Flaw Detector

Product Details:
Place of Origin: DongGuan,China
Brand Name: DahoMeter
Model Number: KUT-650
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: USD999 to USD1999
Packaging Details: standard exporting package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Measuring Range(mm): 0 ~ 10000 Vertical Linearity Error: ≤3%
Horizontal Linearity Error: ≤0.1% Sensitivity Leavings: ≥62dB
Dynamic Range: ≥34dB Resolving Power: ≥36dB
High Light:

non destructive testing instruments

,

non destructive testing inspector



Automatic Calibration Industrial Ultrasonic Flaw Detection Equipment , Handheld Ultrasonic Flaw Detector





Automatic calibration , Automatic gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel





Features



1. Automatically display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

2. Automatically switch three staff gauge ((Depth d,level p,distance s);

3. Automatic calibration of transducer Zero-point, Angles, Front edge and material Velocity;

4. Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

5. 6dB DAC functions;

6. Standards of test for DAC is saved.

7. 500 independence setup, any criterion can be input freely, we can work in the scene without test block;

8. Big memory of 1000 A graph

9. Automated gain and gain scan;

10. Peak Hold and Peak Memory;

11. B scan;

12. AWS D1.1

13. Automated make video of test process and play; use upan,the length of video is unlimited.

14. Powerful pc software and reports can be export to excel;

15. Li battery, continue working time up to 10 hours;

16. The embeded software can be online updated;





Other assistant function



Display freeze;

Automated echo degree;

Angles and K-value;

Lock and unlock function of system parameters;

Electronic clock calendar ;

Two gates setting and alarm indication;

Gate and DAC alarm;

Specifications









KUT650
Measuring range 0-10000mm
Gain 0-120dB
D-Delay D-Delay -20µs~+3400µs
Resolution 0.1mm(2.5mm~100mm) 1mm(>100)
P-Delay 0µs~99.99µs
Sound speed 1000 m/s~15000m/s
Temperature 10℃~50℃
Humidity 20%~90%RH
Power Li-battery
Working time >10 hours
Display LED true color
Size 238mm*155mm*46mm
Weight 1kg



Handheld Automatic Non Destructive Testing Machine / Digital Ultrasonic Flaw Detector 0
