ASTM D 1175 ASTM-D 3389 Electronic Universal Taber Wear Abrasion Testing Machine With LCD Display
Application:
The tester is used for cloth, paper, paints, plywood, leather, tile, glass, rubber, etc .The testing method is executed to make specimen abraded by a pair of grinding wheels under the specified load .The weight of abrasion loss is the difference of weight for specimens before and after testing.
Standard: DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 5470, ASTM D 1175, ASTM D1044.
Specification:
| Testing sheet | inner diameter(D)3mm |
| Abrasion wheel: | φ2"(Max.45mm)(W)1/2" |
| Centre interval for abrasion wheel | 63.5mm |
| Interval for abrasion wheel and testing sheet: | 37~38mm |
| Rotating speed | 60-72r/min(can be adjustable) |
| Load | 250,500,750g |
| Counter | LED 0~999,9999 |
| Distance from testing sheet to suction inlet | 3mm |
| Dimension: | 45 x 35 x 42cm |
| Weight | 30kg |
| Power supply: | AC 220V,10A |

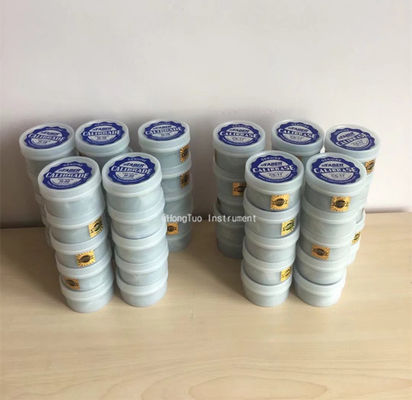

| One pair of imported grinding wheel H-18;One set of cleaner | |
