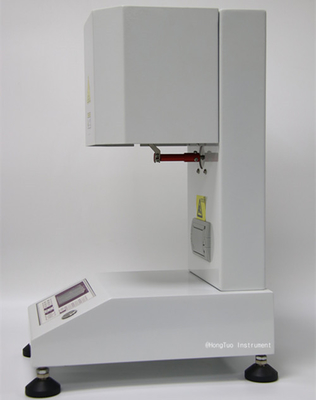

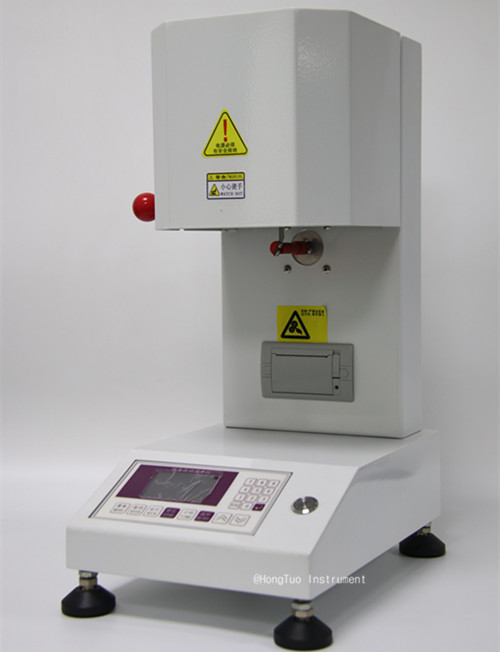

High Precision Automatic Melt Flow Index Tester For Measuring Melt Mass Flow Rate

High Precision Automatic Melt Flow Indexer , Electronic Flow Rate Meter , MFI Tester , MFR MVR Testing Machine

Product introduction

Melt Flow Rate Instrument MIP meets the demands of GB/T3682-2000, as well as ISO1133-97, ASTM D1238,JIS K7210 and other standards involving main parameters. The melt flow indexer is suitable for measuring melt mass flow rate(MFR) and melt volume flow rate(MVR) of plastic materials such as polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylic, POM, fluorine plastic, polycarbonate. It is widely used in plastic production, plastic products, petrochemical industries and related institutions, research institutes and inspection departments.

Software features

A. High-precision color controller in English and Chinese; special customized membrane keypad; incomparable advantages in the control precision and service life.

B. Automatic cutting, accurately up to 0.1s; setting the cutting time and the number of cutting freely.

C. Built-in mini printer to print the test data

D. Dual temperature control system:double imported heating coil, double imported PT100 platinum resistance sensor, independent temperature control of the upper and lower sections, to improve the test accuracy and stability of temperature.

E. Increasing displacement sensor, able to testing MVR , the precision up to 0.001mm.

Test mode

MFR or MVR

Display mode

Color LCD in English

Performance standards

Temperature range:normal temperature to -400℃

Temperature fluctuation:±0.2℃

Temperature uniformity:±0.5℃

Temperature display resolution:0.1℃

Time display resolution:0.1S

cylinder diameter:Φ2.095±0.005mm

The length of the discharge hole:8.000±0.025mm

Charging cylinder diameter:Φ9.550±0.025mm

Weight accuracy:±0.5%

Output mode: automatically printing via mini printer

Cutting mode:cutting by hand or automatically

Test load:total 8 grades,8 sets of weight

Power voltage:AC220V±10% 50HZ
