Place of Origin: | Dongguan China |
Brand Name: | DahoMeter |
Model Number: | HT-5D-CM |
Minimum Order Quantity: | one set |
---|---|
Price: | USD999 to USD1999 |
Packaging Details: | standard exporting wooden package |
Delivery Time: | 3 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per month |
Displaying Method: | LCD In English | Angle Sensor: | Omron Encoder |
---|---|---|---|
Impact Speed: | 2.9 M/s ,3.5m/s | Testing Before Delivery: | Yes |
After-sale Customer Service: | Yes | Product Name: | Izod And Charpy Impact Tester |
Highlight: | plastic testing instruments,plastic pipe testing equipment |

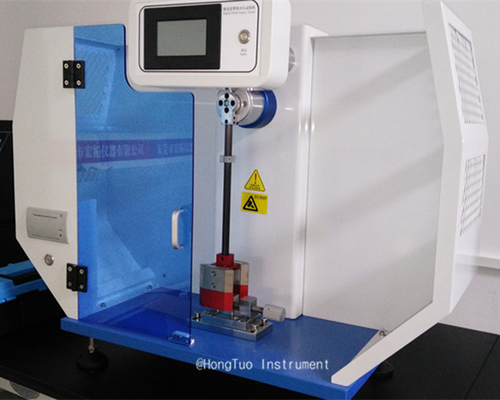

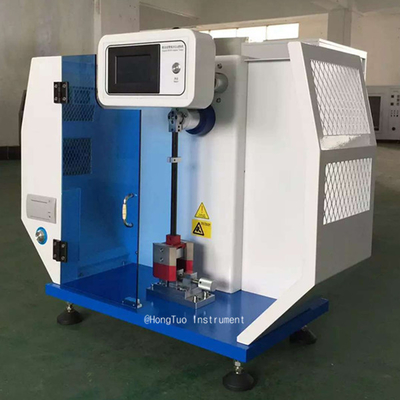

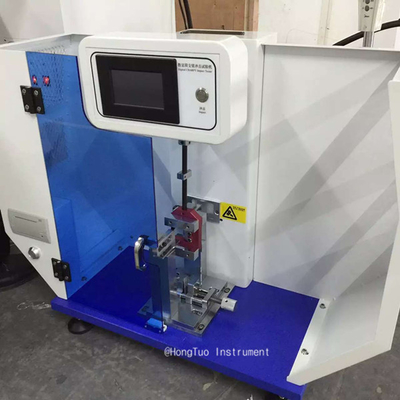

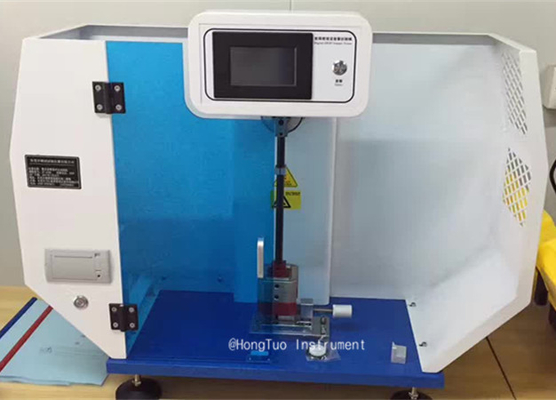

Digital Plastic Izod & Charp Pendulum Impact Strength Test Equipment / Machine / Apparatus / Method
Usage: Test the impact toughness of the non-metallic materials.
Suitable material: plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast
stone, plastic appliance and insulation materials.
Applicable zone: scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.
Performance standards
ISO180—2000 Determination of Plastics - Hard Materials Izod Impact Strength
GB/T1843—2008 Rigid Plastic Izod Impact Test Method
JB/T8761—1998 Plastics Izod Impact Testing Machine
ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum
Product Features
A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;
B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.
C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;
D. Aerodynamic impact hammer and FAG Bearings greatly reduce mechanical friction losses
E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;
F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.
G. Built-in mini printer to print the test data
Technical Specifications
Model | HT-5D-CM | HT-25D-CM | HT-50D-CM |
Pendulum energy | 1J,2J,2.75J,4J, 5.5J | 11J,22J,25J | 22J,50J |
Impact speed | 2.9 m/s ,3.5m/s | ||
Pendulum | 150° | ||
The distance of pendulum center to impact blade | 221mm/335m/380mm | ||
The distance of impact blade to clamp upper flat | 22mm,40mm,60mm,70mm,95mm | ||
Blade radius | R=0.8mm, R=2mm |
