Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | dongguan |
| Brand Name: | DahoMeter |
| Certification: | CE， FCC |
| Model Number: | DH-DJ-9S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD499-USD999 |
| Packaging Details: | Standard exported package for Digital Rotational Brookfield Viscometer / Viscosimeter Testing Instrument |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,other |
| Supply Ability: | 300 Set/Sets per Month |
| Usage: | Brookfield Viscosity Tester | Customized: | Yes |
|---|---|---|---|
| Testing Before Delivery: | Yes | After-sale Service Provided: | Yes |
| LCD Displaying: | Yes | Measuring Error(Newtonian Liquid): | ±0.5% |
| Repetitive Error(Newtonian Liquid): | ±0.25% | ||
| High Light: | viscosity measurement equipment,electronic viscosity meter |
||

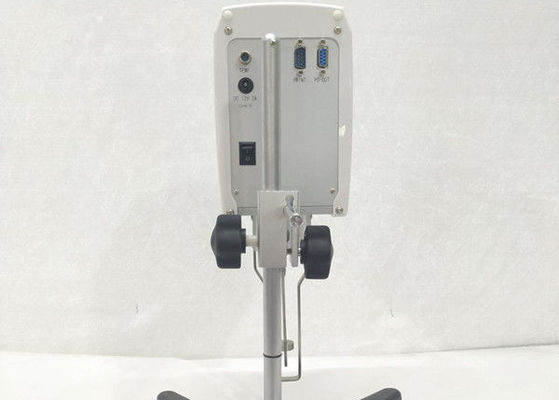

Digital Portable Brookfield Paint Viscosity Tester / Gauge / Apparatus / Test Method
DJ series digital viscometer is the instrument that has been adopt the most advanced newest mirco-computer drive technology,imported stepping motor,and LCD displaying.It has the function of stable rotate speed,high accuracy,easy operation,error alarm and automatic scanning;It can provide the best combination for rotor and rotate speed;Automatically displaying the maximum measuring range for the combination chosen;Screen can directly display the following data:viscosity,rotate speed,percentage torque,rotor model and temperature for the testing objects.
DJ series digital viscometer can measure the absolute viscosity for newtonian liquids and apparent viscosity for non-newtonian liquids.If choose viscometer data processing software,can analyze the simple rheological property for non-newtonian liquids.
Application:
Grease,paint,coating,sizing agent,spinning,food,medicine,cementing compound,cosmetic.,etc.
Features:
1. The measurement data is displayed directly without the need of secondary calculations.
2. The use of 16-bit microcomputer processor as the core of the stepping power with high subdivision drive, digital LCD with blue backlight function.
3. Liquid crystal display, using programmable motor control, changes in the frequency of electricity will not affect the measurement accuracy.
4. The optional low viscosity “ULR” can be used to accurately test the viscosity value in the range of 1-20 mpa.s.
Technical Specification:
| Model | NDJ-5S | NDJ-9S | NDJ-8S |
| Displaying | Back light Displaying in English | ||
| Automatic Scanning Function | Automatically recommend the best combination for rotor and rotate speed.easy operation,accurate testing result | ||
| Automatic Range Displaying | Automatically displaying the measurable maximum range for the combination of rotor and rotate speed | ||
| Rotate Speed(r/min) | 6/12/30/60 | 0.3/0.6/1.5/3/6/12/30/60 | |
| Rotor | Standard package 1,2,3,4 (Can choose 0# rotor to measure the lowest viscosity less than 10) | ||
| Measuring Range(mPa.s) | 1.0-100,000 | 1.0~2,000,000 | |
| Measuring Error(Newtonian liquid) | ±1% | ±0.5% | ±1% |
| Repetitive Error(Newtonian liquid) | ±0.5% | ±0.25% | ±0.5% |
| Temperature Measuring | yes | ||
| Constant Temperature Parts | Optional Accessory | ||
| Data Output Interface | Yes | ||
| Data Processing Software | Optional Accessory | Optional Accessory | Optional Accessory |
| Overall Dimension | 300 × 300 × 450(mm) | ||
