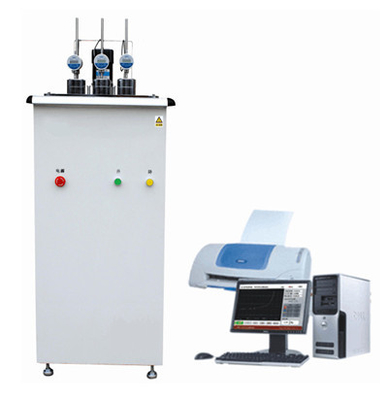

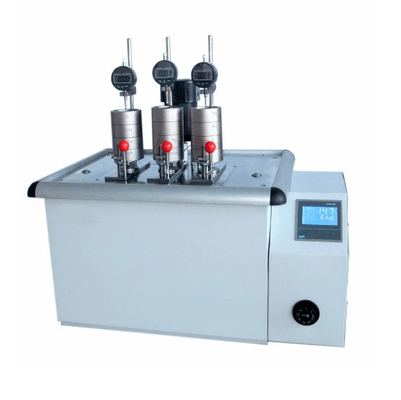

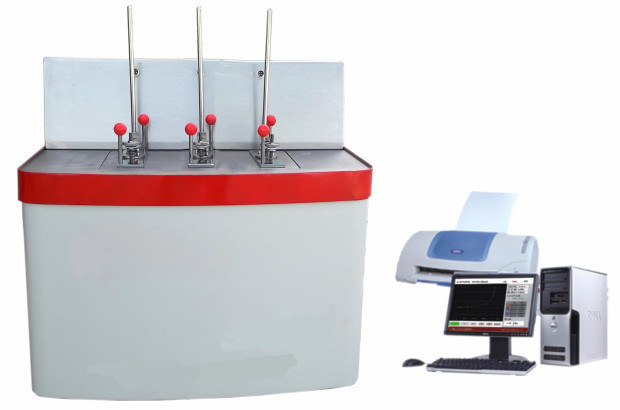

Computer Controlled HDT / Vicat Softening Point Apparatus Heat Distortion Testing Machine

Suitable for measuring the HDT and vicat softening point temperature of plastic,hard rubber,nylon,electrical insulating material,macro fiber reinforced composite material,high strength thermoset laminate material material.etc.

Controled by PC;detected deformation by displacement sensor;real-time curve drawing;processing measuring data directly on PC;measuring data can be output to office software and be eidited.

Standards:

GB/T 1633,GB/T 1634,GB/T 8802,ISO 2507,ISO 75,ISO 306,ASTMD 1525,ASTMD 648

Parameter:

• Controlling temperature range:room temperature to 300℃
• Maximum temperature error:±0.5℃
• Rate of temperature increasing:50℃/h,120℃/h
• Temperature measuring point:1
• Deformation measuring range:-0.1mm to 1.1mm
• Maxinum deformation error:±0.01mm
• Medium:methylsilicone oil
• Specimen supporting space:64mm;100mm
• Cooling method:natural cooling if more than 150℃;water cooling or natural cooling if less than 150℃
• Function of ceiling temperature protection
• Specimen holder:3 pieces
• Controlling method:singlechip and PC distribute control system
• Dimension:880mm*580mm*1400mm
• Space required:1m for front and back side;0.6m for left and right side
• Power supply:4500VA 220VAC 50HZ
