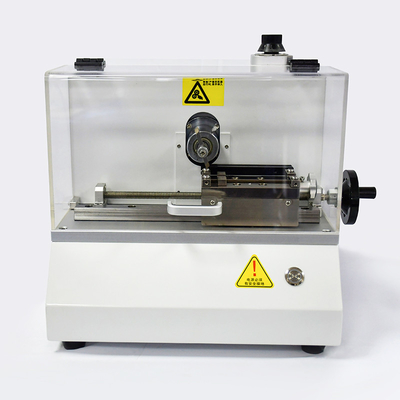

Electronic Notch Cutting Machine / Impact Specimen Notcher For Izod Charpy

Electronic Notch Cutting Machine / Instrument / Equipment / Device / Apparatus , Impact Specimen Notcher for Izod Charpy

1.Product Model:HT-1600-EL

2.Application Field:

The electronic notching machine is used for the sample preparation of the non-metallic material when it is did the impact toughness testing by izod impact tester or the charpy impact tester.It can clamp 20 samples at a time, and the processing notch is more than 60 per 10 minutes. The notch size is accurate and the efficiency is high, which greatly reduces the intensity of operation.

3.Basic Standard:

(1)ISO179—2010 Plastic Determination of impact properties of simply supported beams

The 1st part:Non-instrumental impact test；

(2)German version EN ISO 179-1:2010；

(3)ISO180—2001ISO 180-2000 Plastic--Determination of Izod impact strength；

(4)GB/T1043-2008 Plastic Determination of impact properties of simply supported beams

The 1st part :Non-instrument impact test；

(5)GB/T1843—2008 Plastic Determination of impact strength of cantilever beam

4.Specifications:

1.Workbench stroke:＞160mm

2.Feed speed:30mm/min

3.Sample type:Ⅰmodel

4.Notch type: according to tool specifications

A Model 45°±1° R=0.25±0.025mm

B Model 45°±1° R=1.0±0.025mm

C1 Model Notch thickness :0.8±0.1mm

C2 Model Notch thickness:2.0±0.2mm

5.Feed amount: according to the standard

6.Outer Dimension:600mm×270mm×300mm

7.Power supply voltage: 220V, single-phase three-wire system
