PLC Touch Screen Small Flat Vulcanizing Machine For PE Plastic 5-30 Ton Capacity

PLC Touch Screen Small Flat Vulcanizing Machine For PE Plastic 5-30 Ton Capacity

    • PLC Touch Screen Small Flat Vulcanizing Machine For PE Plastic 5-30 Ton Capacity
    • PLC Touch Screen Small Flat Vulcanizing Machine For PE Plastic 5-30 Ton Capacity
  • PLC Touch Screen Small Flat Vulcanizing Machine For PE Plastic 5-30 Ton Capacity

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: DH-FV-01

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exported package
    Delivery Time: 5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Capacity: 5-30ton (adjustable) Temperature Range: Normal Temperature ~ 250 ° C
    Temperature Accuracy: ± 0.5 ° C Temperature Controller: PLC Touch Screen
    Testing Before Delivery: Yes After-sale Customer Service: Yes
    High Light:

    universal tensile testing machine

    ,

    universal tensile tester



    Small Flat Vulcanizing Machine / Device / Equipment / Apparatus / Instrument for PE Plastic





    1.Introduction

    This series of flat vulcanizing machines are used in the main equipment for pressing and forming various rubber model products and non-model products. They can also be used to suppress all kinds of thermosetting plastics and foaming rubber and plastic products. With independent power mechanism and electrical system, centralized control with buttons. The working pressure and heating temperature can be adjusted within a certain range. This model is divided into manual and semi-automatic.



    2.Technical Specification

    1).Capacity: 5-30ton (adjustable)

    2).Temperature range: normal temperature ~ 250 ° C

    3).Temperature accuracy: ± 0.5 ° C

    4).Temperature controller: PLC touch screen

    5).Temperature control mode: PLC touch screen

    6).Heating: electric heating tube heating

    7).Working mode: electric heating. Heating method: electric heating.

    8).Heating time: about 15min from room temperature to 160 °C (heating speed adjustable)

    9).Timer: PLC display, 0.01S ~ 999min ~ 999hr (adjustable)

    10).Hot plate: 350 × 350mm (specially treated high hardness steel plate) electric heating water cooling.

    11).Exhaust function: low pressure automatic exhaust one minute 3 to 10 times adjustable

    12).Hydraulic system: proportional hydraulic flow closed loop control system, GPY oil pump (made in Japan) drives high-performance electro-hydraulic with high-precision non-resistance cylinder piston to perform equal-rate control mode (stroke height can be set independently) with automatic pressure Compensation function, pressurization time can be preset, load force is strong, lifting is stable, automatic pressurization, pressure holding, pressure relief

    13).Cylinder stroke: Max 300mm

    14).Cylinder speed: 11mm / s

    15).Pressure table: 0 ~ 200kg / sq.cm

    16).Volume: (W × D × H) 1400 × 750 × 1460 mm

    17).Power: 3 ∮, AC220V, 15A

    18).Weight: about 350kg



    3.Operation Method

    1). First adjust the test machine horizontally, and use the level on the base of the machine, and adjust the basic screw according to the level indicator to make it level (adjust when installing the machine or moving the machine).

    2). Start the main power switch and let the power supply pass through the control panels of the machine.

    3). Set the test temperature.

    4). Set the temperature of the upper, middle upper, middle lower and lower molds according to the requirements of the materials. After the temperature reaches the set temperature, open the cylinder door and place the stainless steel plate and the sample.

    5). Start the test button to start the test on the hydraulic cylinder (do not adjust the pressure and speed of the hydraulic system).

    6). The system automatically resets after the set time is reached.

    7). Observe the sample and the test is over.

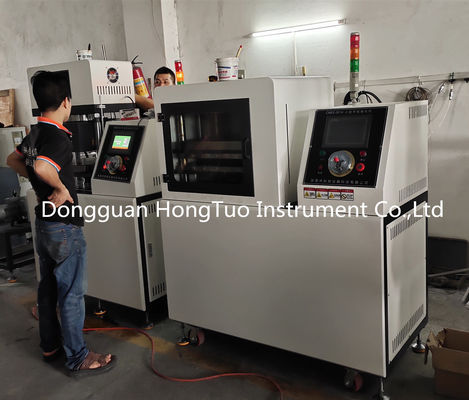

    PLC Touch Screen Small Flat Vulcanizing Machine For PE Plastic 5-30 Ton Capacity 0
