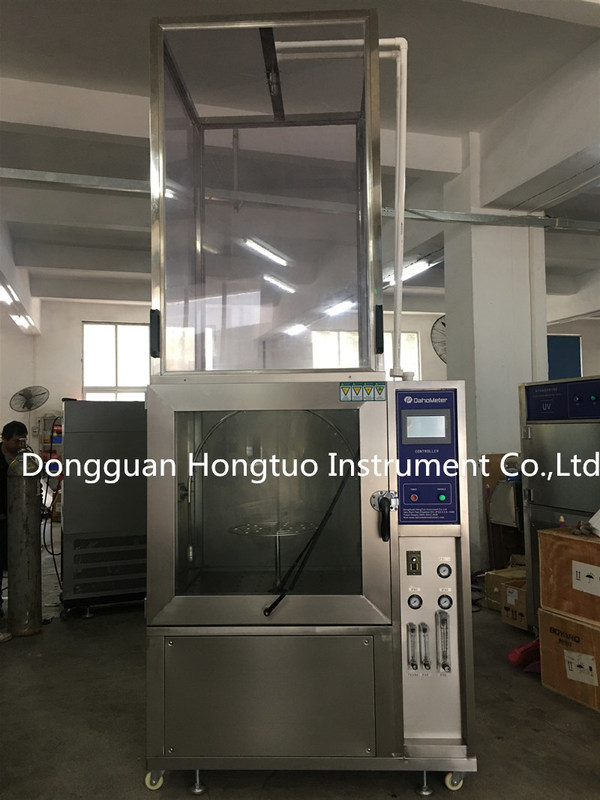

Automatic IPX3 IPX4 IPX5 IPX6 Environment Simulated Water Shower Rain Spray Testing Chamber For Waterproof Testing

Automatic IPX3 IPX4 IPX5 IPX6 Environment Simulated Water Shower Rain Spray Testing Chamber For Waterproof Testing

This product meets GB 2423.38-90 , GB / T10485-2007, strictly according to the protection of IPX3...IPX4...IPX5...IPX6... grades of GB / T4942.2-93, GB 4208—93, GB 4706, GB 7000 and other corresponding national standards and other relevant technical parameters.Can carry out water test specified by corresponding standards.

In accordance with IEC60529: 2001

Specification:

Name: IPX3/4/5/6 rain test chamber

Model number: DH-IPX3.4.5.6-1000

Internal dimensions: W1000 X H1000 x D1000mm (W stands for width, H stands for height, D stands for depth)

Weight: about 300kg

Power source: AC380V three-phase 50HZ

Technical Parameters

Test range: IEC60529 IPX3-IPX4-IPX5-IPX6

Water temperature range: The spray water level is the ambient temperature.

Spray method: IPX3-IPX4 pendulum rain, IPX5-IPX6 spray rain

Spray flow: IPX3, X4 water flow per hole 0.07L / min

IPX5: 12.5 L / min ± 5% IPX6: 100 L / min ± 5%

Swing tube: semi-circular swing tube 180 °

Swing tube radius: R300 mm

Swing tube inner diameter: ∮16mm

Swing tube swing: 90 ° front and back, the angle can be arbitrarily set within a total range of 180°

Spray pendulum tube cycle: 1 ～ 20 times / minute adjustable

Nozzle placement: The nozzles are distributed on 90 ° arcs on both sides of the vertical plane.

Nozzle pitch: 50mm

Nozzle aperture: IPX3, X4: 0.4mm IPX5: 6.3mm IPX6: 12.5mm

Sample turntable size: ∮350mm

Speed of sample turntable: 1 ～ 20r / min adjustable

Sample carousel load: 20kg
