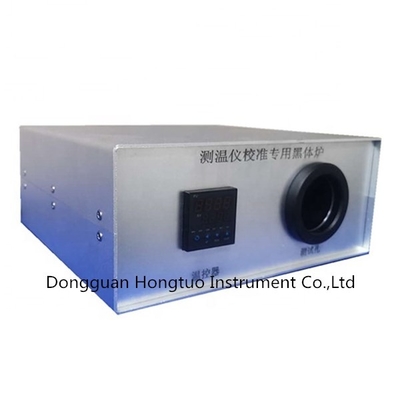

Calibration Blackbody Furnace For Clinical Thermometer , High Emissivity Temperature Calibration Device

Calibration Blackbody Furnace For Clinical Thermometer , High Emissivity Temperature Calibration Device

  • Calibration Blackbody Furnace For Clinical Thermometer , High Emissivity Temperature Calibration Device
  • Calibration Blackbody Furnace For Clinical Thermometer , High Emissivity Temperature Calibration Device
Calibration Blackbody Furnace For Clinical Thermometer , High Emissivity Temperature Calibration Device
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-BF-01
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Measure Range: 30~50℃ Temp Resolution: 0.01℃
Cavity Diameter: Φ56mm Cavity Depth: 50mm
Product Name: Black Body Furnace Temperature Calibrator After-sale Customer Service: Yes
Highlight:

universal tensile testing machine

,

universal tensile tester



High Quality Calibration Use Blackbody Furnace for Clinical Thermometer, High Emissivity Temperature Calibration Device





Application:

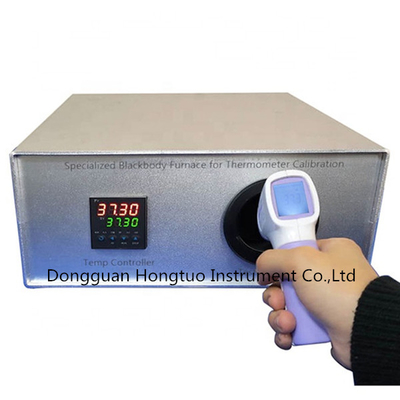

Infrared forehead temperature gun,Infrared ear temperature gun,Portable infrared thermometer,Medical thermometer,Infrared body surface screening instrument





Summary:



A precision blackbody (black body) is a controlled source of thermal radiation used to calibrate infrared radiation thermometers (pyrometers), thermal imagers and radiation heat flux gauges and radiometers. It is our ZONHOW R&D and manufactured product which is special used in calibration for Infrared ear temperature gun, forehead temperature gun and medical thermometer. It can also be used for the calibration of infrared body surface screening instrument. Through our main R&D of the temperature cycle system, plus the new materials, the emissivity can reach more than 0.99.



This black body source has been introduced to meet the demand for a simple, cost-effective, but high accuracy calibrator for the calibration of thermal imagers and infrared thermometers used at temperatures near ambient.

A 56mm diameter, ridged plate is heated or cooled with an internal solid-state thermoelectric heat pump. The temperature of the plate can be set from 30°C to 50°C, to a resolution of 0.01°C.





Features:



1) Emissivity: more than 0.99, isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed with the spectrum.



2) Novel design, simple operation



3) Adapt automatic temperature control method, safe and reliable, fast temperature rise and good temperature stability.



4) Easy to operate, Small size and light weight, easy to carry. Suitable not only for laboratory calibration, but also for field calibration.



5) Display the measured value, set value and parameter setting with double row digits. New technology, high precision, multi - function and strong anti - interference ability.



Specifications:



Item Black Body Furnace for Calibration of Infrared Thermometer
Measure Range 30~50℃
Temp Resolution 0.01℃
Cavity Diameter Φ56mm
Cavity Depth 50mm
Emissivity ≥0.99
Temp Stability ±0.1℃/30min
Temp Uniformity ±0.1C°
Power 220V AC 50HZ
Weight Approx 3.0Kg
