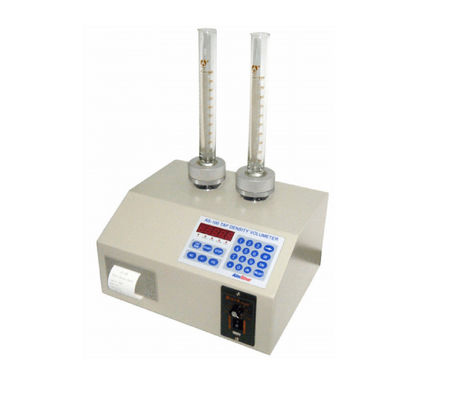

2 Channel Chmical Powder Materials Powder Tap Density Tester

2-channel Chmical Powder Materials Powder Tap Density Tester

DY-100A,B,C Powder Density Tester

Tap density definition
According to the standard where a powder sample fills into a vessel and the vessel is vibrated at certain amplitude and frequency, this process can help to remove air from the powders. After reaching the required vibration time, the sample is flatten to the vessel brim and the ratio of the powder mass to the volume of the vessel is defined as tap density. Tap density indicates the mass.

Introduction:

DY-100A,B,C Powder density tester is based on GB/T5162-2006/ISO3953:1993(tap density measuring of metal powder).For non-metallic powder,This instrument extended several functions.such as"vibration amplitude" from 3m standard extended to 1mm-15mm;"vibration frequency"from 100-300 times per minute extended to

0-300 times per minute."vibration times"from 3000 times standard extended to 0-99999 times.All of them can be setup freely.

DY-100A,B,C Powder density tester consist of adjustable-speed motor,vibration

assembly,micro-computer and micro printer.,etc.It has the feature of compact

structure,stable,and easy operation.,etc.

Specification:

• Weight of testing object:<=500.00g
• Volume of testing object:<=250.00ml(standard accessory including

25ml,50ml,100ml,250ml measuring cylinder)

• Single vibration times:<=0-99999 times(the result will come out as bulk density when input zero times)
• Allowable motor force:0.86 N.m.
• Vibration frequency:maximum 300 round per minute(0-300 round per minute is adjustable,USA pharmacopeia standard is 300 round per minute)
• Vibration amplitude:maximum 15mm(1mm-15mm is adjustable,International standard is 3mm)
• Repeatability error:<=1%
• Accuracy error:<=1%

Features:

1.Drop Height-Easily Adjustment

The drop height is important for a tap density tester in order to meet different international standards.This tap density tester uses default 3mm height and some tapping washers in specific height to reach 14mm.They changes easily without opening the cover.

2.Working Panel-Intuitive

The intuitive LED and membrane working panel brings operator and easy and fast operation.Accurate to 4 decimals.Automatically saving all test information.Operator simply inputs the desired data and press start to test.

3.Rpm-Easily Adjustment

The rpm is also important for a tap density tester.This instrument uses a speed control to realize 250rpm and 300 rpm.The motor is default 300 rpm,just tun the knob and reach the right percentage to shift to 250rpm.

4.Analysis Result-Easily Printed

Integrated micro printer prints the test data after test including Sample No,weight,volume,tap number,tap density and operator.

5.Cover-Easily to Clean

The outer surface is plastic coated,it is strong and resistant to any powders non-corrosive or corrosive.It makes for the cleaning procedure as well as a longer working life.

FAQ:

1.Quality Insurance

We guarantee this instrument for one year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster

2.After-sales Service

a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distribute in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646

3.Shipping

Sea shippment
Air shippment
International Express:DHL/UPS/FEDEX/TNT
Train shipment
Road shipment
We ill choose the best way to ship the items ASAP

We are the original manufacturer for density tester,DahoMeter and Quarrz is our own brand.the model starts with DH,or AU,or KS is belongs to us generally.

5.Why choose us

We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field for almost 13 years.
b.Professional researching and technology team.
c.Customer service team.
