Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | Dongguan China |
| Brand Name: | DahoMeter |
| Certification: | ISO,SGS |
| Model Number: | KR-110 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard exporting package |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 sets per month |
| Name: | Digital Display High Accuracy Surface Roughness Tester Price For Testing | 4 Testing Parameters: | Ra, Rz, Rq, Rt; |
|---|---|---|---|
| Measuring Range: | Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm | Sample Length: | 0.25, 0.80, 2.50mm |
| Evaluation Length: | 1.25, 4.0, 5.0mm | Keyword: | Surface Roughness Tester Price,surface Roughness Tester |
| Warranty: | One Year,life-long Maintenance | Stroke Length: | 6mm |
| Indication Accuracy: | 0.01μm | Stocks: | 12 Sets Surface Roughness Tester In Stocks |
| Highlight: | 50.0μm Surface Roughness Tester,1.25MM Surface Roughness Tester |
||

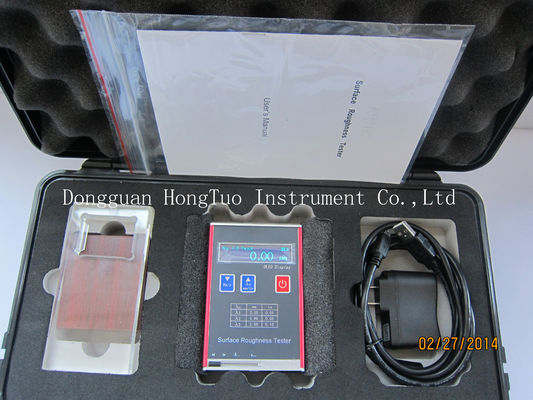

Digital Display High Accuracy Surface Roughness Tester Price For Testing
TECHNICAL DATA
| 4 Testing Parameters | Ra, Rz, Rq, Rt; |
| Measuring Range | Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm |
| Sample Length | 0.25, 0.80, 2.50mm |
| Evaluation Length | 1.25, 4.0, 5.0mm |
| Stroke Length | 6mm |
| Indication Accuracy | 0.01μm |
| Indication Error | ≤(±15)% |
| Variability | <12% |
| Stylus Static Force: | ≤ 0.016N |
| Force Measuring Rate of Change | ≤ 800N/m |
| Power | Rechargeable Li-battery |
| Relative Humidity | <90% |
| Working Temperature | -20°C~40°C |
| Size | 106mmx70mmx24mm |
| Weight of Host | 0.2kg |
MAIN FEATURE
*Ra, Rz, Rq, Rt 4 testing parameters, suitable for more applications.
*It could test ex-circle, flat surface, conical surface and also test groove larger than 80*30mm;
*Large measuring range suitable for most materials, both metal and non-metallic surface;
*Using high-speed DSP processor for data processing and calculation, quick measurement and computation speed;
*Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly;
*Liquid crystal display wide temperature using OLED display, high brightness, suitable for various occasions;
*The lithium ion rechargeable battery, can work for a long time, no memory effect, long battery life;
* Using a dedicated charger or computer USB port for charging, can work during charging, quick and convenient;
*Real-time monitoring of lithium battery power and display, remind users to charge;
*Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use;
*Support OEM Service;
*Pocket-size & economically price;
